W
IRING FROM I
The inputs and outputs to the codec are unbalanced. We recommend keeping the cable
from the Vortex device as short as possible to avoid any common-mode signals that may
corrupt the audio.
I
P
NPUT TO I
OWER FROM

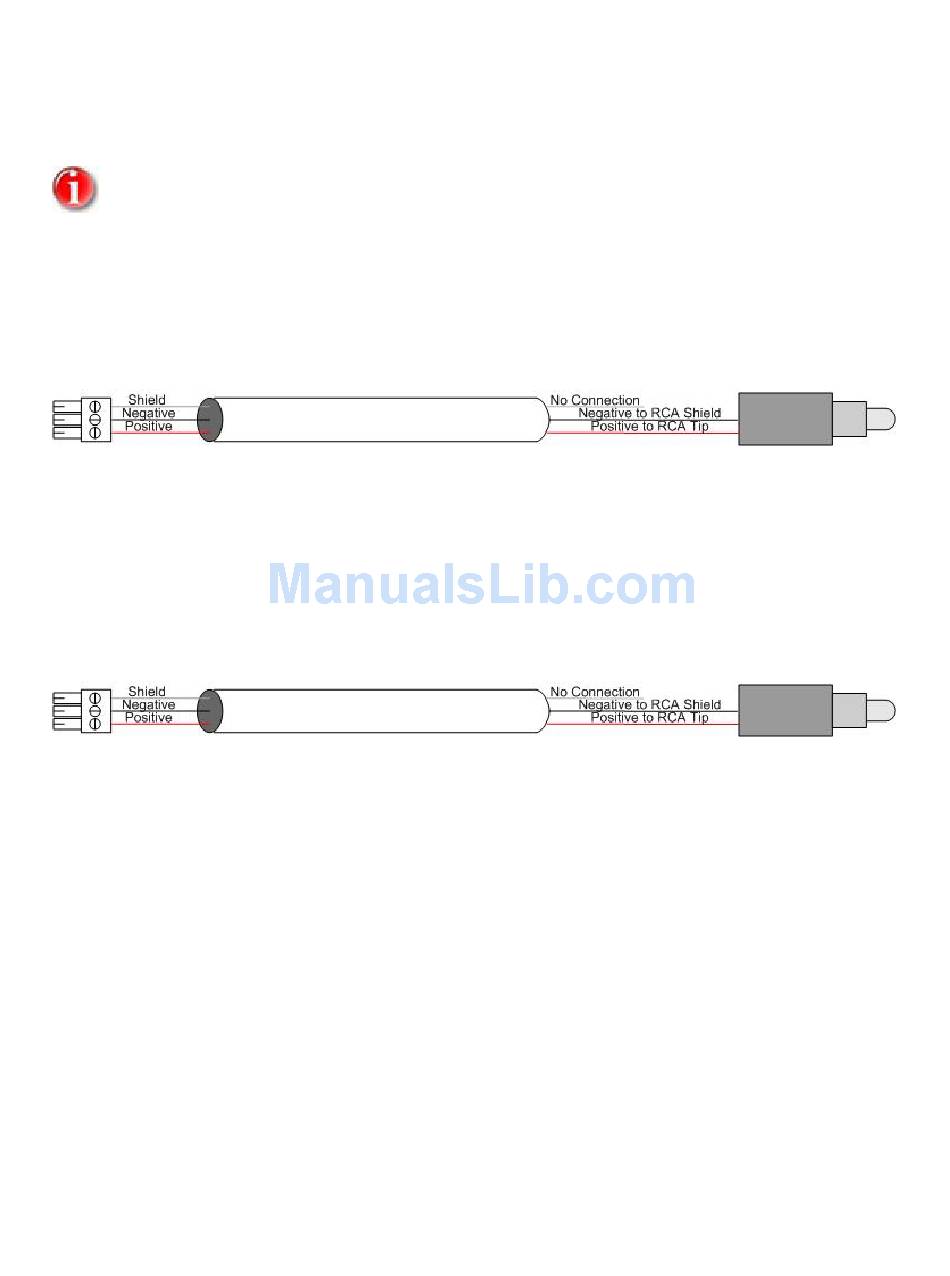

Connect the Positive conductor of the Vortex device to the Tip of the RCA connector and the Negative
conductor of the Vortex device to Shield of the RCA connector.
The shield of the cable is not connected.
O
P
UTPUT OF I
OWER TO
Connect the Positive conductor of the Vortex device to the Tip of the RCA connector and the Negative
conductor of the Vortex device to Shield of the RCA connector.
The shield of the cable is not connected.
P
OWER TO
O
V
UTPUT OF
ORTEX
I
V
D
NPUT OF
ORTEX
V
D
ORTEX
EVICE
EVICE
27
