Chapter 3 Getting Started
3.1 Basic Installation
This section describes all the equipment required to program and operate the GV-AI System
V2.
2
1. Connect the mouse and keyboard to any of the USB ports or the PS/2 port.
2. Using the supplied power cord, connect one end to the AC input and the other end to the
power outlet.
3. Using the HDMI / DisplayPort / VGA cable supplied by the monitor manufacturer, connect
up to 3 monitors for simultaneous displays.
4. Using the RJ-45 cable, connect one end to the Ethernet port and the other end to Network.
Once the above hardware is properly connected, press the Power button on the front panel to
start the system. It takes about 1 minute for startup.
3
1

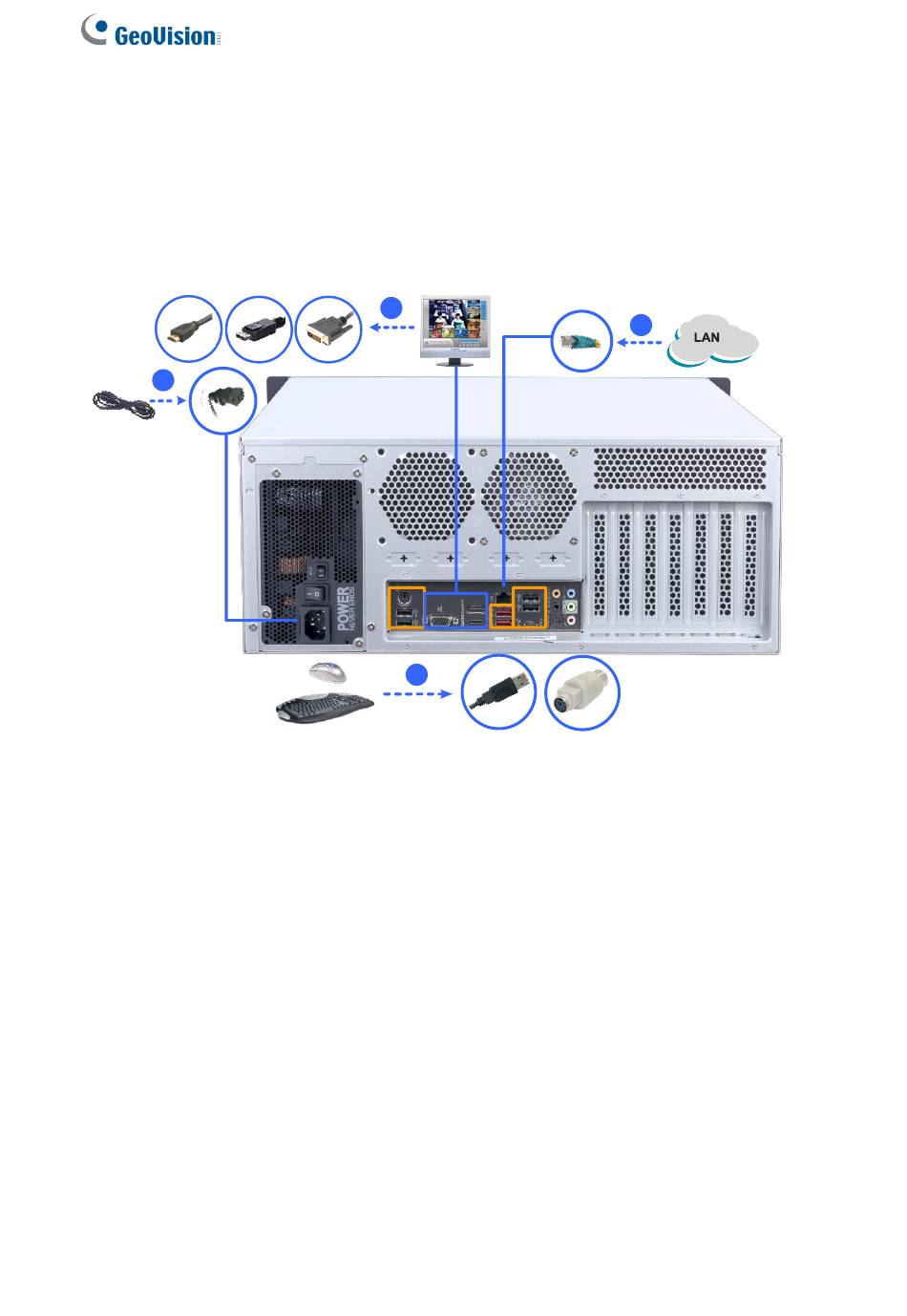

Figure 3-1
4
4
