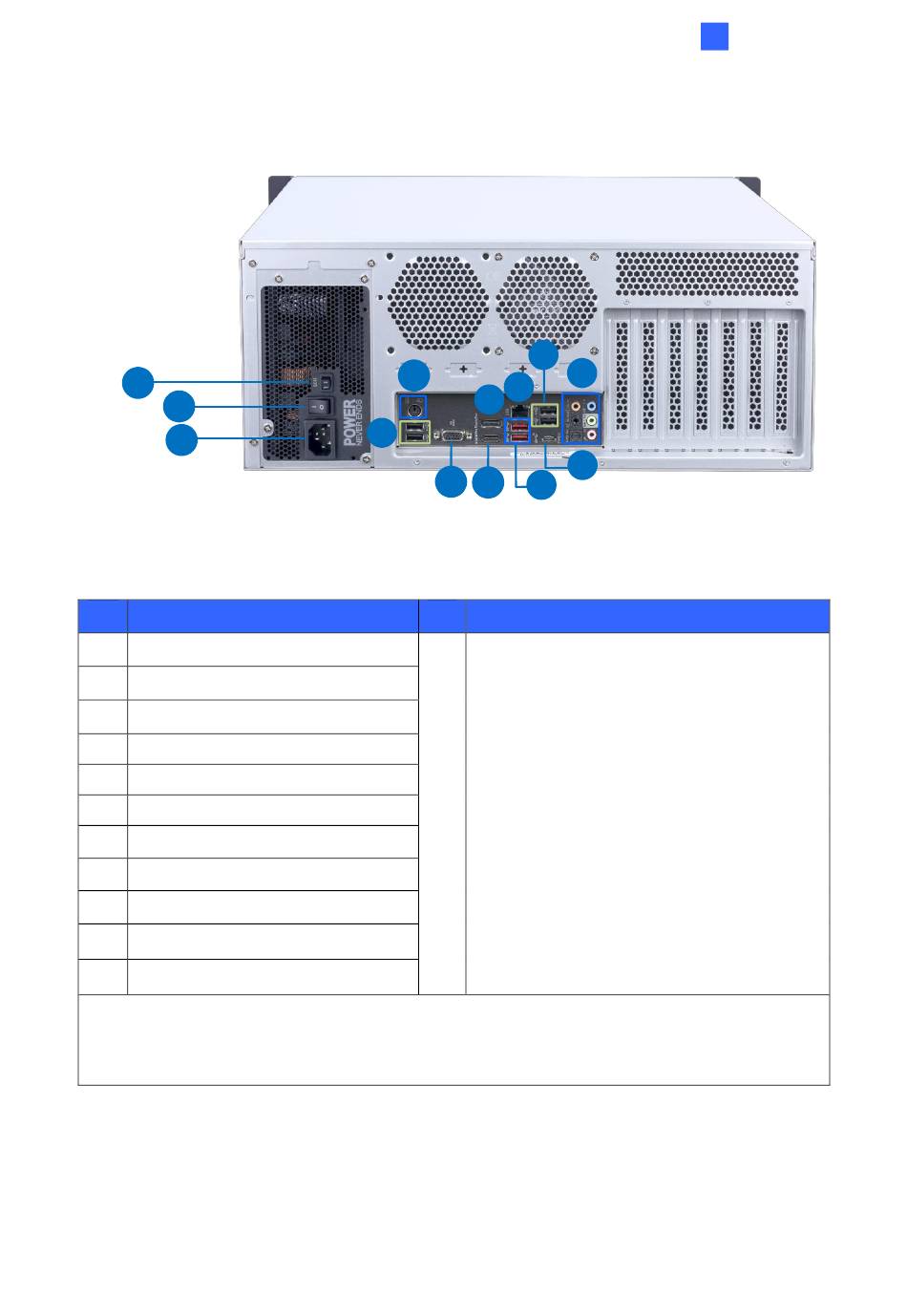

2.2 Rear View

3
2
1
No.
Name
1 Power Connector
2 Power Switch
3 ECO Switch
4 PS/2 keyboard / mouse port
5 USB 2.0 (Type-A) x 4
6 VGA
7 DisplayPort 1.4 (up to 4K / 60Hz)
8 HDMI (up to 4K / 60Hz)
9 2.5 GbE LAN
10 USB 3.2 (Type-A) x 2
11 USB 3.2 (Type-C)
Note: When the ECO Switch is ON, the redundant power supply fan will be powered on
based on the temperature the system detects; when the ECO switch is OFF, the redundant
power supply fan will always be powered on no matter the circumstances.
5
4
9
7
5
6
8
10
Figure 2-2
No. Name
➢
Audio Jack x 6
➢
Center Speaker Out (Orange)
➢
Rear Speaker Out (Black)
➢
12 Optical S/PDIF Out
➢
Line In (Blue)
➢
Line Out (Green)
➢
Mic In (Pink)
3
2
12
11
