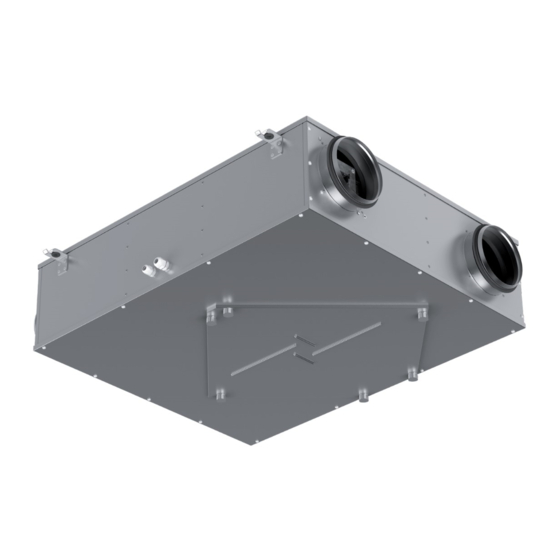

Vents VUE 150 P3 User Manual

Energy recovery air handling unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S MANUAL
VUE 150 P3
VUE 250 P3
VUE 350 P3
Energy recovery air handling unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VUE 150 P3 and is the answer not in the manual?

Questions and answers

Related Manuals for Vents VUE 150 P3

Summary of Contents for Vents VUE 150 P3

  • Page 1 USER‘S MANUAL VUE 150 P3 VUE 250 P3 VUE 350 P3 Energy recovery air handling unit...

  • Page 2: Table Of Contents

    VUE P3 CONTENTS Contents Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................7 Mounting and set-up .................................. 9 Connection to power mains ..............................10 Technical maintenance ................................
  • Page 3 • Do not change the power cable length at your own discretion. Do not bend the power • Do not lay the power cable of the unit in cable. Avoid damaging the power cable. Do close proximity to heating equipment. not put any foreign objects on the power cable.

  • Page 4: Purpose

    VUE P3 PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air.

  • Page 5: Technical Data

    IP44 for the unit motors The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. Parameter VUE 150 P3 VUE 250 P3 VUE 350 P3 Unit supply voltage, 50 Hz [V]...
  • Page 6 VUE P3 Dimensions [mm] Model Ø D VUE 150 P3 VUE 250 P3 VUE 350 P3 149 1117 1024 www.ventilation-system.com...

  • Page 7: Design And Operating Principle

    DESIGN AND OPERATING PRINCIPLE Left-handed modification Power cord with a plug Controller Cable glands Control unit Supply fan Thermostat for heat exchanger freeze protection Extract fan Cross- ow heat exchanger Extract air lter Supply air lter Inspection hatch for lter and heat exchanger maintenance The service side of the unit is equipped with a detachable inspection hatch on manual bolts for filter and heat exchanger cleaning and replacement operations.
  • Page 8 VUE P3 The provide heat exchanger freeze protection during the cold season, the unit is equipped with a thermostat that is installed in the exhaust air duct downstream of the heat exchanger. The Defrosting mode is activated when the exhaust air temperature is +3 ˚С. After temperature increase the unit returns to the previous operation mode.

  • Page 9: Mounting And Set-Up

    MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR. The unit is designed for suspended ceiling mounting with anchor threaded rods, nuts and anti-vibration rubber. Fasteners for fan mounting are not included in the delivery set and should be ordered separately. While choosing fasteners consider the material of the mounting surface as well as the weigh of the unit, refer to the Technical data section.

  • Page 10: Connection To Power Mains

    VUE P3 CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.

  • Page 11: Technical Maintenance

    TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! The unit must undergo technical maintenance 3 to 4 times a year. They include general cleaning of the unit and the following operations: 1. Filter maintenance (3-4 times per year). Dirty filters increase air resistance in the system and reduce supply air volume.

  • Page 12: Troubleshooting

    VUE P3 TROUBLESHOOTING Problem Possible reasons Troubleshooting The fan(s) do(es) not get Make sure the power supply line is connected correctly, No power supply. started. otherwise troubleshoot a connection error. Filters, fans or the heat exchanger Clean or replace the filters. Clean the fans and the heat are soiled.

  • Page 13: Manufacturer's Warranty

    MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above. The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance of the transportation, storage, installation, and operation regulations.

  • Page 14: Certificate Of Acceptance

    VUE P3 CERTIFICATE OF ACCEPTANCE Unit Type Energy recovery air handling unit Model VUE ______P3______ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 15 www.ventilation-system.com...
  • Page 16 V147EN-03...

This manual is also suitable for:

Vue 250 p3Vue 350 p3
