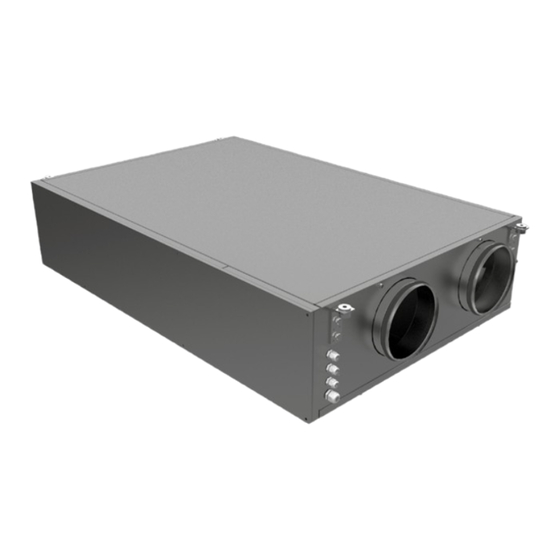

- Page 1 USER'S MANUAL VUT/VUE 300 PBE EC VUT/VUE 550 PBE EC VUT/VUE 900 PBE EC Heat and energy recovery air handling unit...
-
Page 2: Table Of Contents
VUT/VUE 300/550/900 PBE EC CONTENTS Safety requirements ..................................2 PURPOSE ......................................5 Delivery set ......................................5 Designation key ....................................5 Technical data ....................................6 DESIGN AND OPERATING PRINCIPLE ..........................8 Mounting and set-up .................................. 9 Connection to power mains ..............................11 Technical maintenance ................................ - Page 3 VUT/VUE 300/550/900 PBE EC CAUTION: In order to avoid a safety hazard due to inadvertent resetting of the thermal cut- out, this unit must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. Ensure that the unit is switched off from the supply mains before removing the guard.
- Page 4 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
-
Page 5: Purpose
VUT/VUE 300/550/900 PBE EC PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 6: Technical Data
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. TECHNICAL DATA MODEL VUT/VUE 300 PBE EC VUT/VUE 550 PBE EC VUT/VUE 900 PBE EC Voltage [V/50 (60) Hz] 1~ 230... - Page 7 VUT/VUE 900 PBE EC ø14 ø d Dimensions [mm] Model Ø D В В1 В2 ВЗ В4 В5 Н Н1 Ø d VUT/VUE 300 PBE EC 1238 1290 VUT/VUE 550 PBE EC 1238 1290 VUT/VUE 900 PBE EC 1351 1483 1349 1402 www.ventilation-system.com...
-
Page 8: Design And Operating Principle
VUT/VUE 300/550/900 PBE EC DESIGN AND OPERATING PRINCIPLE The unit operates as follows: Warm stale extract air from the room flows through the air ducts to the unit, where it is filtered, then air flows through the heat exchanger and is exhausted outside by the extract fan through the air ducts. Clean cold air from outside is moved by the supply fan to the unit, where from it is directed to the supply filter. -
Page 9: Mounting And Set-Up
Minimum distance required to access the unit Control unit Type VUT/VUE 300 PBE EC VUT/VUE 550 PBE EC VUT/VUE 900 PBE EC min A [mm] UNIT MOUNTING The unit is designed for suspended mounting by means of the threaded rod fixed in the threaded dowel. - Page 10 VUT/VUE 300/550/900 PBE EC The unit is available with the service side located on the left and on the right of the unit to facilitate mounting and provide minimum service access. Right-hand modification Left-hand modification VUT/VUE ... R VUT/VUE ... L Top view Bottom view Safety precautions...
-
Page 11: Connection To Power Mains
VUT/VUE 300/550/900 PBE EC CONNECTION TO POWER MAINS DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE UNIT MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER'S LABEL. -
Page 12: Technical Maintenance
VUT/VUE 300/550/900 PBE EC TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION The recommended maintenance periodicity is 3-4 times per year. The maintenance and servicing routines include regular cleaning and the following operations: 1. -
Page 13: Troubleshooting
VUT/VUE 300/550/900 PBE EC TROUBLESHOOTING IF UNIDENTIFIED NOISES OR ODOURS SHOULD ARISE AND IN CASE OF DEFORMATION OF ELEMENTS, VIBRATION, TERMINATION OF AIR SUPPLY/EXTRACTION OR REDUCED SYSTEM PERFORMANCE, IMMEDIATELY DISCONNECT THE UNIT FROM POWER SUPPLY AND CONTACT THE SELLER FOR THE VENTILATION SYSTEM DIAGNOSTICS DIAGNOSTICS MUST BE CARRIED OUT BY QUALIFIED SPECIALISTS POSSIBLE FAULTS AND TROUBLESHOOTING Problem... -
Page 14: Manufacturer's Warranty
VUT/VUE 300/550/900 PBE EC MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 15: Certificate Of Acceptance
