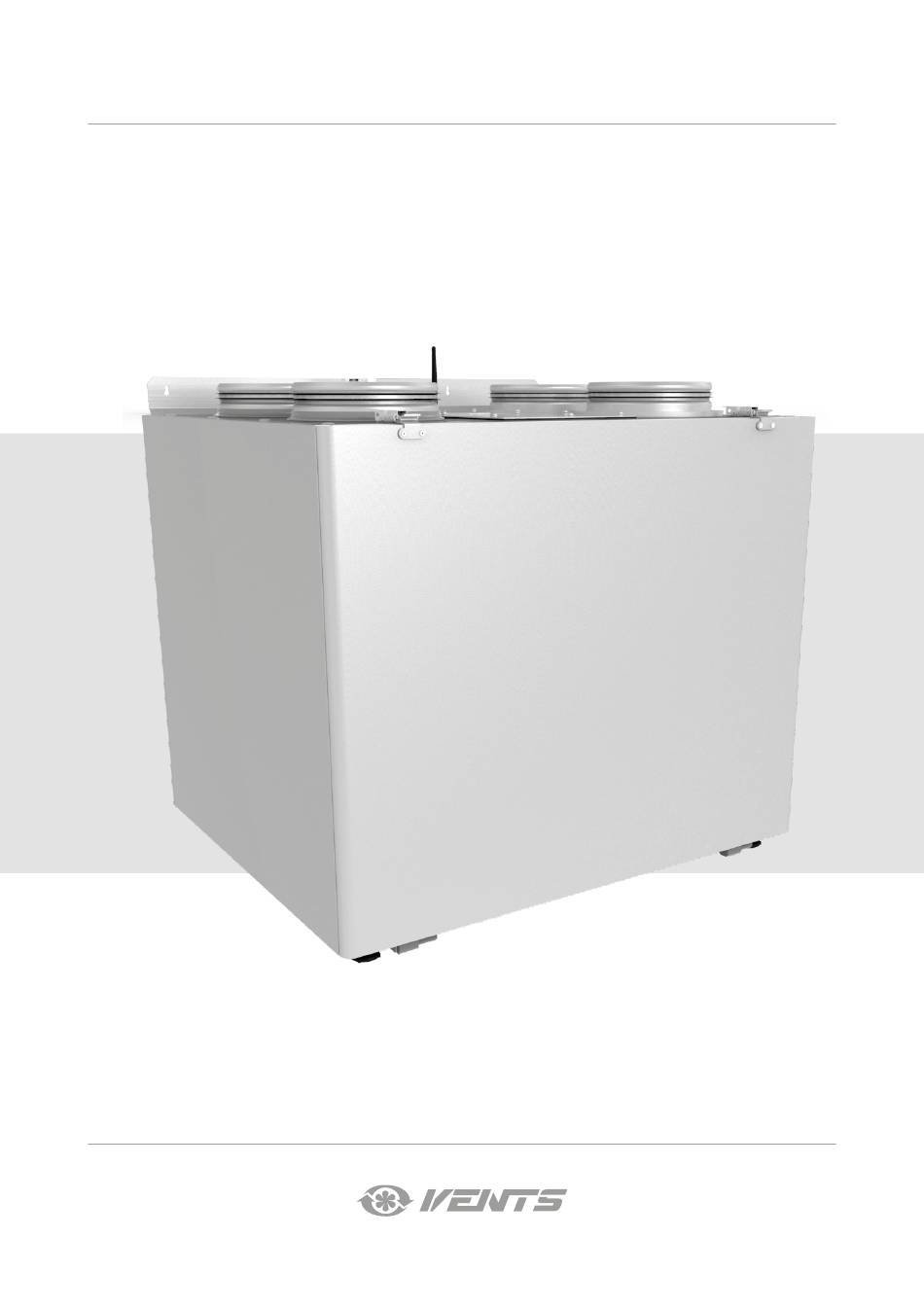

- Page 1 USER’S MANUAL VUT 160 V EC VUT 350 V1B EC VUE 160 V EC VUE 350 V1B EC VUT 160 V1 EC VUT 350 VB EC VUE 160 V1 EC VUE 350 VB EC VUT 160 VB EC VUT 550 VB EC...
-
Page 2: Table Of Contents
Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it. -
Page 3: Purpose
VUT/VUE 160/350/550 V(1)(B) EC Never touch the unit with wet or damp hands. Never touch the unit when barefoot. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 4: Delivery Set
VUT/VUE 160/350/550 V(1)(B) EC DELIVERY SET Name Number Air handling unit 1 pc. User's manual 1 pc. Control panel* 1 pc. Packing box 1 pc. *The control panel is not included in the delivery set of units equipped with an A21 controller. DESIGNATION KEY 350 V Motor type... - Page 5 VUT/VUE 160/350/550 V(1)(B) EC MODEL Supply voltage [V/50 (60) Hz] 1~ 220-240 Maximum fan power [W] Maximum unit current (without a heater) [A] Maximum air flow [m RPM [min 3770 3200 2860 Sound pressure level at 3 m distance [dBA] Transported air temperature [°С] -25...+40 Casing material...
- Page 6 VUT/VUE 160/350/550 V(1)(B) EC Chart for determining the condition of condensate formation on the unit surface (mineral wool insulation 40 mm), with a correction of 10 degrees 100,0% 95,0% 90,0% 85,0% 80,0% 75,0% 70,0% 65,0% 60,0% 55,0% 50,0% 45,0% 40,0% 35,0% 30,0% 25,0%...
-
Page 7: Design And Operating Principle
VUT/VUE 160/350/550 V(1)(B) EC DESIGN AND OPERATING PRINCIPLE The unit has the following operating principle: warm stale extract air from the room flows into the unit where it is filtered by the extract filter, then air flows through the heat exchanger and is exhausted outside by the extract fan. Cold fresh air from the outside flows into the unit, where it is cleaned by the supply filter. - Page 8 VUT/VUE 160/350/550 V(1)(B) EC NKP duct preheater • (for the VUT/VUE 160/350/550 V(1) (B) EC A21 units). The heater maintains the duct air temperature at a point that prevents the heat exchanger freezing. Heater installation and connection to the unit are described in the heater user’s manual. NKD duct reheater •...
-
Page 9: Installation And Set-Up
VUT/VUE 160/350/550 V(1)(B) EC INSTALLATION AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. AFTER INSTALLING THE UNIT, LOCK THE LATCH TO PREVENT ACCIDENTAL OPENING OF THE COVER. SERVICE SIDE CHANGE The unit design allows changing the service side. EXHAUST AIR EXTRACT AIR INTAKE AIR... - Page 10 VUT/VUE 160/350/550 V(1)(B) EC Install the service panel on the opposite side, connect it with a ground wire. Install the back cover. Attach the hinge stopper. UNIT INSTALLATION To get the best performance of the unit and to minimize turbulence-induced air pressure losses, connect the straight air duct section to the spigots on both sides of the unit while installing.
- Page 11 VUT/VUE 160/350/550 V(1)(B) EC CONDENSATE DRAINAGE Condensate drainage is required for the VUT 160/350/550 V(1)(B) EC unit series. The hole for the drain pipe is at the bottom of the unit. Remove the plug from the hole. Open the service panel and remove the plug in the drain pan.
-
Page 12: Connection To Power Mains
VUT/VUE 160/350/550 V(1)(B) EC CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. - Page 13 VUT/VUE 160/350/550 V(1)(B) EC EXTERNAL WIRING DIAGRAM FOR THE VUT/VUE 160/350/550 V(1)(B) EC A14 UNITS 0-10V SM-LSM-N PK PK +U 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 0-10V SM1* SM2* HV1* CO2* PK1*...
- Page 14 VUT/VUE 160/350/550 V(1)(B) EC EXTERNAL CONNECTIONS DIAGRAM FOR THE VUT/VUE 160 V(1) B EC A21 UNITS GND A Com Out1 NO IN1 Com Out1 NO IN1 TE_H GND 1 2 3 4 1 2 3 4 GND A 1 2 3 4 1 2 3 4 GND A N In 90 60...
- Page 15 VUT/VUE 160/350/550 V(1)(B) EC EXTERNAL CONNECTIONS DIAGRAM FOR THE VUT/VUE 350/550 V(1) B EC A21 UNITS L N PE N PK N Boost GND 0-10 24V NO C NO C NO 1 2 L N 9 10 11 12 13 14 15 16 17 18 L N PE GND 0-10 24V 50-60Hz...
-
Page 16: Technical Maintenance
VUT/VUE 160/350/550 V(1)(B) EC TECHNICAL MAINTENANCE Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1. Filter maintenance (3-4 times per year). Dirty filters increase air resistance in the system and reduce supply air volume. The filters require cleaning not less than 3-4 times per year. Clean the filter with a vacuum cleaner or replace it with a new one. -
Page 17: Possible Reasons And Troubleshooting
VUT/VUE 160/350/550 V(1)(B) EC IF UNIDENTIFIED NOISES OR ODOURS SHOULD ARISE AND IN CASE OF DEFORMATION OF ELEMENTS, VIBRATION, TERMINATION OF AIR SUPPLY/EXTRACTION OR REDUCED SYSTEM PERFORMANCE, IMMEDIATELY DISCONNECT THE UNIT FROM POWER SUPPLY AND CONTACT THE SELLER FOR THE VENTILATION SYSTEM DIAGNOSTICS. DIAGNOSTICS MUST BE CARRIED OUT BY QUALIFIED SPECIALISTS. -
Page 18: Manufacturer's Warranty
VUT/VUE 160/350/550 V(1)(B) EC MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 19: Certificate Of Acceptance
VUT/VUE 160/350/550 V(1)(B) EC CERTIFICATE OF ACCEPTANCE Unit Type Приточно-вытяжная установка Model VUT/VUE _______________________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 20 V239EN-01...
