Summary of Contents for Vents VUE 100 P3

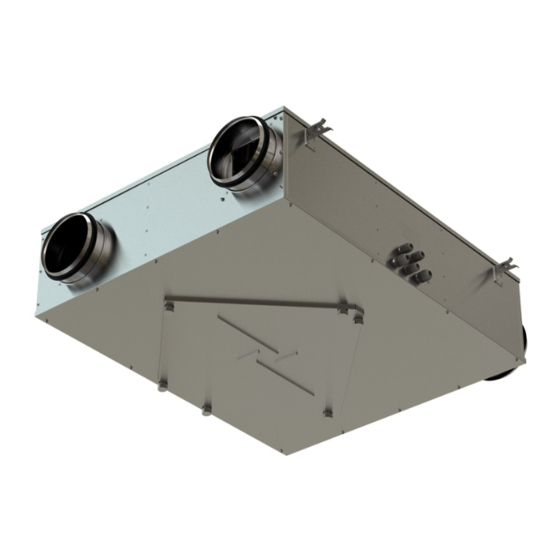

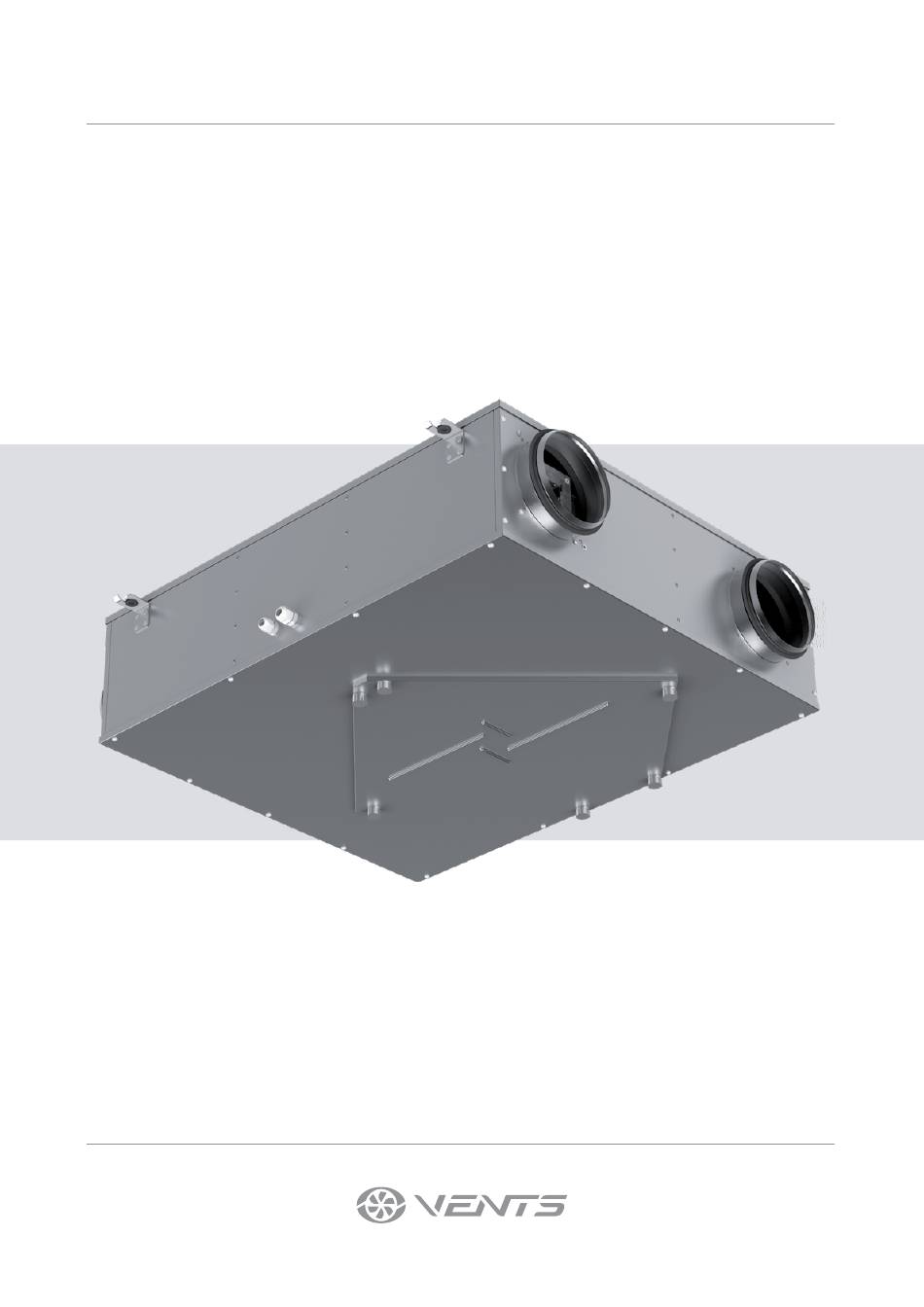

- Page 1 USER’S MANUAL VUE 100 P3 VUE 200 P3 VUE 300 P3 VUE 450 P3 Heat and energy recovery air handling unit...
-
Page 2: Table Of Contents
VUE P3 A3/A4 CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................7 Mounting and set-up .................................. 9 Connection to power mains ..............................10 Technical maintenance ................................ -
Page 3: Safety Requirements
Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it. - Page 4 VUE P3 A3/A4 This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit.
-
Page 5: Purpose
PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 6: Technical Data
IP22 for the unit connected to the air ducts IP44 for the unit motors The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. Parameter VUE 100 P3 VUE 200 P3 VUE 300 P3 VUE 450 P3... - Page 7 Dimensions [mm] Model Ø D VUE 100 P3 VUE 200 P3 VUE 300 P3 VUE 450 P3 1157 1024 www.ventilation-system.com...
-
Page 8: Design And Operating Principle
VUE P3 A3/A4 DESIGN AND OPERATING PRINCIPLE Left-handed modification Power cord with a plug Controller Cable glands Control unit Supply fan Thermostat for heat exchanger freeze protection Extract fan Cross- ow heat exchanger Extract air lter Supply air lter Inspection hatch for lter and heat exchanger maintenance The service side of the unit is equipped with a detachable inspection hatch on manual bolts for filter and heat exchanger cleaning and replacement operations. - Page 9 The provide heat exchanger freeze protection during the cold season, the unit is equipped with a thermostat that is installed in the exhaust air duct downstream of the heat exchanger. The Defrosting mode is activated when the exhaust air temperature is +3 ˚С. After temperature increase the unit returns to the previous operation mode.
-
Page 10: Mounting And Set-Up
VUE P3 A3/A4 MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR. The unit is designed for suspended ceiling mounting with anchor threaded rods, nuts and anti-vibration rubber. Fasteners for fan mounting are not included in the delivery set and should be ordered separately. -
Page 11: Connection To Power Mains
CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. •... -
Page 12: Technical Maintenance
VUE P3 A3/A4 TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION The unit must undergo technical maintenance 3 to 4 times a year. They include general cleaning of the unit and the following operations: 1. -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Possible reasons Troubleshooting The fan(s) do(es) not get Make sure the power supply line is connected correctly, No power supply. started. otherwise troubleshoot a connection error. Filters, fans or the heat exchanger Clean or replace the filters. Clean the fans and the heat are soiled. - Page 14 VUE P3 A3/A4 MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
-
Page 15: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type Heat and energy recovery air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 16 V147-1EN-02...
