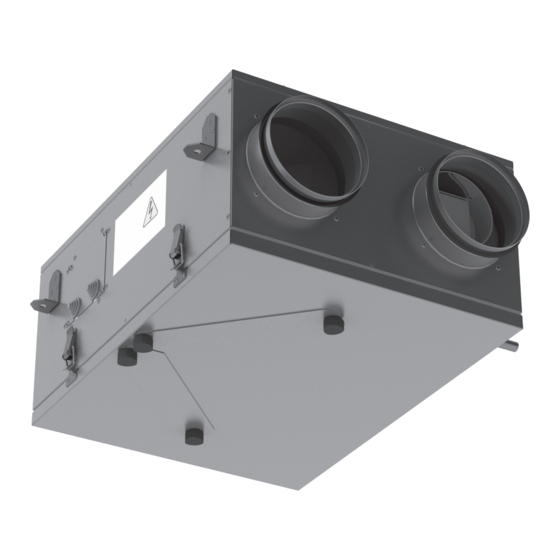

- Page 1 USER’S OPERATION MANUAL Air handling unit with heat (energy) utilization VENTS VUT 100 P mini VENTS VUE 100 P mini...
-
Page 2: Table Of Contents
VUT(VUE) 100 P mini CONTENT Introduction....................Application..................... Delivery set....................Unit designation key.................. Basic technical data..................Basic dimensions..................Safety requirements................... Structure and operating diagram............Mounting and setting-up................. Condensate drainage................. Unit connection to power mains............Unit operation and control logic............Servicing and maintenance..............Troubleshooting................... -
Page 3: Introduction
This user’s manual combines technical description, operation and service manual, technical data sheet and installation guidelines for the air handling unit with heat utilization VENTS VUT 100 P mini / air handling unit with energy utilization VENTS VUE 100 P mini, hereinafter unit. -
Page 4: Unit Designation Key
VUT(VUE) 100 P mini UNIT DESIGNATION KEY VUT 100 P mini Casing type Compact casing. Modification type P – suspended. Air capacity [m Unit type VUT – ventilation with heat utilization. VUT – ventilation with energy utilization. BASIC TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1ºC (34... -
Page 5: Basic Dimensions
Connecting air duct dia. [mm] 4 х 125 Heat utilization efficiency [%] Moisture utilization efficiency [%] Heat exchanger type cross-flow BASIC DIMENSIONS Ø 125 G 1/2” 175* 111* Ø 8.2 4 holes Ø 125 * - for VUT 100 P mini only Fig. 1... -
Page 6: Safety Requirements
VUT(VUE) 100 P mini SAFETY REQUIREMENTS While operating and mounting the unit consider the requirements of the present operation manual as well as general requirements of all applicable local and national building and electrical codes and standards. Ground the unit before operating! Before connecting the unit to power mains make sure that the unit is free of any visible damages or any other foreign objects inside the casing that can damage the impeller blades. -
Page 7: Mounting And Setting-Up
1. Supply fan 2. Extract fan 3. Plate cross-flow heat exchanger made of aluminium for the model VENTS VUT 100 P mini or paper for the model VENTS VUE 100 P mini. 4. G4 Supply filter 5. G4 Extract filter 6. -
Page 8: Condensate Drainage
CONDENSATE DRAINAGE The unit is equipped with a drain pipe for condensate drainage (only for the unit VENTS VUT 100 P mini). The connection of the unit to drain system is shown in fig. 5. Connect the condensate drain pipe (1), U-traps (3) and the drainage system with metal, plastic or rubber pipes . -
Page 9: Unit Connection To Power Mains
UNIT CONNECTION TO POWER MAINS Cut power supply off before any operations with the unit. The unit shall be con- nected to power mains by duly qualified electricians. The rated values of the electrical parameters are shown on the rating plate. Any modifications of the internal connections are not allowed and will void the warranty. -
Page 10: Unit Operation And Control Logic
The operating logic of the unit is as follows. Sensible heat energy contained in the extract air flow is transferred in the VENTS VUT 100 P mini unit heat exchanger to the cold intake air flow from outside to warm it up before supplying it to the room. -
Page 11: Servicing And Maintenance
To maintain high energy / heat exchange efficiency pull out and clean the heat exchanger. Clean the paper heat exchanger of the VENTS VUE 100 P mini unit with a vacuum cleaner. Cleaning with water, abrasive detergents, solVENTS or sharp objects is not allowed. Clean the aluminium heat exchanger of the VENTS VUT 100 P mini with mild detergent solution or vacuum cleaner. -
Page 12: Troubleshooting
Fan screw tightening is loose. Check the screw tightening. Water leakage (only Clean the drain pipe. Check the drain The drain pipe is clogged, damaged for the Vents VUT pipe slope, U-trap and the correct or wrong arranged. 100 P mini unit). temperature conditions. -
Page 13: Manufacturer's Warranty
MANUFACTURER’S WARRANTY Manufacturer hereby guarantees normal performance of the unit within 2 years since the date of its sale in accordance to the rules of transportation, storage, assembling and operation. In case of no confirmation of sales date the warranty period is calculated from the production date. In case of any failures in operation of the unit during the warranty period the manufacturer ac- cepts any claims from the Customer if the technical certificate with the description of the malfunction is provided. -
Page 14: Acceptance Certificate
____________________________________________________________________________________ Sale date ____________________________ CONNECTION CERTIFICATE This is to certify that the air handling unit VENTS VUT(VUE) 100 P mini has been connected to power mains pursuant to the requirements stated in this user’s operation manual by the electrical engineer:... - Page 16 V59-1EN-01...
