9.3 Reference Scaling - Examples

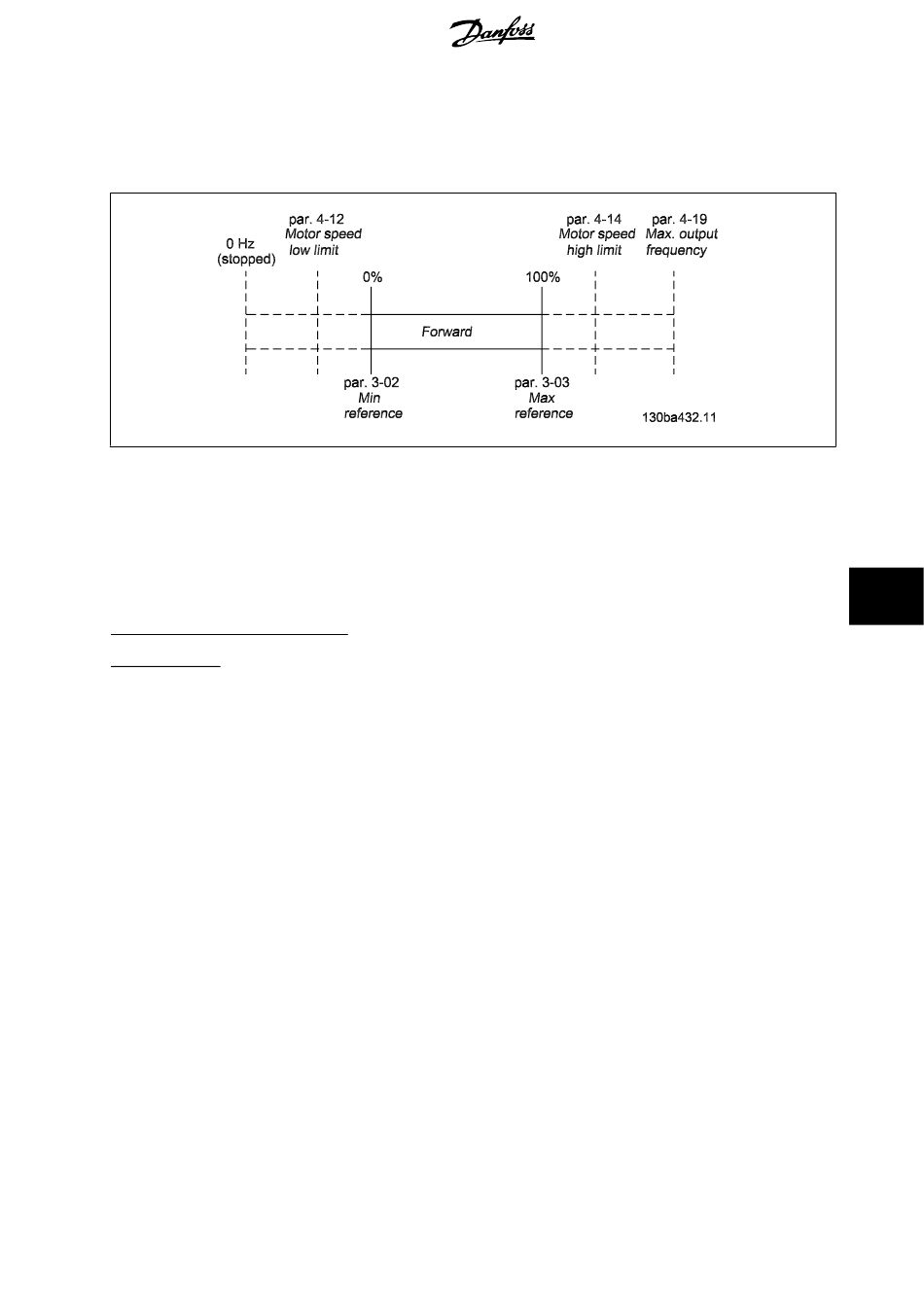

9.3.1 Reference Scaling - Open Loop

Example:

Minimum Reference

par. 3-02

Maximum Reference

par. 3-03

Reference send = 1500 hex (5376 dec)

Output:

The output can be calculated as:

Reference (decimal) * (par.3−03 − par.3−02)

16384

5376 * (1500 − 100)

+ 100 =

559 RPM

16384

= 100 RPM

= 1500 RPM

+ par.3 − 02 =
