Wali 1342LM Accessory Installation Manual

INSTALLATION MANUAL

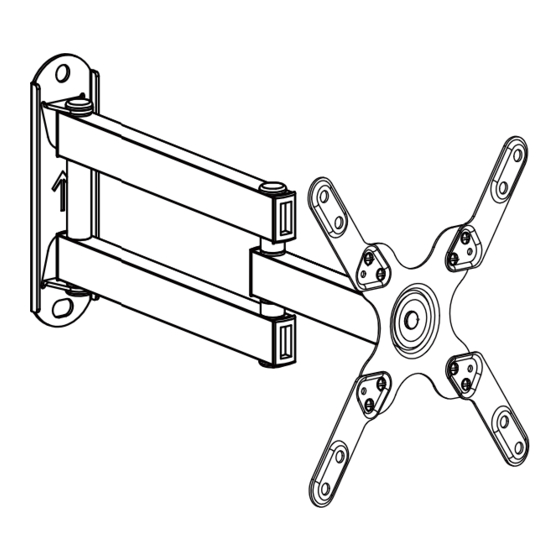

TV Wall Mount
1342LM

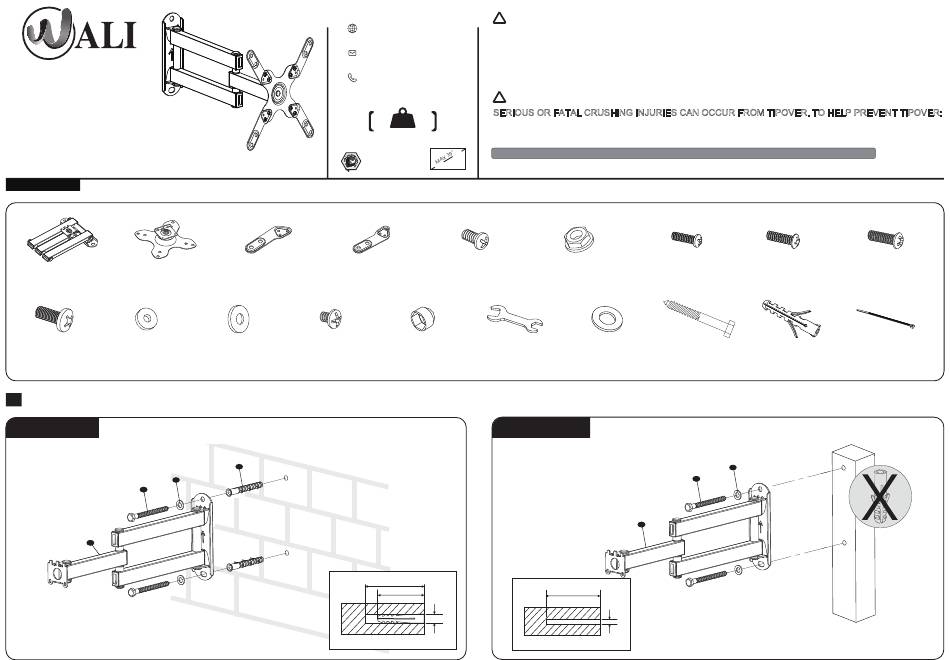

Supplied Parts List

Wall Plate &
VESA Plate
Articulating Arms
b (x1)
a (x1)
M8x20 Bolt D5 Washer
k (x4) l (x4)
1

Install the Wall Plate to the Wall

Option A : Brick Mount
q
r
a
www.walielectric.com
support@walielectric.com
1-844-SATTLER (18447288537)
RATED
(15kg/33lbs)
75x75\100x100
100x200\200x200
Adapter Adapter
c (x2) d (x2)
D8 Washer M4x6 Bolt
m (x4) n (x2)
s
65m m
60m m
WARNING
！
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
Do not exceed weight capacity. This product is designed to be installed on wood stud walls, solid concrete walls or brick
walls. Do not mount on drywall alone. We cannot be liable for damage or injury caused by improper mounting, incorrect
assembly or inappropriate use.
TIPOVER WARNING
！
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
● NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.
● USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL.
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.
SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
M4x10 Bolt M4 Nut
e (x8) f (x8)
Bolt Cover Wrench Lag Bolt Washer
o (x2) p (x1)
Option B : Wood Mount
65m m
10m m
M4x14 Bolt M5x14 Bolt
h (x4) i (x4)
Lag Bolt Concrete Anchor
q (x2) r (x2)
q
r
a
4m m
M6x14 Bolt
j (x4)
Cable Tie
s (x2) t (x3)
