WINCH MODELS:
T110S12, T110A12, T110S24, T110A24
T114S12, T114A12, T114S24, T114A24,
T122S12, T122A12, T122S24, T122A24
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do so could result in
serious injury. Specifications, descriptions and images in this manual are as accurate as known at the time of publication, but are subject to change without notice.

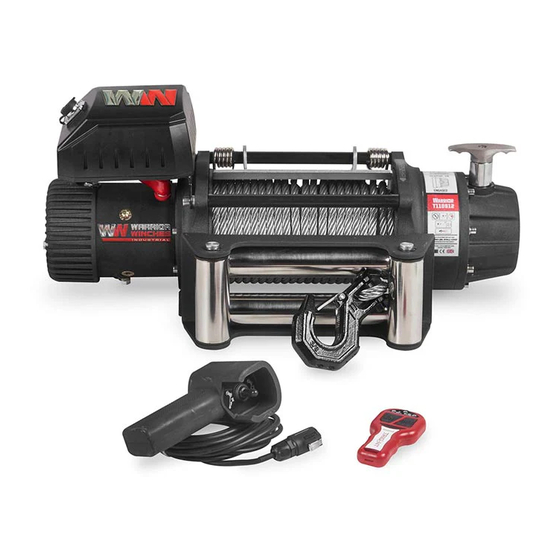

T1000 WINCH
OWNERS MANUAL
ENGLISH
Doc-rev 20230425
Advertisement
Table of Contents
Related Manuals for Warrior Winches T110S12
Summary of Contents for Warrior Winches T110S12
- Page 1 T1000 WINCH OWNERS MANUAL WINCH MODELS: ENGLISH T110S12, T110A12, T110S24, T110A24 T114S12, T114A12, T114S24, T114A24, T122S12, T122A12, T122S24, T122A24 Doc-rev 20230425 SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do so could result in...
-
Page 2: Getting To Know Your Winch
INTRODUCTION WINCH MANUAL INTRODUCTION GETTING TO KNOW YOUR WINCH Congratulations on your purchase of a winch. We design and build Your winch is a powerful piece of machinery. It is important that you winches to strict specifications and with proper use and maintenance your understand the basics of its operation and specifications so that winch should bring you years of satisfying service. -
Page 3: Important Safety Instructions
WINCH MANUAL IMpORTANT SAFETY INSTRUCTIONS IMpORTANT SAFETY INSTRUCTIONS DANGER DANGER When re-spooling the cable Ensure that the cable spools in the under-wind position with the cable entering the drum from the DO NOT EXCEED RATED CAPACITY. bottom, not the top. To re-spool correctly, and while wearing gloves, keep a slight tension on the cable while pushing the remote control button to draw in the cable. - Page 4 IMpORTANT SAFETY INSTRUCTIONS WINCH MANUAL WARNING NOTICE Keep children away. Children must never be allowed in the work area, The vehicle engine should always be kept running during winching Do not let them handle machines, tools, extension cords or operate operation to minimize battery drain and maximize power and speed this tool.
-
Page 5: Winch Assembly And Mounting
WINCH MANUAL IMpORTANT SAFETY INSTRUCTIONS CAUTION WARNING Always re-spool cable neatly after any operation this will avoid any Do not operate tool if under the influence of alcohol or drugs. winch cable misalignment for the next use Read warning labels on prescription to determine if your judgment or reflexes are impaired while taking drugs. -
Page 6: Rigging Techniques
WINCH MANUAL RIGGING TECHNIQUES 1. Your winch is designed with a bolt pattern that is standard in WIRELESS SWITCH RECEIVER this class of winch. Many winch mounting kits are available that utilize this bolt pattern for the most popular vehicle and mounting channels. - Page 7 RIGGING TECHNIQUES WINCH MANUAL CAUTION NOTICE NEVER attach the clevis hook back onto the winch cable as this could Short pulls from an angle can be used to straighten the vehicle/ cause damage to the cable. equipment. Long pulls should be done with the wire rope in a straight line to winch/vehicle, see above illustration.
-
Page 8: Winching Techniques A-Z
WINCH MANUAL WINCHING TECHNIQUES A-Z WINCHING TECHNIQUES A-Z y. Disconnect the remote control lead and store in a clean, dry place. z. Clean and inspect connections and mounting hardware for next winching operation. a. Take time to asses your situation and plan your pull. b. -
Page 9: Troubleshooting
WINCH MANUAL TROUBLESHOOTING TROUBLESHOOTING Problem Cause Solution Remote assembly not connected properly Check remote lead and connections. Loose battery cable connections Check battery and connections. Defective remote assembly Replace remote lead assembly. Motor does not turn on Check for voltage at armature port with Switch Defective motor pressed. -
Page 10: Other Exclusions
WINCH MANUAL WARRANTY* WARRANTY* Other Exclusions This Warranty does not cover steel cables, synthetic ropes, fairleads, BPE Limited Ltd are the sole distributors of these WARRIOR wireless remotes or any exterior finishes outside thirty (30) Days from WINCHES and associated brands/equipment. purchase. -
Page 11: Specifications
SpECIFICATIONS WINCH MANUAL SpECIFICATIONS T110S12, T11012, T110S24, T110A24 Rated line pulls 10000 lbs (4536 kgs) Gear reduction ratio 228:1 Motor 112V:Input: 4.6kW / 6.2hp; Output: 2.1kW / 2.8hp 24V:Input: 5.7kW / 7.6hp; Output: 3.3 kW / 4.4hp Overall dimensions 22.6”×6.3”×10.2”... - Page 12 SpECIFICATIONS WINCH MANUAL SpECIFICATIONS T114S12, T114A12, T114S24, T114A24 Rated line pulls 14500 lbs (6577 kgs) Gear reduction ratio 228:1 Motor 12V:Input: 5.4kW / 7.2hp; Output: 2.7kW / 3.6hp 24V:Input: 6.5kW / 8.7hp; Output: 2.8 kW / 3.8hp Overall dimensions 24.1”×6.3”×10.2” 612 mm ×160mm ×259mm Drum size Ø2.48 “×8.5 “...
-
Page 13: Winch Assembly Drawing
WINCH MANUAL SpECIFICATIONS WINCH ASSEMBLY DRAWING T110S12, T110A12, T110S24, T110A24, T114S12, T114A12, T114S24, T114A24... -
Page 14: Winch Parts List
SpECIFICATIONS WINCH MANUAL WINCH pARTS LIST (T110S12, T110A12, T110S24, T110A24, T114S12, T114A12, T114S24, T114A24) Part Number Description Qty. Part Number Description Qty. 37 T1000029 T1000001 Lock Washer Ø6 Gear—Housing 38 T1000030 T1000002 Screw M6x 20 Think Flat Washer Ø6 39 T1000001... - Page 15 WINCH MANUAL SpECIFICATIONS SpECIFICATIONS T122S12, T122A12, T122S24, T122A24 Rated line pulls 22000 lbs (9979 kgs) Gear reduction ratio 450:1 Motor 12V:Input: 5.5kW / 7.4hp; Output: 2.9kW / 3.9hp 24V:Input: 6.1kW / 8.2hp; Output: 3.1kW / 4.2hp Overall dimensions 25.12”×8.4”×11.4” 638 mm ×214mm ×289mm Drum size Ø3.46 “×8.4 “...
- Page 16 WINCH MANUAL SpECIFICATIONS WINCH ASSEMBLY DRAWING T122S12, T122A12, T122S24, T122A24...
- Page 17 SpECIFICATIONS WINCH MANUAL WINCH pARTS LIST (T122S12, T122A12, T122S24, T122A24) Part Number Description Qty. Part Number Description Qty. 37 T2200031 T2200001 Lock Washer Ø8 Lock Washer Ø10 38 T2200032 T2200002 Screw M8x 25 Flat Washer Ø10 39 T2200700 T2200100 Motor Assembly Roller Fairlead T2200003 Ring Seals...
- Page 18 BPE Solutions Deutschland GmbH, Altrottstrasse 31, 69190 Walldorf, Deutschland Gerät(e) / Dispositif (s) / Equipment 12V / 24V Terminator Electric Winch Modell / Modéle / Model T110S12, T110S24, T110A12, T110A24, T114S12, T114S24, T114A12, T114A24, T122S12, T122S24, T122A12, T122A24 Seriennummer / numéro de série / Serial Number Gemäß...
- Page 19 Supplier and Issuer: BPE Holdings Ltd, Unit 17/18A Bradley Hall Trad Est, Bradley Lane, Wigan, WN6 0XQ, UK Equipment 12V, 24V Terminator Electric Winches Model T110S12, T110S24, T110A12, T110A24, T114S12, T114S24, T114A12, T114A24, T122S12, T122S24, T122A12, T122A24, 80JNK24, TTR122S24 Serial Number...
- Page 20 For warranty and repair enquiries, please contact the retailer where you purchased your winch product. Service & Technical Contacts United Kingdom: Germany: France: BPE Holdings BPE Solutions Deutschland GmbH BPE Solutions France SAS Unit 17-18 Altrottstraße 31 3 Boulevard de Belfort Bradley Hall Trading Estate D-69190 Walldorf 59000 Lille...
