WINCH MODELS:
C10000NH, C15000NH
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do so could result in
serious injury. Specifications, descriptions and images in this manual are as accurate as known at the time of publication, but are subject to change without notice.

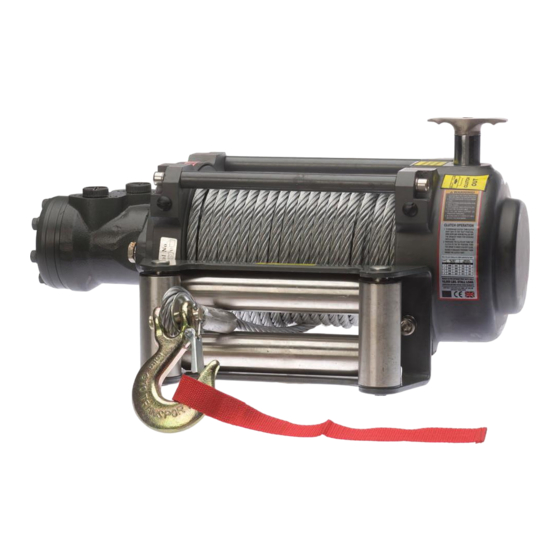

NH HYDRAULIC WINCH
OWNERS MANUAL
ENGLISH
Doc-rev 20230322
Advertisement
Table of Contents
Related Manuals for Warrior Winches C10000NH
Summary of Contents for Warrior Winches C10000NH
- Page 1 OWNERS MANUAL WINCH MODELS: ENGLISH C10000NH, C15000NH Doc-rev 20230322 SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do so could result in serious injury. Specifications, descriptions and images in this manual are as accurate as known at the time of publication, but are subject to change without notice.
-
Page 2: Getting To Know Your Winch
INTRODUCTION WINCH MANUAL GETTING TO KNOW YOUR WINCH INTRODUCTION Congratulations on your purchase of a winch. We design and build Your winch is a powerful piece of machinery. It is important that you winches to strict specifications and with proper use and maintenance your understand the basics of its operation and specifications so that winch should bring you years of satisfying service. -
Page 3: Important Safety Instructions
WINCH MANUAL IMpORTANT SAFETY INSTRUCTIONS IMpORTANT SAFETY INSTRUCTIONS DANGER DANGER When re-spooling the cable Ensure that the cable spools in the under-wind position with the cable entering the drum from the DO NOT EXCEED RATED CAPACITY. bottom, not the top. To re-spool correctly, and while wearing gloves, keep a slight tension on the cable while pushing the remote control button to draw in the cable. - Page 4 IMpORTANT SAFETY INSTRUCTIONS WINCH MANUAL WARNING NOTICE Keep children away. Children must never be allowed in the work area, The vehicle engine should always be kept running during winching Do not let them handle machines, tools, extension cords or operate operation to minimize battery drain and maximize power and speed this tool.
-
Page 5: Winch Assembly And Mounting
WINCH MANUAL IMpORTANT SAFETY INSTRUCTIONS DANGER WARNING Do not move your vehicle with the cable extended and attached to the Replacement parts and accessories. When repairing or servicing, load. You could easily exceed the winch rating and snap the cable. only use identical replacement parts. -
Page 6: Installation
WINCH MANUAL HYDRAULIC pRINCIpAL CHART AND INSTALLATION: – Mounting The Balance Valve: The balance valve supplied is simply CAUTION connected to motor. Be sure the balance valve’s installing direction meets hydraulic principle chart. Otherwise, the winch will not reach Winch battery cables should be placed so that there is a small amount the rated line pull, and it is also dangerous for winch to power off the of slack in the cable. - Page 7 HYDRAULIC pRINCIpAL CHART AND INSTALLATION: WINCH MANUAL Winches Motor Control Unit Directional Valve Relief Valve Pump Hydraulic Power System Oil Tank Engine Directional Control Valve Winch Motor Pump Engine Relief Cooler Valve Throttle Vavle Oil Filter Reservoir...
-
Page 8: Operation
WINCH MANUAL OpERATION RIGGING TECHNIQUES OpERATION Locate a suitable anchor such as a strong tree trunk or boulder. WARNING ALWAYS use a sling or strap as an anchor point on a object, Never use the cable or hook as a anchor point attached to an object. 1. -
Page 9: Maintenance
WINCH MANUAL MAINTENANCE MAINTENANCE CAUTION When pulling a heavy load, place a blanket or jacket over the wire rope LUBRICATION: five or six feet from the hook because in the event of a broken cable it will dampen the force. –... -
Page 10: Maintenance Precautions
WINCH MANUAL MAINTENANCE pRECAUTIONS MAINTENANCE pRECAUTIONS Overhaul When the hydraulic winch doesnt work or has malfunctioned is confirmed, 1. Correct use of the hydraulic winch can effectively increase the life of the operator/user can check and repair if qualified to do so. in instances the winch by many years. -
Page 11: Troubleshooting
TROUBLESHOOTING WINCH MANUAL TROUBLESHOOTING Problem Cause Solution Insufficiently hydraulic system pressure. Check relief valve regulate pressure. Check all the plumbing fixtures according to the Winch does not does not turn Improper connections of hydraulic system, no working principle chart. oil into motor. Defective directional control valve. -
Page 12: Specifications
SpECIFICATIONS WINCH MANUAL SpECIFICATIONS C10000NH Rated line pull 10000 lbs (4536 kgs) Motor displacement 65 ml/r Oil flow 15~45L/min Pressure 12.5Mpa Gear reduction ratio 25.5:1 Cable (Dia.× L) Ø13/32”×83.7 ‘ (Ø10.2mm×25.5m) Drum size(Dia.× L) Ø2.8 “×8.6” (Ø72mm×219mm) Mounting bolt pattern 10 “×4.5 “... - Page 13 WINCH MANUAL SpECIFICATIONS SpECIFICATIONS C15000NH Rated line pull 15000 lbs (6804 kgs) Motor displacement 80ml/r Oil flow 5~60L/min Pressure 13Mpa Gear reduction ratio 33.4:1 Cable (Dia.× L) Ø15/32”×87 ‘ (Ø12mm×26.5m) Drum size(Dia.× L) Ø3.5 “×8.5” (Ø89mm×217mm) Mounting bolt pattern 10 “×4.5 “ (254mm×114.3mm) 4-M12 21.4”×8.9”×10.3”...
-
Page 14: Winch Assembly Drawing
SpECIFICATIONS WINCH MANUAL WINCH ASSEMBLY DRAWING C10000NH / C15000NH C10000NH C15000NH... -
Page 15: Winch Parts List
WINCH MANUAL SpECIFICATIONS WINCH pARTS LIST C10000NH / C15000NH Part Number Description Qty. Part Number Description Qty. Hydraulic Motor Used in Gear Carrier C100NH0100 C10000NH C100NH0400 Assembly(Output) -Used in C10000NH Hydraulic Motor - Used in C150NH0100 C15000NH Gear Carrier C150NH0400... - Page 16 For warranty and repair enquiries, please contact the retailer where you purchased your winch product. support@warriorwinches.com...
