The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors
on the socket and damaging the CPU!
2.3.Installing Memory DIMMs

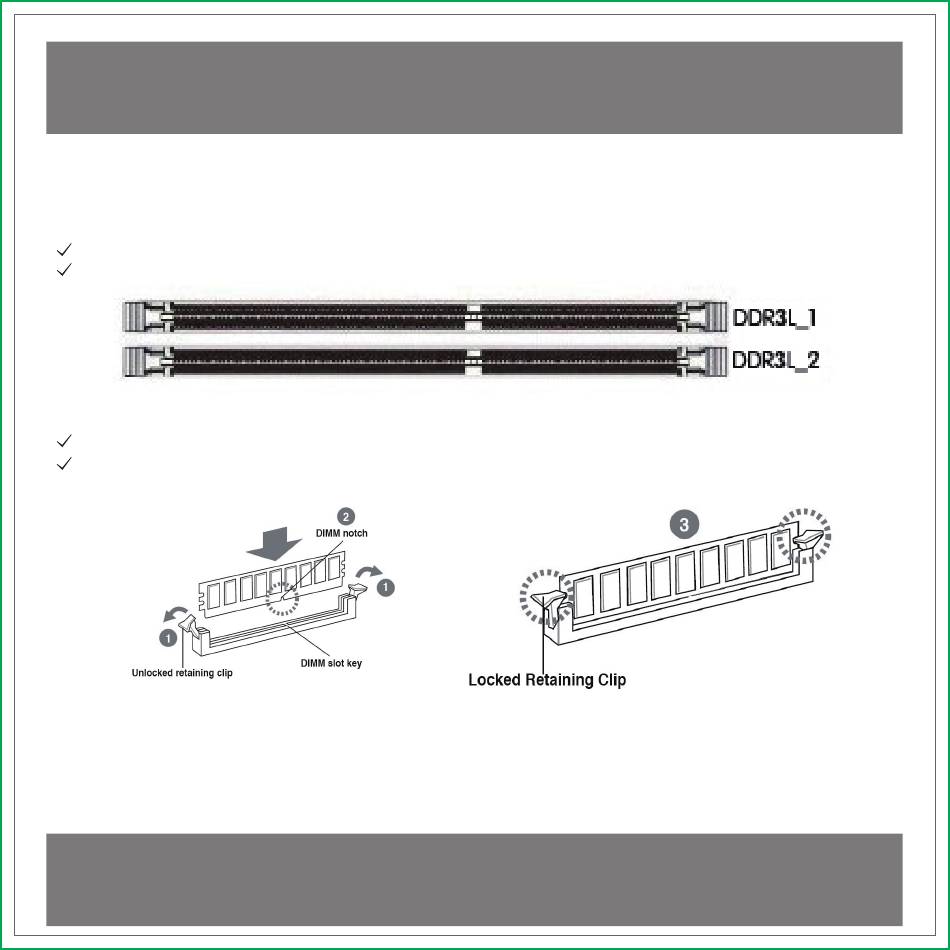

Your new motherboard has 2 slots for DDR3/3L memory. They support dual channel DDR3/3L memory technology. There
must be at least one memory bank populated to ensure normal operation. Use the following the recommendations for installing
memory.
One DIMM: Install into DDR3L_1 or DDR3L_2. You can install the DIMM into any slot, however, slot 1 is preferred.
Two DIMMs: Install into DDR3L_1&DDR3L_2,to build dual channel.
Use the following procedure to install memory DIMMs into the slots on the motherboard. Note that there is only one gap near
the center of the DIMM slot. This slot matches the slot on the memory DIMM to ensure the component is installed properly.
Unlock a DIMM slot by pressing the module clips outward.
Align the memory module to the DIMM slot, and insert the module vertically into the DIMM slot. The plastic clips at both
sides of the DIMM slot automatically lock the DIMM into the connector.
2.4.Inslling the Motherboard
The sequence of installing the motherboard into the chassis depends on the chassis you are using and if you are replacing
an existing motherboard or working with an empty chassis. Determine if it would be easier to make all the connections prior
to this step or to secure the motherboard and then make all the connections. Use the following procedure to install the I/O
shield and secure the motherboard into the chassis.
Be sure that the CPU fan assembly has enough clearance for the chassis covers to lock into place and for the expan-
sion cards. Also make sure the CPU Fan assembly is aligned with the vents on the covers.
