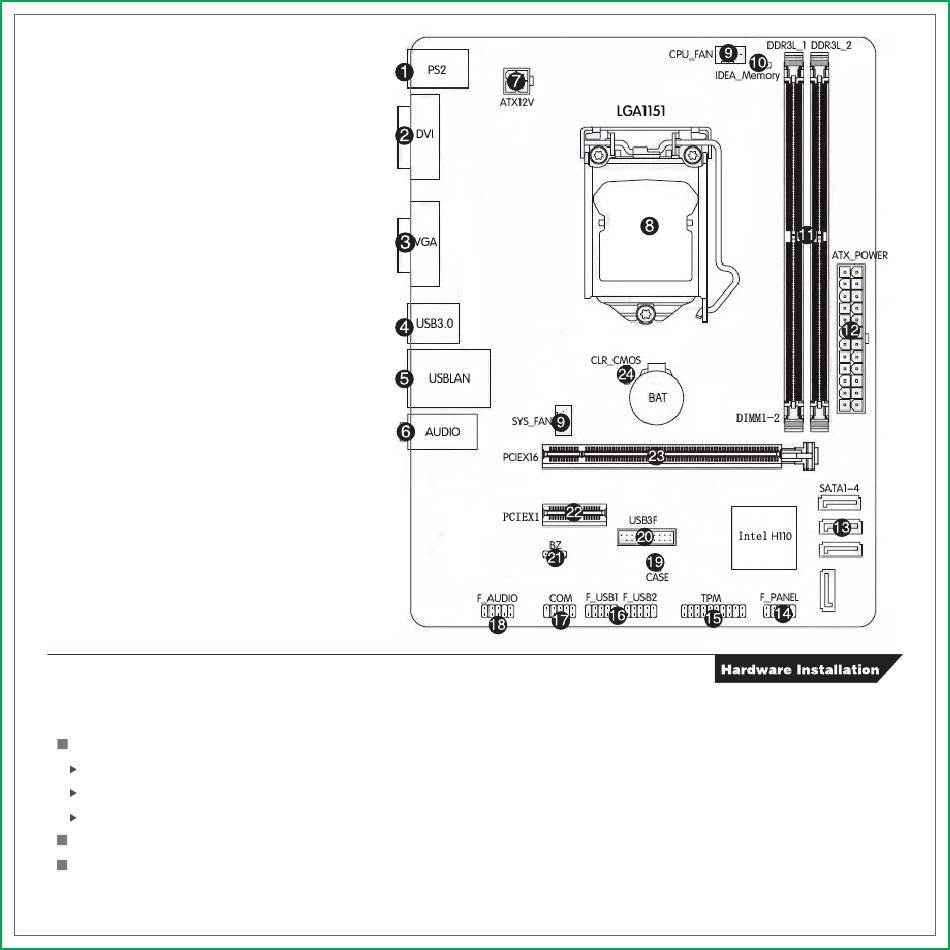

1.3.Motherboard Layout
1、PS/2 Mouse and Keyboard port
2、Connect to DVI monitor
3、Connect to VGA monitor
4、Connect to USB3.0 devices
5、Connect to USB2.0 devices and LAN
6、Audio devices
7、4-pin Power connector
8、Intel LGA1151 socket
9、Fan connector（CPU_FAN，SYS_FAN）
10、Memory voltage jumper(IDEA_Memory)
11、DIMM slots
12、24-pin ATX Power connector
13、SATA3.0 ports
14、System panel connector
15、TPM header
16、USB 1.1/2.0 port
17、COM Header
18、Front panel audio connector
19、Debug connector
20、USB 3.0 header
21、Speaker connector
22、PCI Express X1 slot
23、PCI Express 3.0 X16 slot, for VGA Card
24、Clear CMOS jumper
2.Hardware Installation
This section will guide you through the installation of the motherboard. The topics covered in this section are:
Preparing the motherboard
Installing the CPU
Installing the CPU fan
Installing the memory
Installing the motherboard
Connecting cables and setting switches
