C.H110M-K PRO V20A
C.B150M-K PRO V20A
Colorful Technology Website:
http://www.colorful.cn

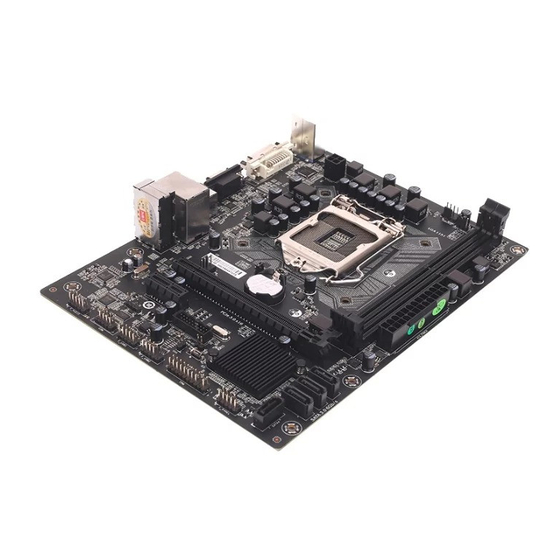

Thanks for purchasing our based on Intel H110/B150 Express Chipset motherboard.C.H110M-K PRO
V20A/C.B150M-K PRO V20A motherboard based on H110/B150 Express Chipset, support Intel LGA1151 processors,
support dual channel DDR4 2133MHZ memory, support PCI-E 3.0 standard。
The motherboard provides 1*DVI port、1*VGA port,2*DDR4 memory slots、4*SATA3.0 ports、onboard 6-CH audio
chipset、onboard 1000M LAN chipset, it's a Cost-effective motherboard ！
The motherboard provides 1*PCI Express x16 slot、1*PCI Express x1 slot。
1.1.Packing Contents
1*Colorful C.H110M-K PRO V20A/C.B150M-K PRO V20A
2*SATA cables
1*Driver/Utility CD
1*User's Guide
1xI/O shield
1.2.MOTHERBOARD SPEC
CPU
·support Intel LGA1151 processors
Chipset
·Intel H110/B150
・Dual-Channel DDR4 2133MHZ support
Main
Memory
·Offer 2 DIMM slots
・1*PCI-Express 3.0 x16 slot
Slots
·1* PCI-Express 3.0 x1 slot
Storage
·4*SATA3.0 ports
・6*USB2.0+4*USB3.0(C.H110M-K PRO V20A)
USB
·4*USB2.0+6*USB3.0(C.B150M-K PRO V20A)
・1*PS/2 Mouse/ Keyboard port
Rear IO
Connector
·1*LAN(RJ45) port
·2*USB 3.0 ports+2*USB 2.0
(C.H110M-K PRO V20A)
·4*USB 3.0 ports(C.B150M-K PRO V20A)
·6-Channel Audio I/O
·1*VGA+DVI Port
・1x 9-pin Front panel audio connector（F_AUDIO）
·1 x System Panel (HD LED, Power LED, Power switch,
Reset button)（F_PANEL）
·2*USB2.0 headers（FUSB20_1,FUSB20_2）
·1*USB3.0 header（FUSB30_1）
Other
·1*CPU FAN（CPU_FAN）
Connectors
·1*system FAN（SYS_FAN）
·1 PC speaker connector（BZ）
·1*Debug card connector（CASE）
·1*COM header（COM_A）
·1*CMOS jumper（CLR_CMOS）
High
・6-channel High Definition Audio Codec integrated
Definition
·HD audio
Audio
・Onboard 1000M LAN
Onboard
LAN
·Provides 10/100/1000Mb Ethernet
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Colorful C.H110M-K PRO V20A
Summary of Contents for Colorful C.H110M-K PRO V20A
- Page 1 The motherboard provides 1*DVI port、1*VGA port,2*DDR4 memory slots、4*SATA3.0 ports、onboard 6-CH audio chipset、onboard 1000M LAN chipset, it’s a Cost-effective motherboard ！ The motherboard provides 1*PCI Express x16 slot、1*PCI Express x1 slot。 1.1.Packing Contents 1*Colorful C.H110M-K PRO V20A/C.B150M-K PRO V20A 2*SATA cables 1*Driver/Utility CD 1*User's Guide 1xI/O shield 1.2.MOTHERBOARD SPEC...
-
Page 2: Motherboard Layout
1.3.Motherboard Layout 1.PS/2 Mouse/ Keyboard port and USB ports 2.Connect to DVI monitor 3.Connect to VGA monitor 4.Connect to USB3.0 devices 5.Connect to USB3.0/USB2.0 devices and LAN 6.Audio devices 7.4-pin ATX 12V Power connector 8.CPU Fan connector 9.Intel LGA1151 socket 10.Clear CMOS jumper 11.Battery 12.System FAN connector... -
Page 3: Safety Instructions
2.1.Safety Instructions To reduce the risk of fire, electric shock, and injury, always follow basic safety precautions. Remember to remove power from your computer by disconnecting the AC main source before removing or installing any equipment from/to the computer chassis. 2.2.Preparing the Motherboard The motherboard shipped in the box does not contain a CPU or memory. -
Page 4: Installing Memory Dimms
The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU! 2.3.Installing Memory DIMMs Your new motherboard has 2 slots for DDR4 memory. They support dual channel DDR4 memory technology. There must be at least one memory bank populated to ensure normal operation. -
Page 5: Securing The Motherboard Into The Chassis
2.5.Installing the I/O Shield The motherboard kit comes with an I/O shield that is used to block radio frequency transmissions, protects internal components from dust and foreign objects, and promotes correct airflow within the chassis. Before installing the motherboard, install the I/O shield from the inside of the chassis. Press the I/O shield into place and make sure it fits securely. - Page 6 2.7.1.ATX power connectors (24-pin ATXPWR, 4-pin ATX12V) These connectors are for an ATX power supply. The plugs from the power supply are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit. 2.7.2.Serial ATA 3.0/6.0 Gb/s connectors (7-pin) These connectors connect to Serial ATA 3.0/6.0 Gb/s hard disk drives and optical drives via Serial ATA 3.0/6.0 Gb/s signal cables.
-
Page 7: Usb 3.0 Connectors
Parts PS/2 Mouse Connector This connector is for a PS/2 mouse. PS/2 Keyboard Connector This connector is for a PS/2 keyboard. The standard RJ-45 jack is for connection to single Local Area Network (LAN). LAN Jack You can connect a network cable to it. Lie-In(Blue) Used for external CD player, tape player or other audio devices. -
Page 8: System Panel Connector
2.7.6.F_AUDIO(Front panel audio connector) This connector is for a chassis-mounted front panel audio I/O module that supports either High Definition Audio or AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector. 2.7.7.System panel connector This connector supports several chassis-mounted functions. - Page 9 2.7.8.CPU, Chassis, and Power fan connectors (4-pin CPU_FAN, 3-pin PWR_FAN) Connect the fan cables to the fan connectors on the motherboard, making sure that the black wire of each cable matches the ground pin of the connector. 2.7.9.COM header：COM_A This COM header is for COM serial devices. 2.7.10.PCI Express x16 Slots The PCI Express x16 slot is reserved for a graphics or video card.
- Page 10 2.7.11.Clear CMOS Jumper: CLR_CMOS There is a CMOS RAM on board that has a power supply from external battery to keep the system configuration data. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, use the CLR_CMOS Jumper to clear data.
- Page 11 Hard Drive BBS Priorities Copyright This motherboard manual belongs to Colorful Technology and Development CO, LTD. No one is permitted to copy, change, or translate without our written permission. Disclaimer The products name we mentioned in this manual is only for identifying, all of the brands belong to other company.
