FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
interference will not occur in a particular installation. If this equipment causes harmful interfer-
ence to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
For external model users: Please use the external shielded SCSI cables supplied with this
CD-ROM drive. Using other signal cables may exceed the limits of the Class B Part 15 of the
FCC Rules.
Any changes or modifications should be approved by the party responsible for compliance with
FCC Rules; otherwise, the user loses authority to operate the equipment.
CAUTION
Use of controls or adjustments or performance of procedures other than those specified herein
may result in hazardous radiation exposure.
The laser beam emitted from the optical pickup is invisible. Accordingly:
Do not open the optical pickup housing.
Obtain service only from Plextor-authorized personnel.
CAUTION
To disconnect the CD-ROM drive from an electrical current, pull out the power plug.
VORSICHT
DIE TRENNUNG VOM NETZ ERFOLGT DURCH ZIEHEN DES NETZSECKES.
Zur Einhaltung der Funk-Entstörung von nicht selbständig betreib-
baren Hochfrequenzgeräten (periphere Anlagenkomponenten).
Dieses Gerät entspricht als Einzelgerät den Funk-Entstöranforderun-
gen der Postverfügung Nr. 243/1991. Wird das Gerät innerhalb einer
Anlage zusammen mit anderen Geräten betrieben. So mu
Inanspruchnahme der ''Allgemeinen (Betriebs-) genehmigung'' nach
der BMPT-AmtsblVfg Nr. 243/1991 die gesamte Anlage folgenden Richtlinien entsprechen:
Grenzwertklases B der EN55022
Auflagen nach § 2 der BMPT-AmtsblVfg 243/1991
Dies ist bei der Zusammensetzung einer Anlage (z.B. Computersystem) aus nur einzein
geprüften Geräten nicht immer erfüllt.
Inside front cover
bei
ÜG-Vfg.243
Advertisement
Table of Contents
Related Manuals for Plextor UltraPlex PX-32CSe

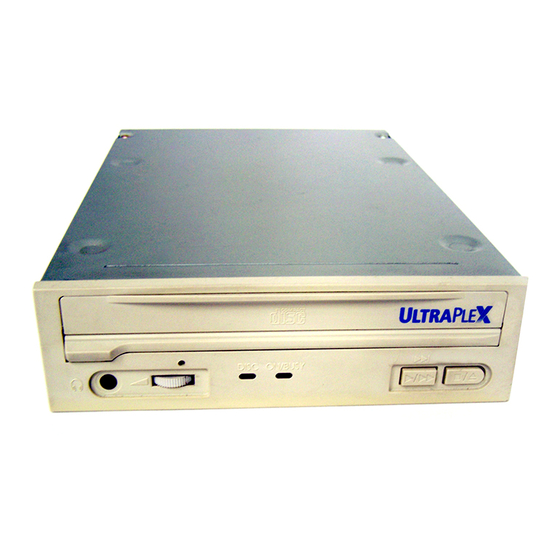

Summary of Contents for Plextor UltraPlex PX-32CSe
- Page 1 The laser beam emitted from the optical pickup is invisible. Accordingly: Do not open the optical pickup housing. Obtain service only from Plextor-authorized personnel. CAUTION To disconnect the CD-ROM drive from an electrical current, pull out the power plug.
- Page 2 CD-ROM DRIVE Caddy PX-32CSi Internal PX-32CSe External Tray PX-32TSi Internal PX-32TSe External...
- Page 3 Further, Plextor Corp. reserves the right to revise this manual and to make changes in its content without obligation to notify any person or organization of such revision or change.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction ..... . 1 2. Box Contents ..... . 3 UltraPleX Internal Drives . - Page 5 Installation Guide ....65 About Plextor ......79...
-
Page 6: Introduction
The UltraPleX is the most reliable and highest performance CAV CD-ROM drive available in its class. The UltraPleX is also the first fully CAV CD-ROM drive manufactured by Plextor. The throughput of CAV CD-ROM drives varies throughout the disc. With the UltraPleX you are guaranteed a minimum of fourteen speed performance and will experience thirty-two speed performance with certain CD-ROM discs and applications. - Page 7 CHAPTER 1 ---- Introduction In this manual you should find all the information you need to successfully install and operate your drive. If you run into a problem, however, please contact us (see Chapter 13 for the different ways you can contact us). You will be connected to our friendly, who know their stuff.
-
Page 8: Box Contents
Compare what you find in the box with the tables on the following pages. What you should find in your Plextor box depends on two factors: 1) what configu- ration you purchased; and 2) what the company that sold you the box put in----or took out----while it was in their possession. -
Page 9: Ultraplex Internal Drives
Use the following tables to check the contents of your box: UltraPleX Internal Drives CD-ROM drive (Caddy) (Tray) 4 chrome and 4 black screws Caddy (PX-32CS only) Plextor Manager software SCSI interface board & installation guide* Audio cable* SCSI cable* Plextor operation manual Warranty registration card... -
Page 10: Ultraplex External Drives
UltraPleX External Drives CD-ROM drive (Caddy) (Tray) Caddy (PX-32CS only) Plextor Manager software SCSI interface board & installation guide* Audio cable* SCSI cable* Plextor operation manual Warranty registration card Mac device drivers manual & disk * Please see Chapter 13, page 62, for locations to purchase additional or replacement accessories. -
Page 11: A Gentle Reminder
Therefore, please ship your drive in the safest manner possible. We believe your drive will be most secure if it is shipped in a Plextor box. We hope you will never have to ship your drive back to us. If you do, however, please send it packaged in a Plextor box. -
Page 12: What Else Do I Need
Inventory your current computer system; check list below. If you are a PC owner and you purchased a Plextor box labeled ‘‘Drive with SCSI Interface Kit,’’ your needs are simple: none. The same holds true if you are a Mac owner and purchased a Plextor box labeled ‘‘Drive with Mac Kit.’’... - Page 13 CHAPTER 3 ---- What Else Do I Need? connector for connection to the UltraPleX. Be sure to read the section on ‘‘Termination’’ in Chapter 7 of this manual. If you purchased your SCSI interface board several months or years before you purchased your UltraPleX drive, you may need to update your device drivers.
-
Page 14: Precautions
Please read this manual carefully and keep it handy for easy reference. Use this manual for installation, operation, and troubleshooting. See your dealer, or call Plextor’s Technical Support Department, should your drive require repair or service. Do not put your computer monitor (or any other device weighing more than 30 lbs.) on top of the UltraPleX external drive. -
Page 15: Drive Features
---- CHAPTER 5 ---- Drive Features YOUR TASK: Get to know your drive. YOUR OBJECTIVE: Learn how to operate different features of the drive. Learn what goes where. Learn some terms that will be used elsewhere in the manual. YOUR METHOD: Match the parts of your drive to the diagrams below. -
Page 16: Tray Drive
DISC Indicator: Green when power is on and disc is inserted. Off if no disc is inserted. Volume Control: Controls volume of headphone jack. This control has no effect on the rear-panel audio outputs. Headphone Jack: Stereo mini-jack for headphones and powered speakers. PX-32TS (Tray) Drive----FRONT PANEL (Int./Ext.) Door Closed Front Door... -
Page 17: Px-32Xsi (Internal Drive)
CHAPTER 5 ---- Drive Features PX-32XSi Internal Drive (Caddy, Tray)----REAR PANEL SCSI Interface Connector Audio Output Connector Audio Output Connector: Outputs stereo analog signal. Use to connect to sound- board or audio amplifier. SCSI Interface Connector: Connects to SCSI interface board using 50-pin to 50-pin flat ribbon SCSI cable. -
Page 18: Px-32Xse (External Drive)
PX-32XSe External Drive (Caddy, Tray)----REAR PANEL DIP Switches Audio Output SCSI Interface Connector In and Out DIP Switches: Use to set parity, term, test, block size, and eject lock options. Leave these switches at their factory settings unless one of the following pertain to you: Termination: Review Chapter 7 to determine if you need to turn your terminator switch off. -
Page 19: Drive Switch/Jumper/Dial Settings
(PC, Mac, Sun, Silicon Graphics, DEC, etc.) that can use SCSI peripherals. To provide this flexibility, Plextor gives its customers options on how a drive can be set before it is installed. On an internal drive, settings are determined by the position of jumpers on the jumper block at the rear of the drive. -
Page 20: Px-32Xsi Internal Drive
do not plan to use the Eject Lock feature, skip now to Chapter 8, Hardware Installation. (Take our word for it, most of you can now skip to Chapter 8.) PX-32XSi Internal Drive Factory Setting of Jumper Block The functions shown are ON if the jumpers are installed and OFF if jumpers are removed. -
Page 21: Scsi Id Number
SCSI peripherals, however, it is necessary to set each peripheral to a unique SCSI ID number. Your Plextor CD-ROM drive can be set to use one of eight SCSI ID numbers. The drive should arrive with its SCSI ID set to 3. Accordingly, if you already use another SCSI peripheral, and its SCSI ID also is set to 3, you must change the SCSI ID number of either this peripheral or that of the CD-ROM drive. -
Page 22: Px-32Xse External Drive
For example, the factory setting of the SCSI ID at 3 is made by installing a jumper on pin 1 and pin 2 of the jumper block, leaving pin 3 uncovered. To set the SCSI ID at 7, you would install a jumper across pin 1, another jumper across pin 2, and a third jumper across pin 3. -
Page 23: Other Switch/Jumper Settings
Check your device driver manual for instructions on how to issue a software eject command. The media lock and eject functions can also be controlled by Plextor Manager software. ULTRAPLEX OPERATION MANUAL... -
Page 24: Termination
. This should not be confused with termination itself. power can and should be provided by at least one device Termination attached to your SCSI host adapter. Your Plextor CD-ROM drive auto- matically supplies termination power. Any additional devices supplying termination power will NOT cause any problems. -
Page 25: Px-32Xsi Internal Termination
CHAPTER 7 ---- Termination PX-32XSi Internal Termination The PX-32TSi is shipped from the factory with its termination enabled (ON). To disable termination, remove the jumper from the termination pins on the back panel of your drive. Refer to the diagrams on pages 12 and 15 for the location of the termination pins (labeled ‘‘Term’’).
