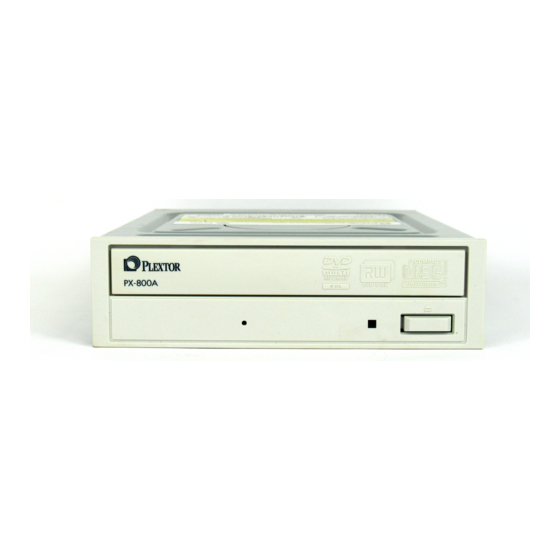

Model PX-800A Internal ATAPI Drive
DVD±R DL (DOUBLE LAYER/DUAL LAYER),
DVD±R/RW, DVD-RAM, CD-R/RW DRIVE
INSTALLATION AND USERS MANUAL
MARCH 2007
