- Page 1 MANUAL ENGLISH Compact 8.1 Ordercode: D2321 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Compact 8.1 Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Connection with the mains............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Features ..................................5 Overview ..................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Compact 8.1 Power adapter 2x15Vac 350mA ... - Page 4 Compact 8.1 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ...
-
Page 5: Operating Determinations
Compact 8.1 Operating Determinations This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 6: Description Of The Device

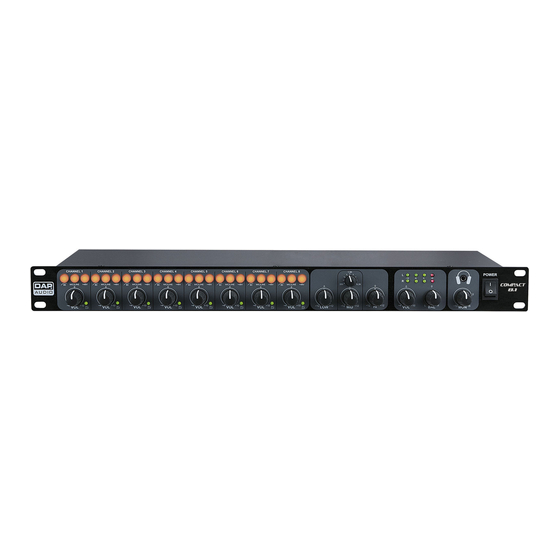

8 Channel 1U Mic/Line mixer The Compact 8.1 is a high quality 19” 1U microphone line mixer. With some smart features it distinguishes itself from other compact mixers. All inputs can be used for microphone or line level inputs and have high pass filters and phantom power selections for each input separately. -
Page 7: Overview
Compact 8.1 Overview Front Panel Low Cut (Channel 1-8) Press the LOW CUT switch to activate the high-pass filter which blends out low-frequency noise (80 Hz, 18 dB/octave). Mic/Line (Channel 1-8) Select the input channel (XLR Microphone / Unbalanced stereo RCA pin jacks). - Page 8 15. POWER ON / OFF Use the POWER switch to turn on the Compact 8.1. The POWER switch should always be in the “Off” position, when you are about to connect your unit to the mains.
-
Page 9: Rear Panel
Compact 8.1 Rear Panel 16. Power adapter connector This is the remote AC power supply input socket for the Compact 8.1 It is a special three core socket. Only use the supplied DAP audio adapter. 17. Master XLR balanced out connector Use these outputs to connect an amplifier with balanced inputs. - Page 10 Compact 8.1 28. Channel 4 RCA line input connectors Use the connectors to connect a line level device. You can select the line input with the corresponding Mic/Line input selection (2) switch on the frontpanel. 29. Mic 4 balanced input connector Electronically balanced combo-type input for connecting low impedance microphones.
-
Page 11: Set Up And Operation
Compact 8.1 Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 115V specification product on 230V power, or vice versa. Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. -
Page 12: Connection Example
Compact 8.1 Connection Example Ordercode: D2321... -
Page 13: Maintenance
Compact 8.1 Maintenance DAP Audio Compact 8.1 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 14: Product Specifications
Compact 8.1 Product Specifications Input channels: 8 x Microphone, combo XLR/Jack 8 x Line, RCA Output channels: 1 x Master Balanced, XLR 1 x Headphones, 6,3mm TRS Jack Master EQ: 80Hz, 330-8200Hz, 12KHz, -12dB / +12dB Frequency response: 20Hz - 20Khz T.H.D.:... -
Page 15: Notes
Compact 8.1 Notes Ordercode: D2321... - Page 16 ©2014 DAP Audio...
