Front Panel Removal & Installation - Labconco Purifier Logic+ 30231 Series User Manual

Chapter 6: Maintaining The Cabinet
Sampling/Decontamination
Tube
Towel Catch Retaining
Spring
Towel Catch
Note: Upper and lower
towel catch flanges point to
the front of the cabinet, and
the bottom of the towel
catch rests against the back
wall.
Font Panel Removal and Installation:
1. Locate and remove the two Phillips
screws that secure the front panel as
shown in Figure 6-3. They are
located on the bottom corners of the
front dress panel.
2. Swing the bottom of the dress panel
out to clear the fluorescent light and
then lift the front dress panel
straight up and away from the
cabinet.
42

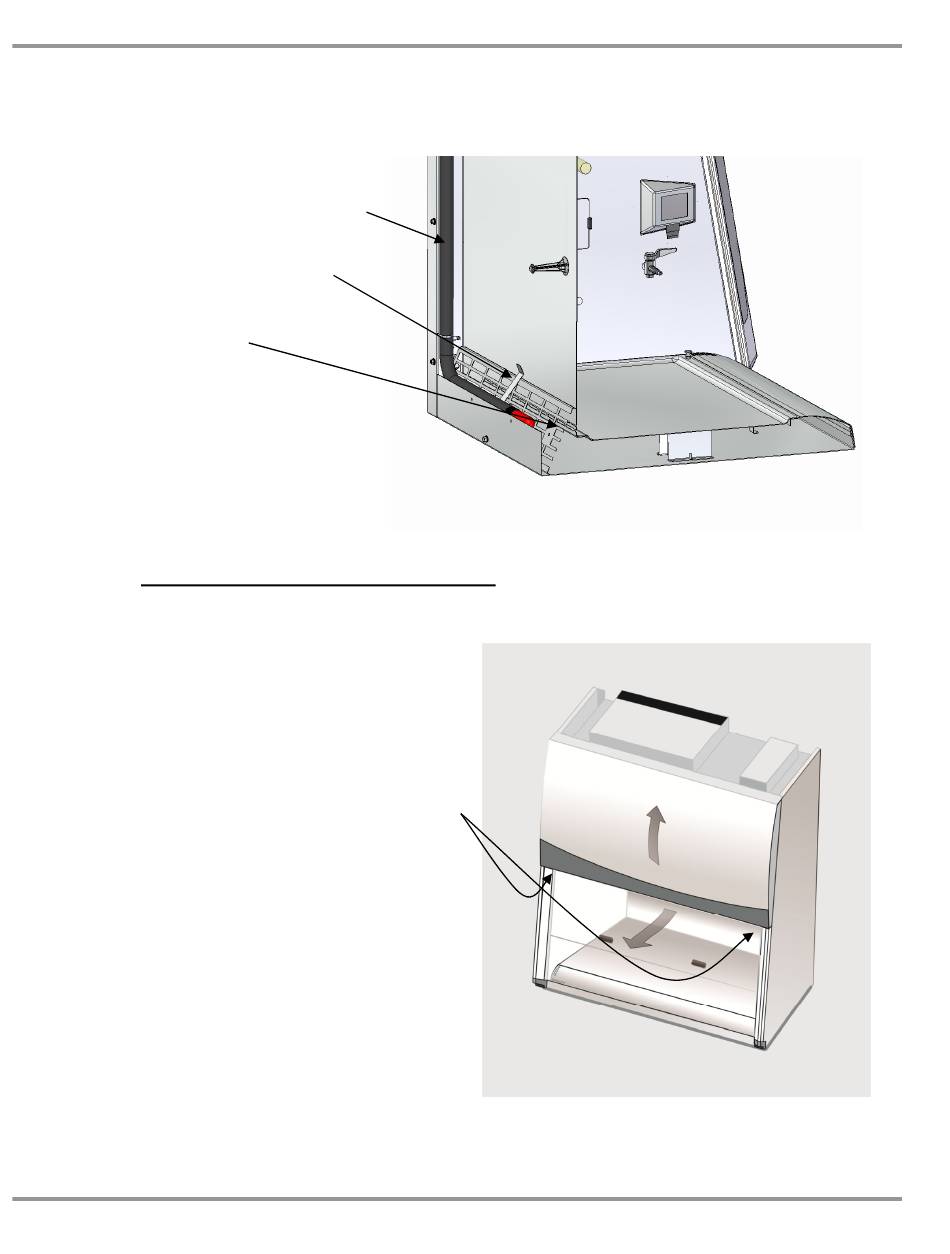

Figure 6-3
