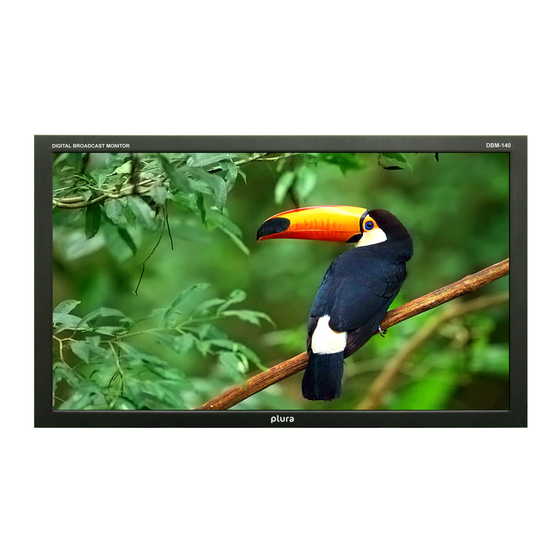

Multi Format Digital l Broadcast Monitor
DBM-140 (40")
DBM-146 (46")
DBM-152 (52")
DBM-157 (57")

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DBM-152 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Plura DBM-152

Summary of Contents for Plura DBM-152

  • Page 1 DBM-140 (40”) Operating DBM-146 (46”) Instructions DBM-152 (52”) Multi Format Digital l Broadcast Monitor DBM-157 (57”)

  • Page 2: Table Of Contents

    Table of Contents PRECAUTION ...................... 3 INCLUDING ......................6 ........................6 UPPLIED CCESSORIES ........................6 EMOTE ONTROLLER OPERATIONS ...................... 8 ........................8 ONNECTION ETAILS ......................... 8 NTERFACE DESCRIPTION ...................... 9 NFRA EMOTE ONTROLLER LED O ...................... 10 RONT PANEL PERATIONS ....................

  • Page 3: Precaution

    Precaution Before operating the set, please read this manual carefully. WARNING: To reduce the risk of electric shock does not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. To prevent fire or shock hazard, do not expose the rear of the set to rain or moisture. Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mark, or damage the Active Matrix LCD permanently.
  • Page 4 A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn. Attachments Do not use attachments not recommended by Plura as they may cause hazards. Ventilation Do not block any of the ventilation openings.
  • Page 5 damage and will often require extensive work by a qualified technician to restore the product to its normal operation. If the product has been dropped or the cabinet has been damaged. If the product exhibits a distinct change in performance. 19.

  • Page 6: Including

    Including Supplied Accessories Make sure the following accessories are provided with your product. These should all be included in the box with the main LCD screen Remote Controller Remove the rear cover of the remote controller by pressing the arrow Symbol downwards and then pulling firmly to remove it.
  • Page 7 Ensure that the polarities (+ and -) of the batteries are aligned correctly. Close the cover. Page 7...

  • Page 8: Operations

    Operations Connection Details Interface description Interface Description AC In AC90V ~ 240V, 50Hz/60Hz AC Switch Main Isolating Switch HDMI Input High Definition Multimedia Input DVI-D Type Digital input DVI-D Input High Definition Multimedia Input Compatible PC Input Analog PC Video Input RS-232 Input Facility to control the screen via RS232 protocol input RS-232 Output...

  • Page 9: Infra-Red Remote Controller

    Infra-Red Remote Controller Key Name Descriptions Power Power On/Off Activates main OSD menu. Menu Navigates higher menu in main OSD menu. Exit OSD menu Navigates input source. Executes function (by OSD help commands) in main OSD menu. Navigates previous menu in main OSD menu. Navigates input source.

  • Page 10: Front Panel Led Operations

    *Works only in case of using A/V extension option. Front panel LED Operations Status Color Operation Power Off Normal Green Power Save Blinking No Signal Green Blinking Front Panel Key Descriptions Key Name Operation Power Key Power On/Off. Activates main OSD menu. Menu Key Navigates higher menu in main OSD menu.

  • Page 11: Menu Operation

    Menu Operation In this menu system, there are several ways to customize the menu settings provided. Most menus consist of three levels to set up the options, but some require greater depth for the variety of settings. If you press the MENU button, only the first and second level of the menu system will appear on the monitor screen. The third level can be displayed by pressing SELECT (or ).

  • Page 12: Basic Operation

    BASIC OPERATION Turning On the Monitor 1. First, connect power cord correctly. At this moment, the monitor switches to standby or power on mode. In standby mode, in order to turn monitor on, press the POWER button on the remote control. 2.

  • Page 13: On Screen Menus Selection And Adjustment

    On Screen Menus Selection and Adjustment How to adjust the OSD screen 1. Press the MENU button and then button to select each menu. 2. Press the button and then use button to display the available menus. • Your monitor's OSD (On Screen Display) may differ slightly from what is shown in this manual. Page 13...

  • Page 14: Select Video Input

    Select Video Input How to Select Video Source by OSD (AV extension option) 1. Press the SOURCE button and then button to select each video source. 2. Press the / SELECT button to go to desired video source How to Select Video Source Directly (in case of no AV Extension) 1.

  • Page 15: Picture Menu Options

    Picture Menu Options Picture Mode - Select the picture appearance to suit your preference and viewing situations. 1. Press the MENU button and then button to select the PICTURE icon. 2. Press the button and then use button to select the desired picture option; User, Dynamic, Standard, Movie, Mild.
  • Page 16 Color Temperature Control - Choose one of five automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to cool to see less intense colors with more blue. 1. Press the MENU button and then use button to select the PICTURE icon.
  • Page 17 Video Wall - For quick reset of all the Video menu options to their original factory preset values. 1. Press the MENU button and then use button to select the PICTURE icon. 2. Press the button and then use button to select Video Wall menu. 3.
  • Page 18 Setting the Bezel Corrections for Natural Tiled Image X Gap : Proportional Value of Vertical Bezel to Panel size by Per-mil unit. Y Gap : Proportional Value of Horizontal Bezel to Panel size by Per-mil unit. Page 18...
  • Page 19 PC Menu 1. Press the MENU button and then use button to select the PICTURE icon. 2. Press the button and then use button to select PC Menu. 3. Press button and then use button to make appropriate adjustments. 4. Press EXIT button to return to monitor viewing or press MENU button to return to the previous menu. Page 19...

  • Page 20: Setup Menu Options

    Setup Menu Options Reset Resets user setting values as default 1. Press the MENU button and then use button to select the SETUP icon. 2. Press the button and then use button to select the Reset menu. 3. Press the or SELECT button and then monitor’s user settings are reset as default.
  • Page 21 Clock If current time setting is wrong, reset the clock manually. 1. Press the MENU button and then use button to select the SETUP icon. 2. Press the button and then use button to select Time. 3. Press the button and then use button to select Clock.
  • Page 22 Off Timer Timer function operates only if current time has been set. 1. Press the MENU button and then use button to select the SETUP icon. 2. Press the button and then use button to select Time. 3. Press the button and then use button to select Off Timer.
  • Page 23 OSD Tone Control - Disable blending OSD background with video image. 1. Press the MENU button and then use button to select the SETUP icon. 2. Press the button and then use button to select the OSD Tone menu. 3. Press the button and then use button to select the desired option: Off,...
  • Page 24 Advanced Menu – Dimming (Light Ambient Sensor Option only) - Automatic dimming controls by light sensor in dimming menu. 1. Press the MENU button and then use button to select the SETUP icon. 2. Press the button and then use button to select the Advanced Menu.
  • Page 25 Dimming Level - Controls Inverter dimming level (0V – 3.3V) 1. Press the MENU button and then use button to select the SETUP icon. 2. Press the button and then use button to select the Advanced Menu. 3. Press the button and then use button to select the Dimming Menu.
  • Page 26 Dimming Menu – MIN Dim Ambient (Light Ambient Sensor Option only) - Adjusts detected light ambient to set the minimum dimming 1. Press the MENU button and then use button to select the SETUP icon. 2. Press the button and then use button to select the Advanced Menu.
  • Page 27 Advanced Menu – Heat Control - Automatic Fan controls by internal/external temperature sensor in Dimming menu. 1. Press the MENU button and then use button to select the SETUP icon. 2. Press the button and then use button to select the Advanced Menu. 3.
  • Page 28 Heat Control Menu – Fan Active Temperature - Adjusts fan driving temperature by Celsius degree. It works only when the Fan Control setting is Auto. 1. Press the MENU button and then use button to select the SETUP icon. 2. Press the button and then use button to select the Advanced Menu.
  • Page 29 Advanced Menu – Video Signals - Settings of PC native video signal detection timing. 1. Press the MENU button and then use button to select the SETUP icon. 2. Press the button and then use button to select the Advanced Menu. 3.
  • Page 30 Advanced Menu – Message OSD - Settings of OSD message display – Message OSD display on/off. 1. Press the MENU button and then use button to select the SETUP icon. 2. Press the button and then use button to select the Advanced Menu. 3.
  • Page 31 Advanced Menu – Auto Source Change - Settings of Auto Source Change Mode . – When now source is no signal or not connect, search next source 1. Press the MENU button and then use button to select the SETUP icon. 2.
  • Page 32 Set ID - If use video wall and control each Board, must set ID number of each monitor (01~99). 1. Press the MENU button and then use button to select the SETUP icon. 2. Press the button and then use button to select the Set ID Menu.

  • Page 33: Pip Option (Picture In Picture)

    PiP option (Picture In Picture) - Watch two programs or source at the same time. And set up PIP size and position. 1. Press the MENU button and then button to select the PIP icon. 2. Press the button and then use button to select the desired PIP option;...
  • Page 34 Size 1. Press the MENU button and then use button to select the PIP icon. 2. Press the button and then use button to select the Size Menu. 3. Press the button and then use button to select the desired Size option. 4.
  • Page 35 PIP Blend 1. Press the MENU button and then use button to select the PIP icon. 2. Press the button and then use button to select the PIP Blend Menu. 3. Press the button blend level. PIP Swap 1. Press the MENU button and then use button to select the PIP icon.

  • Page 36: Specifications & Ratings

    English, German, French, Spanish, Portuguese, Italian. RS232-IN DSUB 9 Male Control RS232-OUT DSUB 9 Male Serial Protocol Plura Wall Control S/W AC Input Voltage 90V ~ 240V (50/60Hz) Power Power Consumption 290W (typical) ~ 520W(Max) Operating Temperature 0℃ ~ 40℃ (32...

  • Page 37: Supported

    Supported Video Resolutions Pixel H Frequency V Frequency Section Resolution Frequency Comment ( kHz ) ( Hz ) ( MHz ) 640x400 37.861 85.08 31.5 640x350 31.469 70.087 25.175 640x350 37.861 85.08 31.5 640x480 31.469 59.94 25.175 640x480 35.000 66.667 30.24 640x480 37.861...
  • Page 38 1360x768 47.700 60.0 84.700 Default in DDC 1600x1200 75.000 60.0 162.000 720x480i 15.735 59.94 13.500 720x576i 15.735 50.0 13.595 720x480 31.469 59.94 25.175 720x576 31.250 50.0 26.566 1280x720 44.964 59.94 74.176 1280x720 37.500 50.0 60.466 1920x1080i 33.750 60.0 74.25 (CEA861B) 1920x1080i 28.125 50.0...

  • Page 39: Mechanical Dimension

    Mechanical Dimension Front & Top & Bottom & Side Back Side & Mounting Positions Page 39...

  • Page 40: Trouble Shooting

    Trouble Shooting If monitor seems to have a problem, first check the following list of possible problem and solutions before contacting a service center. If none of these troubleshooting tips apply, do not attempt to service the product by yourself. Call service center.
  • Page 41 There is a problem in PC mode. ( Only PC mode applied) Check the specification of graphic card. Check it whether the signal cable is The signal is out of range. connected or loose. Check the input source. Vertical bar or stripe on background &...
  • Page 42 Notes...
  • Page 43 Plura Broadcast, Inc. - West Coast 2033 W. North Lane Phoenix, AZ 85021 Tel: (602) 944-1044 Fax: (602) 324-9688 Plura Broadcast, Inc. - East Coast 67 Grand Avenue Masapequa, NY 11758 Tel: (516) 997-5675 Fax: (516) 593-7900 PLURADMV0309...
