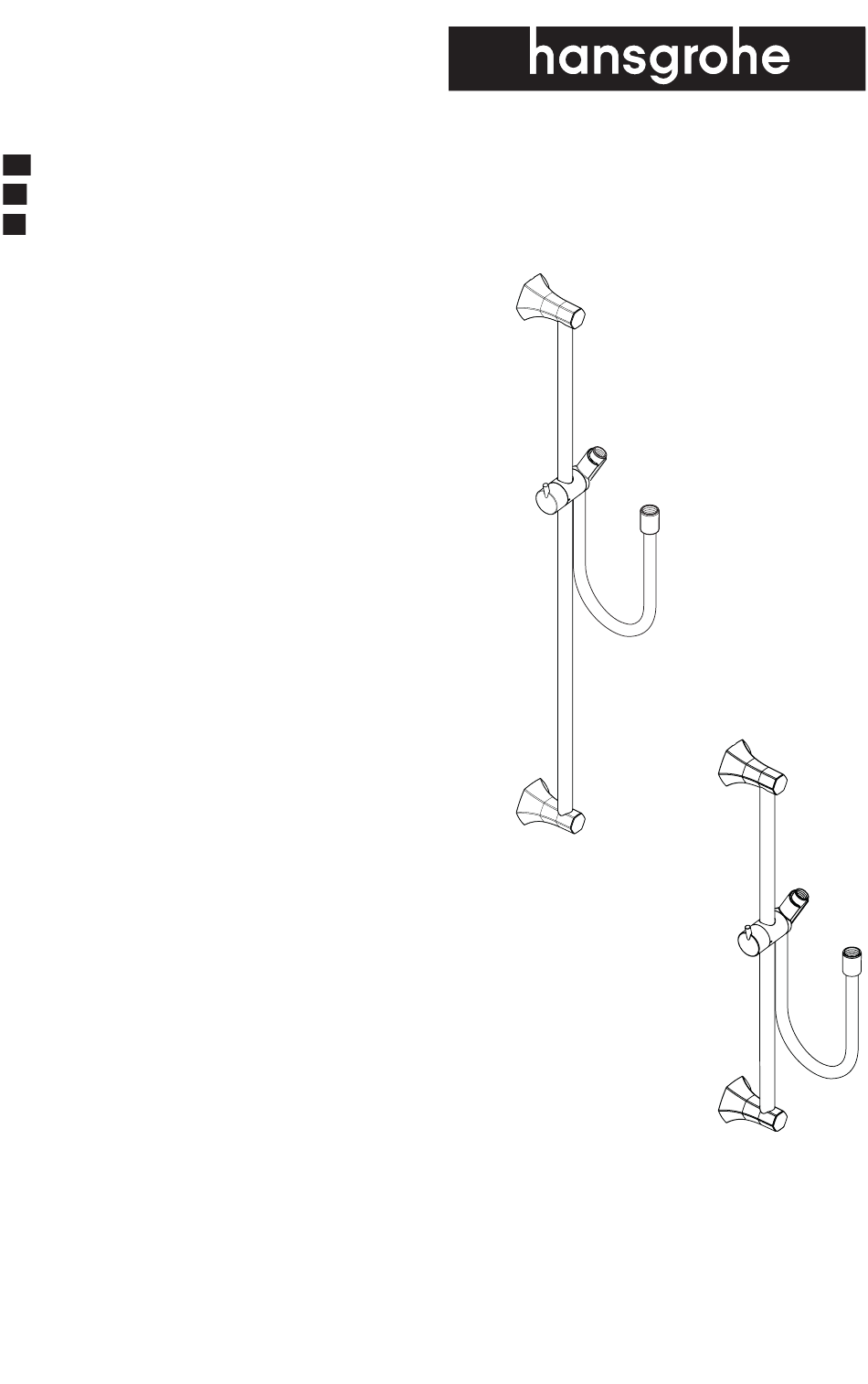

- Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Locarno 04832xx0 Locarno 04829xx0...
-
Page 2: Installation Considerations
English Français Installation Considerations À prendre en considération pour l’installation • For best results, Hansgrohe recommends that this unit be installed by a licensed, professional • Pour de meilleurs résultats, Hansgrohe plumber. recommande que ce produit soit installé par un plombier professionnel licencié. • Please read over these instructions thoroughly before beginning installation. Make sure that • Veuillez lire attentivement ces instructions avant you have all tools and supplies needed to de procéder à l’installation. Assurez-vous complete the installation. - Page 3 Español Consideraciones para la instalación Tools Required / Outiles Utiles / Herramientas Útiles • Para obtener mejores resultados, la instalación debe estar a cargo de un plomero profesional matriculado. ¼" • Antes de comenzar la instalación, lea estas instrucciones detenidamente. Asegúrese de tener las herramientas y los insumos necesarios para completar la instalación. • Los tornillos y pernos de anclaje incluidos en este juego son aptos para utilizar en azulejos u otra superficie sólida de pared.
- Page 4 Locarno Locarno 04832xx0 04829xx0 3½" 3½" 2⅞" (74 mm) 2⅞" (74 mm) (88 mm) (88 mm) 2½" 2½" (64 mm) (64 mm) 2" (51 mm) 2" (51 mm) Ø⅞" (22 mm) Ø⅞" (22 mm)
-
Page 5: Installation / Installation / Instalación
Installation / Installation / Instalación English Français Español Place the template against the Positionnez le gabarit sur le mur. Coloque la plantilla en la wall at the desired location. pared. Confirmez qu'il est à niveau. Level the template. Confirme que es de nivel. Fixez le gabarit sur le mur. Tape the template to the wall. Fije la plantilla a la pared. Drill the holes using a ¼" bit. Percez les trous à l’aide d’une Perfore los orificios con una mèche de ¼ po. broca de ¼". - Page 6 English Français Español Install the anchors. Installez les chevilles. Instale los pernos de anclaje. Seal the wall around the an- Scellez le mur autour des Selle la pared alrededor de chors using waterproof sealant. chevilles à l’aide d’un agent los pernos de anclaje con un d’étanchéité. sellador impermeable.
- Page 7 English Français Español Install the screws. Installez les vis. Instale los tornillos. Install the caps. Installez les capuchons. Instale las tapas.
- Page 8 Replacement Parts / Pièces détachées / Repuestos Locarno 04832xx0 04829xx0 97651xx0 28276xx3 98058000 96179000 xx = Colors / Couleurs / Acabados 00 = Chrome 67 = Matte Black 82 = Brushed Nickel 83 = Polished Nickel...
- Page 9 User Instructions / Instructions de service / Manejo...
- Page 10 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it. For best results: • Prevent the buildup of mineral scale and /or soap residue by cleaning your Hansgrohe product(s) when needed. • Select a cleaning agent specifically intended for the type of product. • Do not use these types of cleaners as they will cause damage to your Hansgrohe product: ´ Any cleaning agent containing hydrochloric acid, formic acid, lye, or acetic acid. ´ Abrasive cleaning powders, pads, or brushes. ´ Steam cleaners. ´ “No rinse” cleaning agents. • Always follow the instructions provided by the manufacturer of the cleaning agent. • Do not mix cleaning agents, unless directed by the manufacturer. • Do not spray cleaners directly onto the product as drops could enter openings and gaps and cause damage. When using spray cleaners, spray the cleaner onto a soft cloth or sponge. • Always rinse your Hansgrohe product thoroughly with clear water and polish dry with a soft cloth after cleaning. Important • Residue from soaps and shampoos can cause damage. Rinse the product with clean water after each use.
-
Page 11: Para Obtener Mejores Resultados
Important • Les residus de produits pour le corps comme les savons liquides, shampooings, gels de douche, teintures pour cheveux, parfums, apres-rasage et vernis a ongles peuvent causer des deteriorations. Rincez le produit avec de l’eau propre après chaque utilisation. • Le résidu provenant des nettoyants pour cuvette/baignoire/carrelage peut endommager les robinets et les raccords de tuyauterie. Rincez immédiatement toute surpulvérisation sur le produit Hansgrohe. • De meme, il est interdit de stocker des detergents ou des produits chimiques sous les produits, par ex. dans un meuble sous lavabo, car les vapeurs qui s’en degagent risquent d’abimer les produits. • Les dommages au produit causés par un mauvais entretien ou par l’utilisation de produits de nettoyage inadéquats ne sont pas couverts par la garantie. • Si un composant du produit est endommagé, remplacez-le, car il existe un risque de blessure. - Page 15 Hansgrohe, Inc. Limited Warranty Offering our customers the highest quality at all times is a funda- • abuse, neglect or improper or incorrectly performed mental part of the Hansgrohe, Inc. company philosophy. We of- installation, maintenance or repair, including the use of fer consumers a limited warranty on our hansgrohe and AXOR abrasive or caustic cleaning agents or “no-rinse” clean- ® ® branded products. ing products. This warranty is limited to products manufactured by Hansgrohe, This warranty does not cover: (i) accessories, connected mate- rials and products, or related products not manufactured by Inc. that are purchased from a Hansgrohe, Inc. authorized seller by a consumer in the United States or Canada after September Hansgrohe, Inc. (ii) any hansgrohe or AXOR product sold for...
- Page 16 TEAR, OUTDOOR USE, MISUSE (INCLUDING USE OF THE This warranty gives you specific legal rights, and you may also PRODUCT FOR AN UNINTENDED APPLICATION), FREEZING have other rights which vary from state to state. WATER, EXCESSIVE WATER PRESSURE, PIPE CORROSION IN PRODUCT I NSTRUC TIONS A ND QUE STIONS THE HOME IN WHICH THE PRODUCT IS INSTALLED, ABUSE, NEGLECT OR IMPROPER OR INCORRECTLY PERFORMED INSTALLATION, MAINTENANCE OR REPAIR, INCLUDING Upon purchase or prior to installation, please carefully inspect THE USE OF ABRASIVE OR CAUSTIC CLEANING AGENTS OR your product for any damage or visible defect. Prior to installing, “NO-RINSE” CLEANING PRODUCTS.
