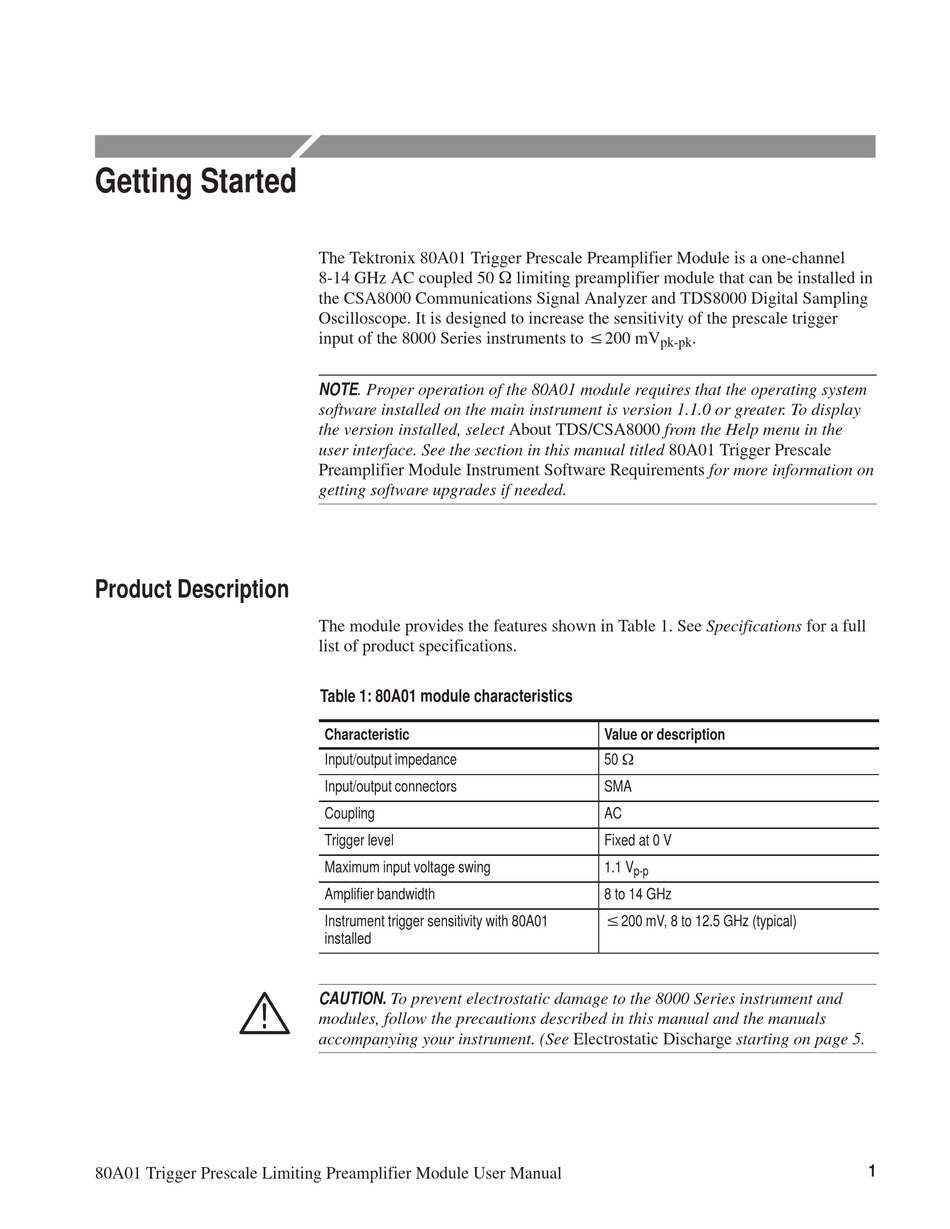

Getting Started

Product Description

80A01 Trigger Prescale Limiting Preamplifier Module User Manual
The Tektronix 80A01 Trigger Prescale Preamplifier Module is a one-channel
8-14 GHz AC coupled 50 W limiting preamplifier module that can be installed in
the CSA8000 Communications Signal Analyzer and TDS8000 Digital Sampling
Oscilloscope. It is designed to increase the sensitivity of the prescale trigger
input of the 8000 Series instruments to v200 mV
NOTE. Proper operation of the 80A01 module requires that the operating system
software installed on the main instrument is version 1.1.0 or greater. To display
the version installed, select About TDS/CSA8000 from the Help menu in the
user interface. See the section in this manual titled 80A01 Trigger Prescale
Preamplifier Module Instrument Software Requirements for more information on
getting software upgrades if needed.
The module provides the features shown in Table 1. See Specifications for a full
list of product specifications.

Table 1: 80A01 module characteristics

Characteristic
Input/output impedance
Input/output connectors
Coupling
Trigger level
Maximum input voltage swing
Amplifier bandwidth
Instrument trigger sensitivity with 80A01
installed
CAUTION. To prevent electrostatic damage to the 8000 Series instrument and
modules, follow the precautions described in this manual and the manuals
accompanying your instrument. (See Electrostatic Discharge starting on page 5.
.
pk-pk
Value or description
50 W
SMA
AC
Fixed at 0 V
1.1 V
p-p
8 to 14 GHz
v
200 mV, 8 to 12.5 GHz (typical)
