Getting Started
2
As shown in the block diagram in Figure 1, there are two identical SMA female
connectors on the front panel: one 50W RF input and one 50W RF output. Input
voltage is passed through the amplifier, allowing trigger sensitivity to drop as
low as 200 mV in the 8–12.5 GHz range
pk-pk
The module receives power through the Tekprobe–Sampling interface. The
Power LED indicates the module is receiving power through the interface
connector.
CAUTION. To prevent electrostatic damage to the 8000 Series instrument and
module, follow the precautions described in this manual and the manuals
accompanying your instrument. (See Electrostatic Discharge starting on
page 5.)

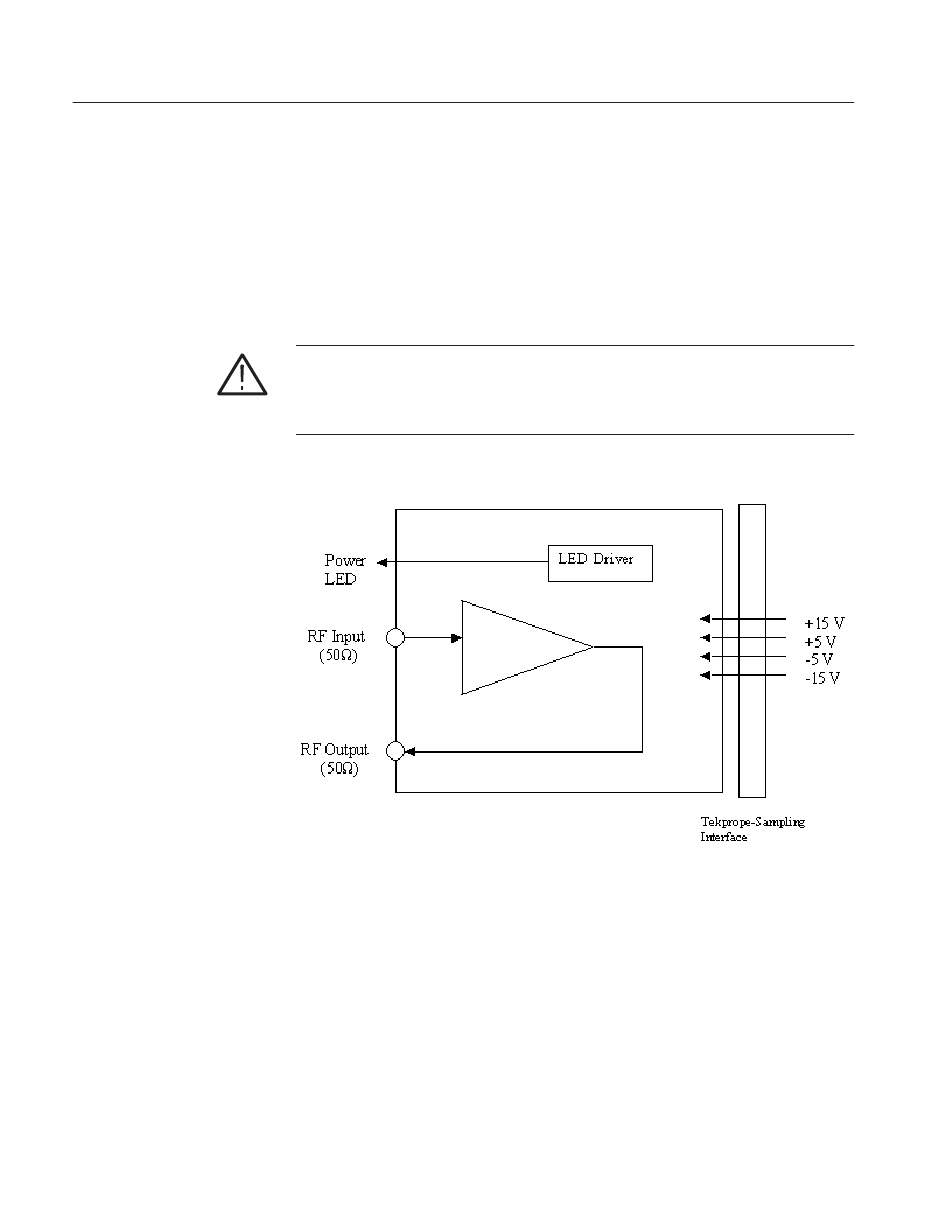

Figure 1: 80A01 module block diagram

80A01 Trigger Prescale Limiting Preamplifier Module User Manual
