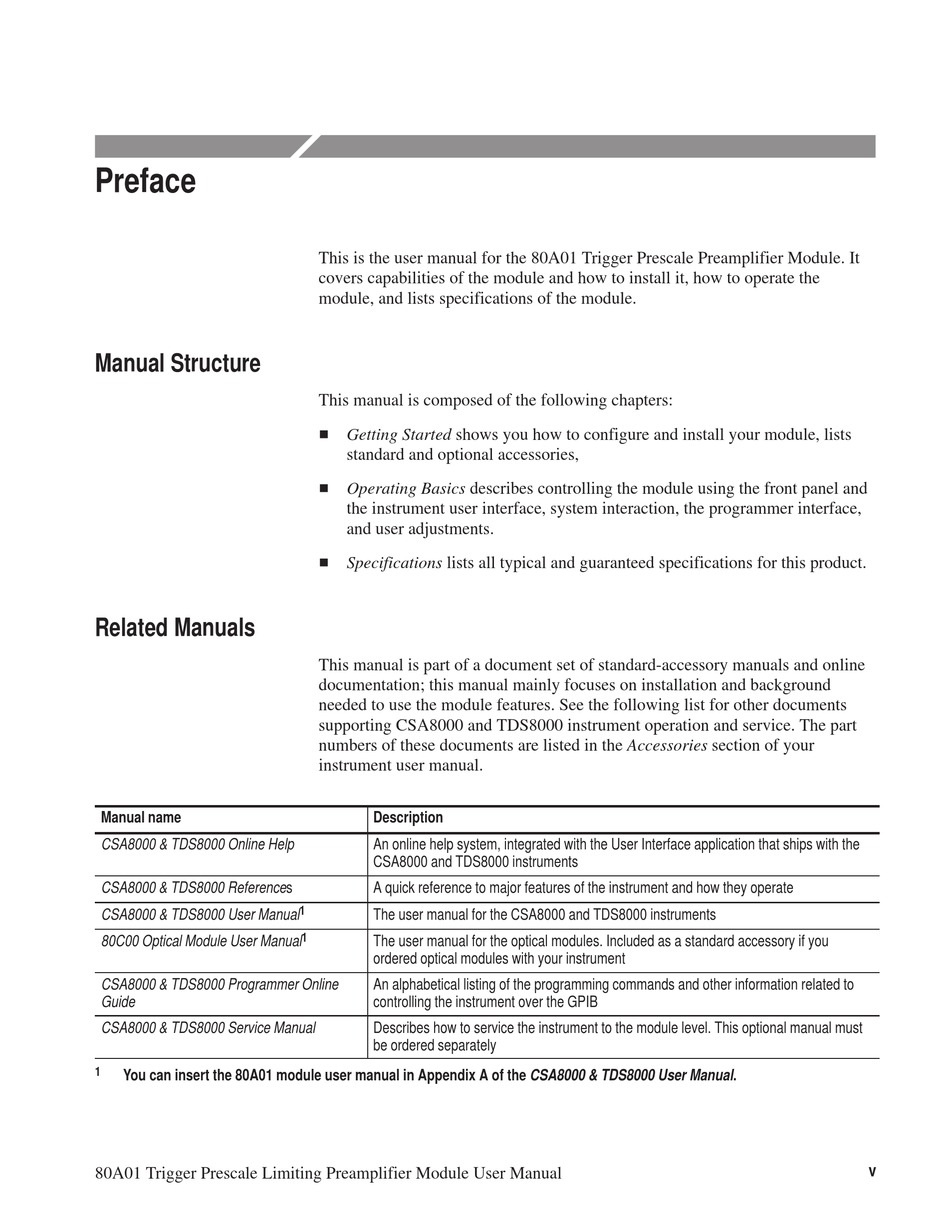

Preface

Manual Structure

Related Manuals

Manual name
CSA8000 & TDS8000 Online Help
CSA8000 & TDS8000 References
CSA8000 & TDS8000 User Manual
80C00 Optical Module User Manual
CSA8000 & TDS8000 Programmer Online
Guide
CSA8000 & TDS8000 Service Manual
1
You can insert the 80A01 module user manual in Appendix A of the CSA8000 & TDS8000 User Manual.
80A01 Trigger Prescale Limiting Preamplifier Module User Manual
This is the user manual for the 80A01 Trigger Prescale Preamplifier Module. It
covers capabilities of the module and how to install it, how to operate the
module, and lists specifications of the module.
This manual is composed of the following chapters:
H Getting Started shows you how to configure and install your module, lists
standard and optional accessories,
H Operating Basics describes controlling the module using the front panel and
the instrument user interface, system interaction, the programmer interface,
and user adjustments.
H Specifications lists all typical and guaranteed specifications for this product.
This manual is part of a document set of standard-accessory manuals and online
documentation; this manual mainly focuses on installation and background
needed to use the module features. See the following list for other documents
supporting CSA8000 and TDS8000 instrument operation and service. The part
numbers of these documents are listed in the Accessories section of your
instrument user manual.
Description
An online help system, integrated with the User Interface application that ships with the
CSA8000 and TDS8000 instruments
A quick reference to major features of the instrument and how they operate
1
The user manual for the CSA8000 and TDS8000 instruments
1
The user manual for the optical modules. Included as a standard accessory if you
ordered optical modules with your instrument
An alphabetical listing of the programming commands and other information related to
controlling the instrument over the GPIB
Describes how to service the instrument to the module level. This optional manual must
be ordered separately
v
