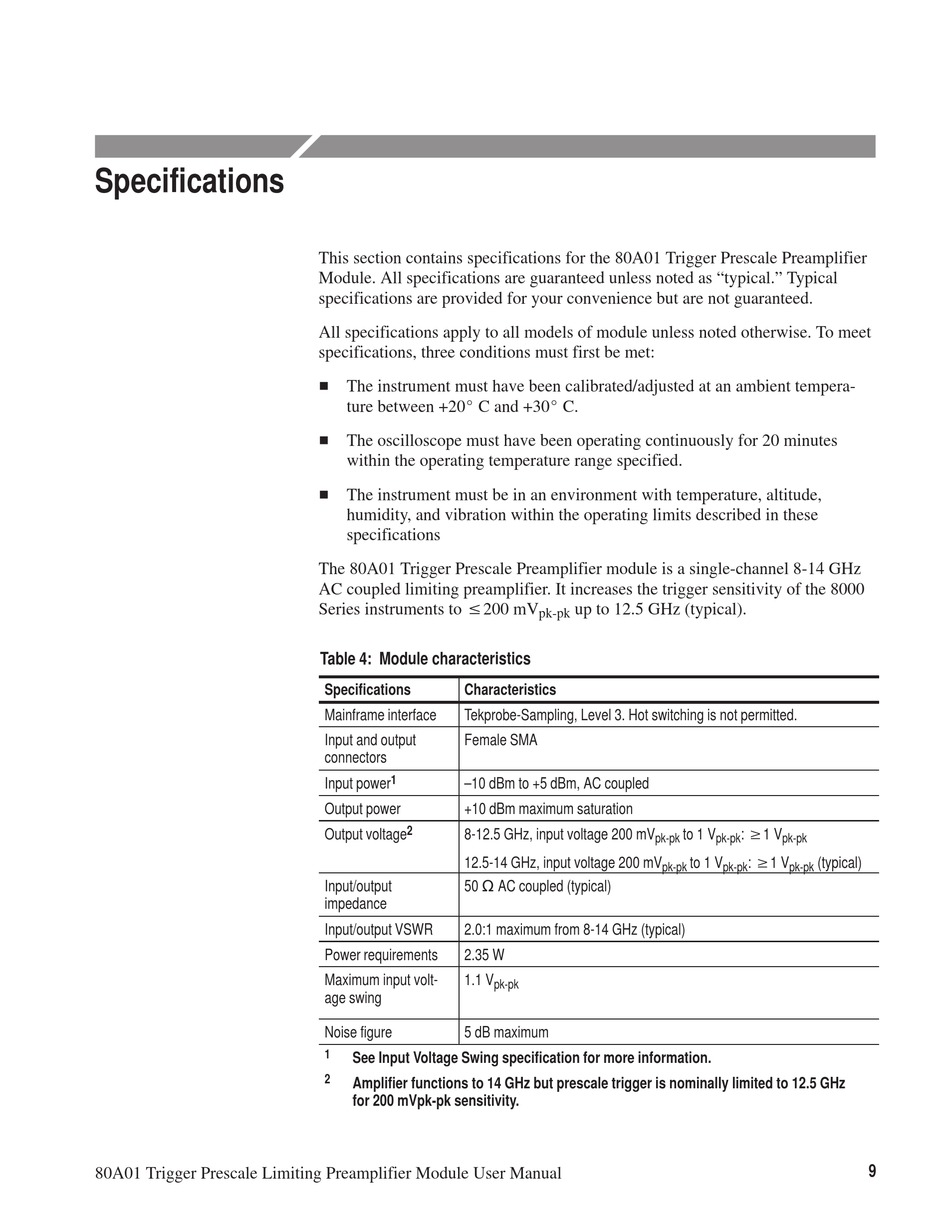

Specifications

80A01 Trigger Prescale Limiting Preamplifier Module User Manual
This section contains specifications for the 80A01 Trigger Prescale Preamplifier
Module. All specifications are guaranteed unless noted as "typical." Typical
specifications are provided for your convenience but are not guaranteed.
All specifications apply to all models of module unless noted otherwise. To meet
specifications, three conditions must first be met:
H The instrument must have been calibrated/adjusted at an ambient tempera-
ture between +20_ C and +30_ C.
H The oscilloscope must have been operating continuously for 20 minutes
within the operating temperature range specified.
H The instrument must be in an environment with temperature, altitude,
humidity, and vibration within the operating limits described in these
specifications
The 80A01 Trigger Prescale Preamplifier module is a single-channel 8-14 GHz
AC coupled limiting preamplifier. It increases the trigger sensitivity of the 8000
Series instruments to v200 mV

Table 4: Module characteristics

Specifications Characteristics
Mainframe interface Tekprobe-Sampling, Level 3. Hot switching is not permitted.
Input and output Female SMA
connectors
1
Input power –10 dBm to +5 dBm, AC coupled
Output power +10 dBm maximum saturation
2
Output voltage 8-12.5 GHz, input voltage 200 mV
12.5-14 GHz, input voltage 200 mV
50 W AC coupled (typical)
Input/output
impedance
Input/output VSWR 2.0:1 maximum from 8-14 GHz (typical)
Power requirements 2.35 W
Maximum input volt- 1.1 V
pk-pk
age swing
Noise figure 5 dB maximum
1
See Input Voltage Swing specification for more information.
2
Amplifier functions to 14 GHz but prescale trigger is nominally limited to 12.5 GHz
for 200 mVpk-pk sensitivity.
up to 12.5 GHz (typical).
pk-pk
to 1 V
pk-pk pk-pk
to 1 V
pk-pk
: w1 V
pk-pk
: w1 V
(typical)
pk-pk pk-pk
9
