Getting Started

Installation

Hold-down screw
4
The 80A01 module fits into one of the small module compartments on the front
panel of an 8000 Series instrument. Figure 2 shows the front panel of an
instrument and the locations of the small module compartments.
To install a module, first power off the instrument using the front-panel
On/Standby switch. Then place the module in a compartment and slowly push it
in with firm pressure. Once the module is seated, turn the hold-down screw on
the module to tighten the module into place. See Figure 2.
CAUTION. To prevent damage to the module or instrument, never install or
remove a module when the instrument is powered-on or when either input
connector is unprotected.
80A01 module

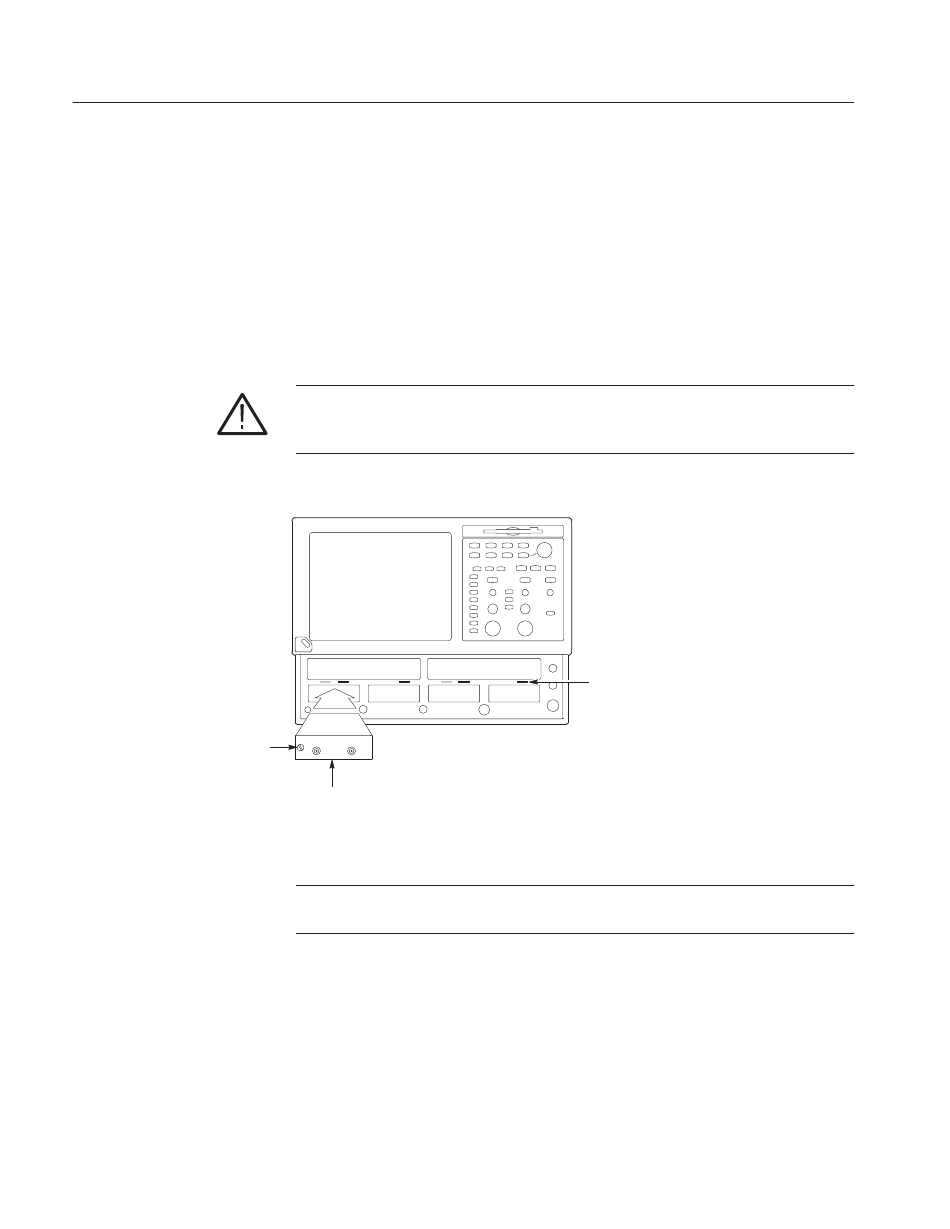

Figure 2: Installing a module

NOTE. When removing your module, first loosen the hold-down screw, then use
the module ejector on the main instrument to eject the module.
80A01 Trigger Prescale Limiting Preamplifier Module User Manual
Small compartment ejectors
