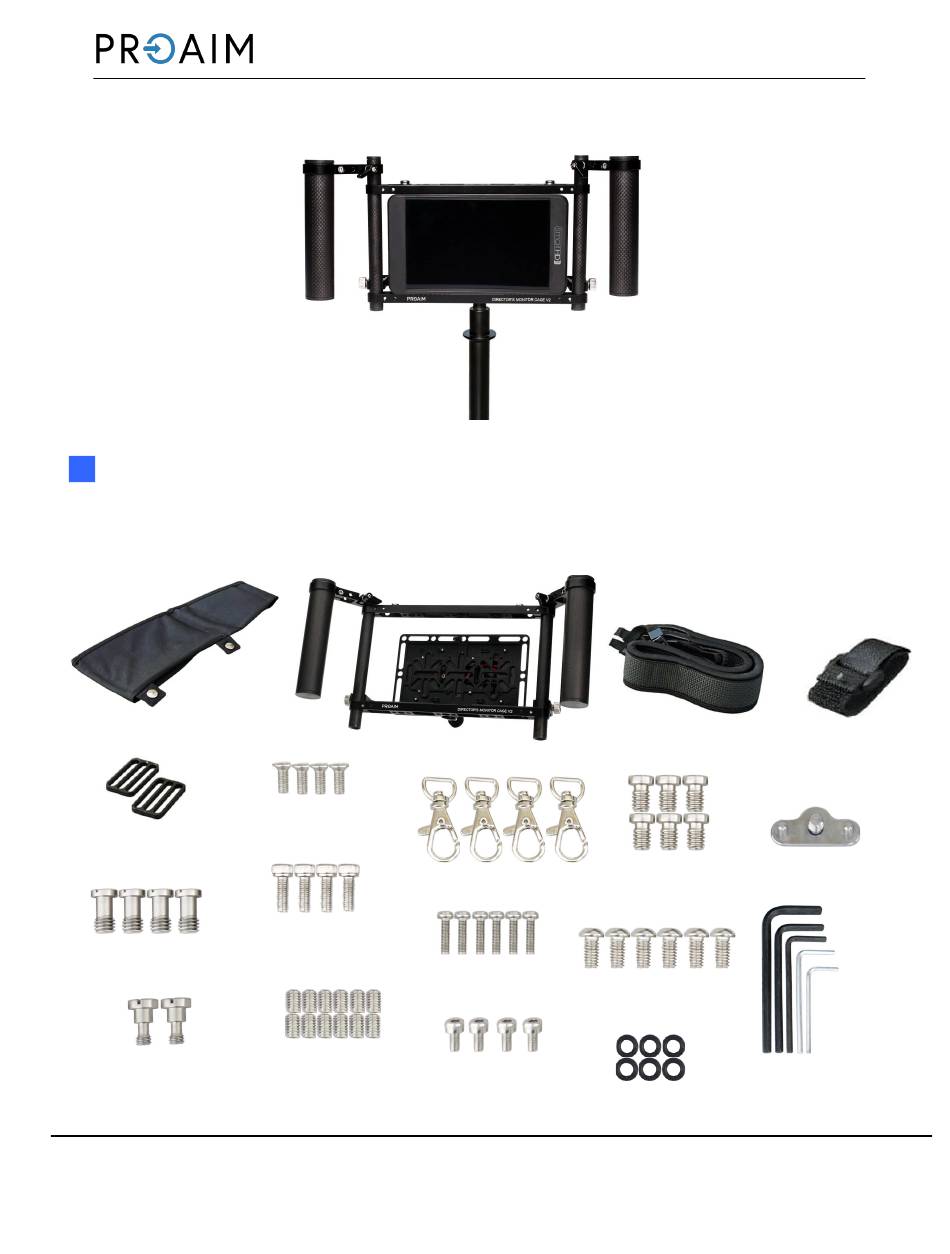

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything
that is listed below.
Sun Shade
2x brackets
(4pcs) 3/8 x 16 mm
LCD mount screw
(2pcs) 1/4 x 14 mm
LCD Mount Screw
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable
Universal 9" Monitor Director Cage (P-DMC-59)
A s s e m b l y M a n u a l
Monitor Cage
(4pcs) 3 x 8 mm
Philips screw
(4pcs)
4 x12 mm LN Bolt
(6pcs) 3 x12mm
pan Philips screw
(12pcs) 6x 4 mm
Gruve screw
All rights reserved.
copyright statutes or in writing by the Publisher.
(6pcs) 1/4 X 9.5
4 x Teradek XT/LT
(6pcs) 1/4 X12.5 mm
(4pcs) 3 x 6 mm
LN Screw
6 x Washer
Neck Strap
1/4 LCD screw
mm LN Screw
BH screw
3/16, 4mm, 3mm,
2.5mm, 2mm
Allen key
1
Velcro Strap
Advertisement
Related Manuals for PROAIM Universal P-DMC-59
Summary of Contents for PROAIM Universal P-DMC-59
- Page 1 Universal 9” Monitor Director Cage (P-DMC-59) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. Sun Shade Neck Strap Velcro Strap...
- Page 2 Monitor Cage Setup Attach the LCD securely into the cage and tighten the screw with the help of provided allen key. Mount the monitor cage into the stand and tighten the provided knob to secure it properly. NOTE: you can adjust the height of the cage according to the LCD monitor.
- Page 3 Slide the v-mount battery and attach the Battery into Battery plate. Push the button of the top battery plate and remove the v-mount Battery. Insert the Sun shade into the provided space in order to attach it with the monitor cage. ...
- Page 4 YOUR PROAIM DIRCTOR’S MONITOR CAGE ALL DRESSED UP AND READY TO GO! Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
