PROAIM Dove Tail Assembly Manual

Mount base plate for camera carts

Dove Tail Mount Base Plate for Camera

Carts

(P-DTP-01)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

2 x (¼" x 1 ¼") Mounting Screws

2 x (¼"x ¾") Screws

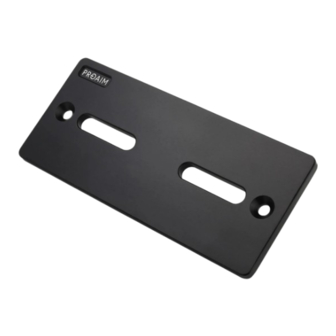

Proaim Dovetail Mount Base Plate

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Do you have a question about the Dove Tail and is the answer not in the manual?

Page 1 Dove Tail Mount Base Plate for Camera Carts (P-DTP-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Mount the dovetail base plate onto the horse-shoe, insert the 2 x (¼”x ¾”) screws aligning the plate and horse-shoe mount threads. Note: Proaim Dovetail Mount Base Plate is designed for Camera Carts. It instantly attaches to horse-shoe mount. ...
Page 3 & 3-axis Gimbals. It adapts cameras like Canon C100 and DSLR Video camera like Red scarlet. YOUR PROAIM DOVE TAIL MOUNT BASE PLATE FOR CAMERA CARTS ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.

P-dtp-01
