Power Suction Mount Camera Gripper
(P-G-PM)
A s s e m b l y M a n u a l

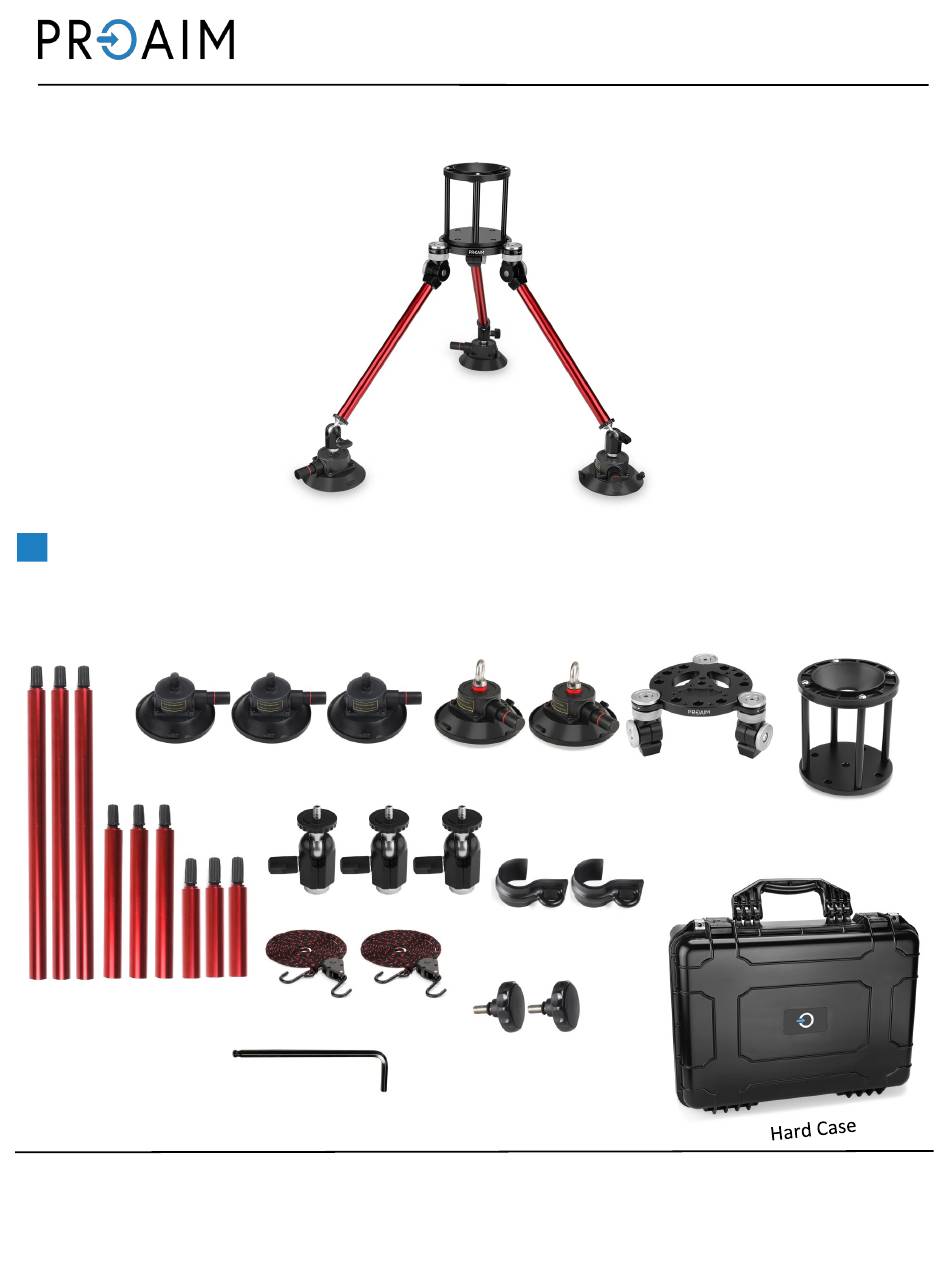

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
3 x Suction Cups with Cap
2 x Suction Cups
Camera Mounting
Platform
100mm Bowl
Adapter
3 x Bowl Head
2 x Ropes Hooks
9 x Aluminum Rods
2 x Ropes
(Size: 30cm,15cm,7.5cm)
2 x Camera Mounting Bolts
(Size: 2 x 1/4" & 3/8")
1 x L-Type
Allen Key (Size:4mm)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PROAIM P-G-PM
Summary of Contents for PROAIM P-G-PM
- Page 1 Power Suction Mount Camera Gripper (P-G-PM) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Camera Mount Gripper Setup Remove the cap from the Suction Cup, and you will see 1/4” thread located in the center, as shown in the image. Remove the dust cover and position the suction cup wherever required. Press down the suction cup and keep pushing the pump to firmly fix it on the surface.
- Page 3 Screw the other end of the aluminum rod (30cm) onto the Ball Tilt head, and then tighten it. Remove the cap of the aluminum rod (15cm), then screw and tighten it properly onto the Ball Tilt head. Repeat the same process for attaching the other aluminum rods.
- Page 4 Attach one end of Rope with metal Hooks to camera mounting platform and another end to Metal loop of Suction cup. Tighten the Rope properly. Adjust the rope with the help of the push-pin button of the hook, as shown in the image. ...
- Page 5 Secure all the bolts using the Allen key. Remove the knob of the Bowl Fluid Head (Not Included) and mount it on the Bowl Adapter . Then, properly tighten and secure the knob of the Fluid Head (Not Included) from the bottom.
- Page 6 Features of Camera Mounting Platform Swivel Adjustments The Camera mounting platform of Power Mount Gripper has three leg attachment points that are each fitted with two positive locking ratchet joints, one for tilt and one for swivel. Each locking ratchet joint has a quick turn knurled lock ring for easy adjustment.
- Page 7 YOUR PROAIM POWER SUCTION MOUNT CAMERA GRIPPER ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
