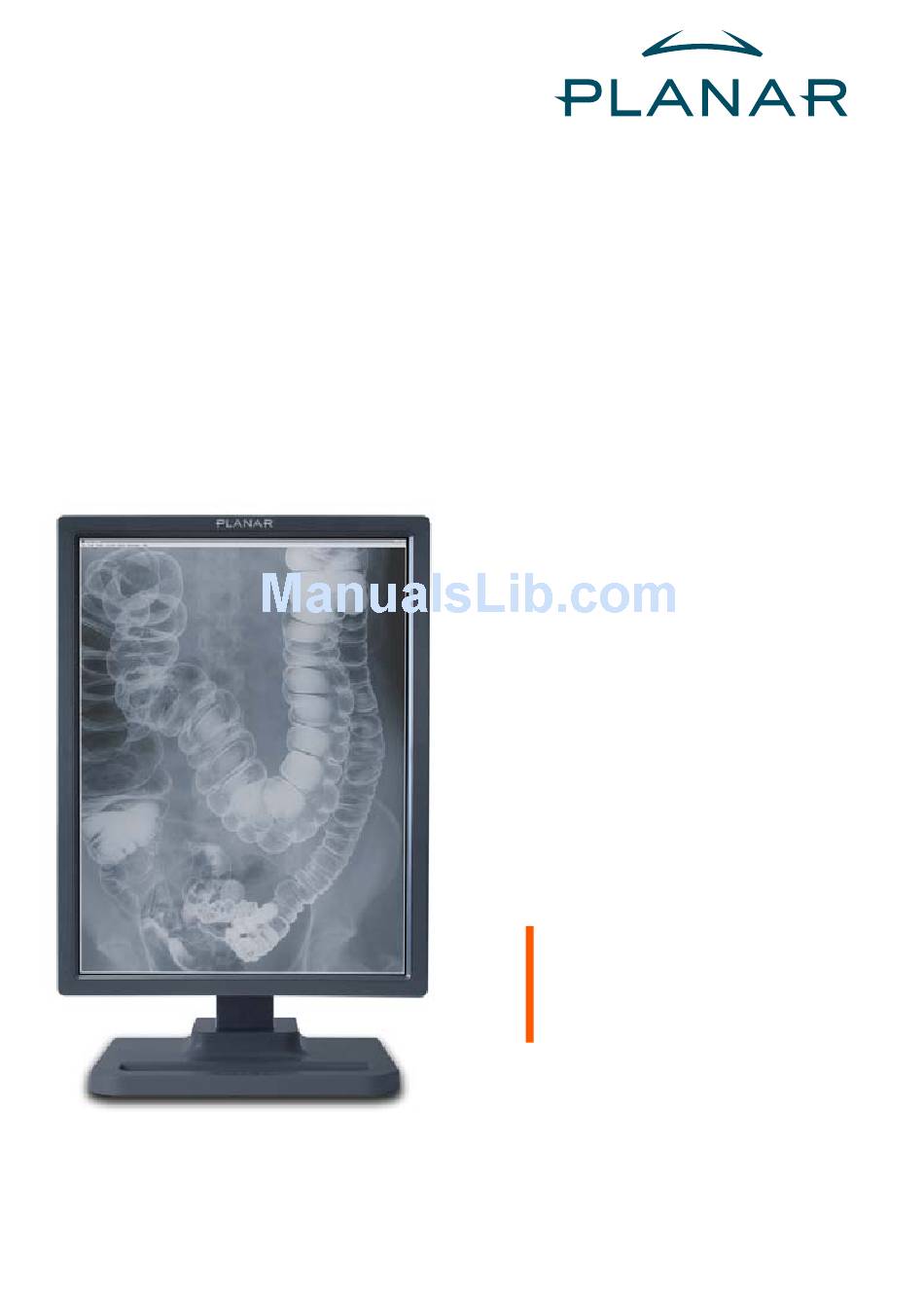

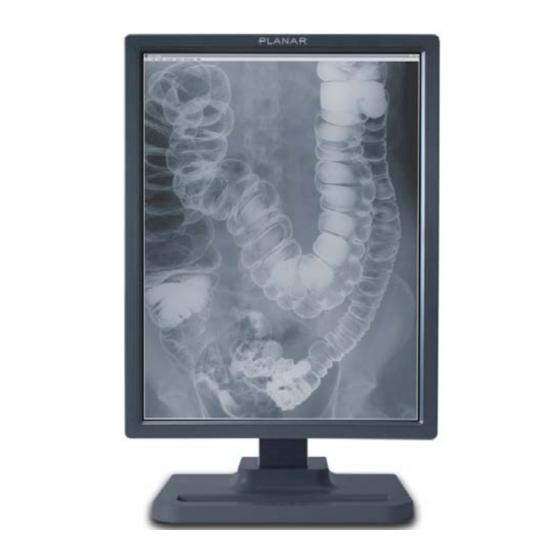

  • Page 1 Dome EX Display MX2/MX3 Display Controller USER’S GUIDE...
  • Page 2 Planar, Dome, Dome E2, Dome E3, Dome CXtra, and RightLight are either registered trademark or trademarks of Planar Systems, Inc. All other trademarks are the property of their respective owners.

  • Page 3: Table Of Contents

    Contents Product Information About the Display Installing the Display Appendix Index Regulatory Compliance Standard Warranty...

  • Page 4: Product Information

    Product Information The design of the Dome EX digital display takes into account every known measure to ensure your personal safety. Improper use of the display can result in electric shock, fire, or damage to the display. Read all instructions before setting up the display. Classification: Important recycle instruction: iv | Dome EX Display...

  • Page 5: Symbol Explanations

    Symbol explanations DISPOSAL. collection services for disposal of electrical and electronic equipment. EU countries require the use of separate recycling collection services. Read the accompanying text carefully, for CAUTION. proper operation and maintenance of the display system. DANGEROUS VOLTAGE. electric shock. Read the accompanying text carefully, to prevent damage to components of the display system and for your safety.

  • Page 6: Safety Precautions

    • To avoid damage to the display, use the grounded power supply and video cable supplied by Planar, or use certified replacements. • Be sure the display is electrically grounded. You must connect the third grounding pin on the US power cord to a grounded outlet.

  • Page 7: Unpacking And Handling Tips

    Unpacking and handling tips The Dome EX display is a precision instrument that requires proper care to maintain product operation and adherence to specification. Unpack the display and components carefully, then set up and handle the unit properly to avoid damage to the LCD panel. •...

  • Page 8: Preventing Fire And Injury

    Preventing fire and injury • Replace the power supply or cables if damaged. • Use only the power source indicated in this guide or listed on the display. • Do not plug the power supply into an overloaded AC outlet or extension cord.

  • Page 9: Disposal Information

    Shipping/storing the display Keep the display in its shipping container until installation. Return the display to its original container whenever you need to store the unit, move it to another location, or return it for repair. The packaging supplied by the manufacturer protects the display while it is in transit.
  • Page 10 AMLCD panel mounted on desk stand DVI cables Display controller DC power adapter Power cords Display driver and calibration software Quick reference...

  • Page 11: About The Display

    Part 14 Standard. The all-digital design enables the display to produce the sharp, crisp images critical to softcopy medical viewing. Use the MX2 display controller to install one or two Dome E2 displays. Install one or two Dome E3 displays using the MX3 display controller.

  • Page 12: Display Components

    2 LED status lights. Provides information about the status of the display. 3 DIN connector. Drives power to the display; 4-pin connector on the Dome E2 display, 8-pin connector on the Dome E3 display. 4 DVI connector. Drives the data to the display. 2 | Dome EX Display...

  • Page 13: Height Range

    Display Positions You can adjust the tilt, height, viewing angle, and orientation of the display to maintain an ergonomic and comfortable viewing position. Make sure that your eyes are level with the top of the display cabinet so that you look downward to read the screen contents. Select a suitable workspace for the display.

  • Page 14: Desk Stand Features

    Desk Stand Features Unfasten the stand lock to adjust display height. Remove the stand cover to thread the power cord and DVI cable connections to the display. To activate the USB hub function, the display must be connected to a USB-compliant computer or another hub with a USB cable.

  • Page 15: Installing The Display

    Installing the Display Before you install the display controller, remove any existing graphics card and its driver from your system. Disable any onboard graphics capability on the motherboard. Warning In locations where 240V outlets are used, connect the Dome EX display only to a center-tapped, 240V, single-phase supply (only for Canada and the United States).
  • Page 16 Install Display Controller Before you install the display controller, make sure your display system is set up in a well-ventilated location with an adequate amount of space. Excessive heat cannot dissipate when display vents are blocked. Make sure a grounded AC outlet is within easy reach. Main (Video 1) connector...
  • Page 17 Leave your computer off. Make sure the power cord is plugged into the grounded outlet. Use only the power adapter and video cables shipped with the Dome EX display. ( For the Dome E2 display, use power adapter Ault MW116KA1249F53. For the Dome E3 display, use power adapter Ault MW122KA1223F52.)

  • Page 18: Install Display Driver

    Install Display Driver Log on with administrator privileges to install the display driver. NOTE: This driver requires the Windows XP operating system. To install the driver Before you install the driver, remove any previously installed display driver from your system. 1 Start your computer system.
  • Page 19 Backlight tab of the RightLight Panel Configuration. To rotate the display 1 Click the PowerDesk icon on the taskbar. See illustration below. 2 Select Monitor Adjustments on the PowerDesk menu. 3 Select Adjust Orientation. 4 Select the degree of rotation.
  • Page 20 To change video setting per display 1 Click the PowerDesk icon on the taskbar. 2 On the PowerDesk menu, select the graphics card representing the display you want to change video settings on, then select Grayscale Setup category. NOTE: Grayscale mode is the installation default. PowerDesk menu 3 Select the grayscale option and the fixed linear gray palette.
  • Page 21 Install Dome CXtra Bundled with the display system, the Dome CXtra software enhances the functionality of the Dome E2 and Dome E3 displays with a range of value-added services, such as DICOM calibration, error reporting, and backlight saver. Network management of Dome displays running the Dome CXtra software require the Enterprise Management Service for Dome CXtra.

  • Page 22: Appendix

    Appendix Troubleshooting Dome E2 Specification Dome E3 Specification Video Modes Connector Ports LED Status Lights Component Removal Power Management 12 | Dome EX Display...

  • Page 23: Troubleshooting

    Troubleshooting Problem No information after installation of video adapter board No image appears on the screen Image is garbled Possible Cause Board not properly installed. Unsupported graphics device. Computer is not powered on. Power cord is not securely connected. Video cable connected incorrectly.
  • Page 24 Dome E2 Specification In locations where 240V outlets are used, connect the Dome E2 display to only a center- tapped, 240V, single-phase supply (only for Canada and the United States). Category Characteristic Item Screen Screen size diagonal Resolution Pixel pitch...

  • Page 25: Power Supply

    Power Supply CAUTION: Use only the power adapter supplied with the Dome E2 display unit; Ault MW116KA1249F53. Category Characteristic Item Power input Voltage selection requirements Voltage Current Frequency Power output Voltage requirements Current Physical Size Weight Reliability Characteristic item Specification Display MTBF >50,000 hours...
  • Page 26 Dome E3 Specification In locations where 240V outlets are used, connect the Dome E3 display to only a center- tapped, 240V, single-phase supply (only for Canada and the United States). Category Characteristic Item Screen Screen size diagonal Resolution Pixel pitch Pixel arrangement Active area (mm) Color supported...
  • Page 27 Power Supply CAUTION: Use only the power adapter supplied with the Dome E3 display unit; Ault MW122RA1223F52. Category Characteristic Item Power input Voltage selection requirements Voltage Current Frequency Power output Voltage requirements Current Physical Size Weight Reliability Characteristic item Specification Display MTBF >50,000 hours Backlight...

  • Page 28: Video Modes

    Video Modes Resolutions expressed in pixels (W x H). Display Resolution Dome E2 1200 x 1600 1600 x 1200 1200 x 1600 1600 x 1200 Dome E3 1536 x 2048 2048 x 1536 1536 x 2048 2048 x 1536 18 | Dome EX Display...

  • Page 29: Connector Ports

    Connector Ports The video signal connector is a standard DVI connector. The Dome E2 display uses a 4-pin DIN connector. The power input is 12V ±5% (80 W). The Dome E3 display uses a 8-pin DIN connector. The power input is 12V ±5% (120 W).

  • Page 30: Led Status Lights

    LED Status Lights The two LEDs on the back panel provide information about the display. • LED A describes the digital-link status between the display controller and the interface. • LED B describes the display-panel status. it shows any faults currently in the panel.
  • Page 31 Power-up sequence information from LED LED A Action/Sequence Dark Initial power-on Blink yellow Self test Dark One (1) second after power -on LED A status information after initial power-on LED Status Solid green Flashing yellow Solid yellow LED B status information after initial power-on LED Status Solid green Flashing green...

  • Page 32: Power Management

    Display Driver Removal Follow the appropriate procedure below to remove the MX driver from your system, or use the Add/Remove Programs of the Windows operating system. To remove the MX driver 1 Close all applications that are running. 2 Navigate to the Control Panel. Select Add/Remove Programs. 3 Select your current display driver.

  • Page 33: Index

    Index brightness, display viii cleaning configuring display connecting DVI cable power cord connector port contents, package desk stand DIN connector display about components configuring controller, installing multi-mode 9, 10 multi-mode, setting positions rotation setting brightness setting rotation display controller, installing display driver, removing display properties, changing disposal...
  • Page 34 9, 10 setting multi-mode setting rotation shipping/storing specification Dome E2 display Dome E3 display symbols, explained system requirements tips installation safety troubleshooting use, intended video card, installing video modes...

  • Page 35: Regulatory Compliance

    (EMC) laws. Planar Systems, Inc. has made great efforts to support the medical device industry, in particular, medical device manufacturers and medical device system integrators. We offer state-of-the-art color displays that are compliant...
  • Page 36 Planar Systems, Inc., located in Beaverton, Oregon, USA, is the manufacturer of these displays in the meaning of the directive. As required by the MDD in Article 14, Planar Systems, Inc., not residing in the European Economic Area (EEA), has a European representative, Planar Systems, Inc.—Olarinluoma 9, P.
  • Page 37 EU Declaration of Conformity for Medical Application A Declaration of Conformity has been filed for this product. For additional copies of the Declaration of Conformity document, contact Planar Systems. The Dome EX digital flat-panel display meets the essential health and safety...

  • Page 38: Display Unit

    U.S. FCC Compliance Statement Display Unit This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 39 Australian C-Tick Australian Communications Authority regulating product EMC compliance. China China Compulsory Certification regulating safety and EMC. GB4943-2001 GB9254-1998 (Class A) CB17625.1-2003 Japan VCCI Voluntary Control Council for Interference by information technology equipment sold in Japan. Korea MIC Mark Ministry of Information and Communications.

  • Page 40: Standard Warranty

    +358 9 420 0200. Have the model number, serial number, and proof-of-purchase available. 2 Planar customer service staff will attempt to correct any minor issues that may be causing the problem. If we are unable to correct the problem to your satisfaction, we will issue a Return Material Authorization (RMA).

  • Page 41: Limitation Of Implied Warranties

    THE DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Exclusion of Damages THE LIABILITY OF PLANAR IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. PLANAR SHALL NOT BE LIABLE FOR THE FOLLOWING:...
  • Page 42 America Sales Planar Systems, Inc. 1195 NW Compton Drive Beaverton, OR 97006-1992 USA (503) 748-1100 phone (503) 748-1493 fax Medical Sales Planar Systems, Inc. 400 Fifth Avenue Waltham, MA 02451-8738 USA (781) 895-1155 phone (781) 895-1133 fax medicalsales@planar.com medicalsupport@planar.com www.planar.com...
