Planar E2c Display User Manual

Planar systems user's guide lcd flat panel tv e2c display
Hide thumbs Also See for E2c Display:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Reference Manual
Dome E2c Display
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E2c Display and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planar E2c Display

Summary of Contents for Planar E2c Display

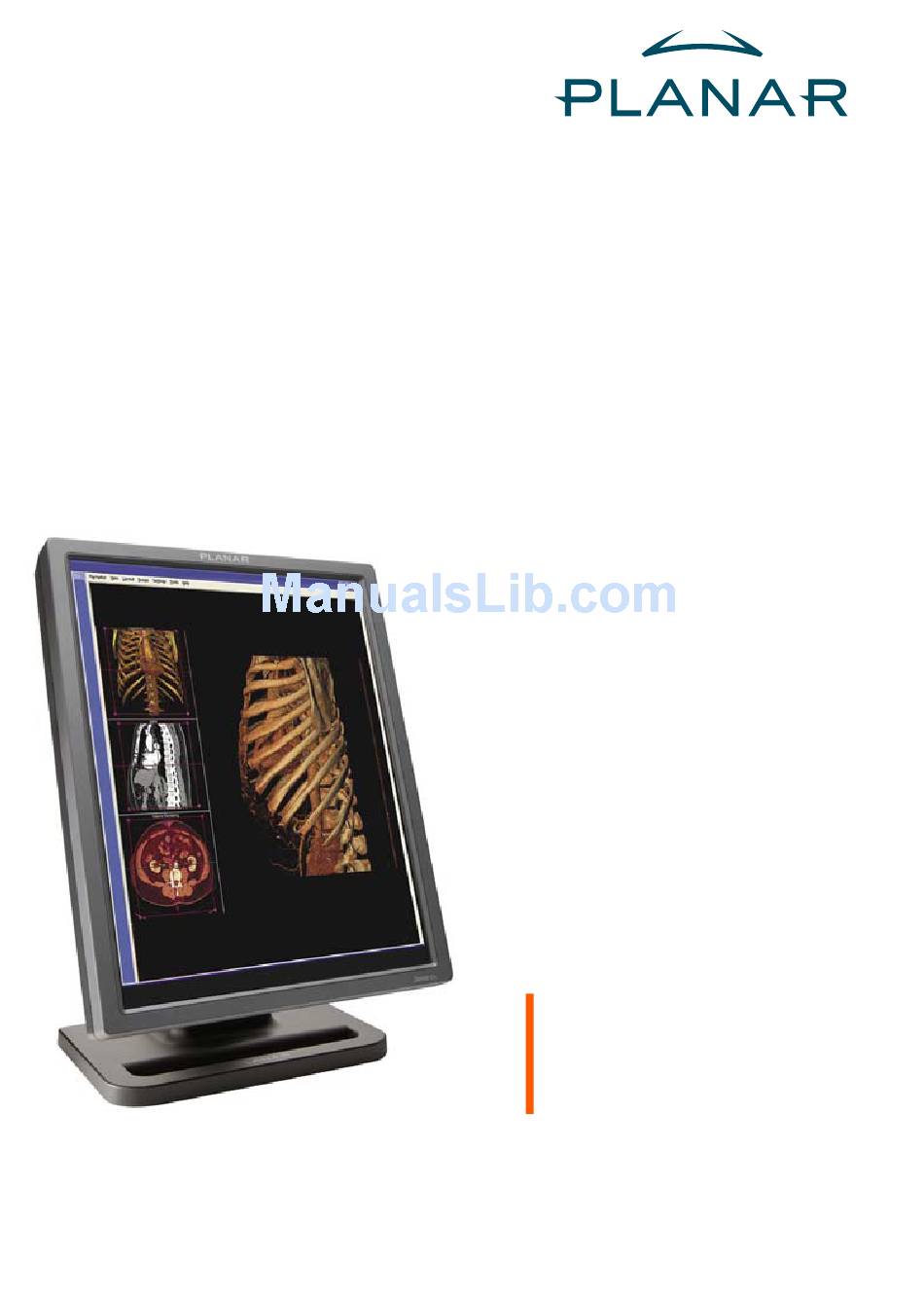

  • Page 1 Dome E2c Display User’s Guide...
  • Page 2 Planar, Dome, Dome E2c, Dome CXtra, RightLight are either registered trademark or trademarks of Planar Systems, Inc. All other trademarks are the property of their respective owners. 020-0459-00A...

  • Page 3: Table Of Contents

    Contents Product Information About the Display Installing the Display Appendix Index Regulatory Compliance Standard Warranty...

  • Page 4: Product Information

    Read all instructions before setting up the display. Classification: Important recycle instruction: iv | Dome E2c Display Shock Protection: Class I. Degree of Protection Against Electric Shock: No applied part. Degree of Protection Against Harmful Ingress of Water: Ordinary equipment (IPX0).

  • Page 5: Symbol Explanations

    (non-condensing). TEMPERATURE. Intended use The Dome E2c display is an AMLCD display designed for viewing medical X-ray images. This unit should not be used near patients and should be kept outside of 1.83 m perimeter and 2.29 m vertical. This device must not be used in primary image diagnosis in mammography.

  • Page 6: Safety Precautions

    • To avoid damage to the display, use the grounded power supply and video cable supplied by Planar, or use certified replacements. • Be sure the display is electrically grounded. You must connect the third grounding pin on the US power cord to a grounded outlet.

  • Page 7: Unpacking And Handling Tips

    Unpacking and handling tips The Dome E2c display is a precision instrument that requires proper care to maintain product operation and adherence to specification. Unpack the display and components carefully, then set up and handle the unit properly to avoid damage to the LCD panel.

  • Page 8: Cleaning The Display

    Wipe liquids off immediately to prevent damage to the display case and the screen. COUPER L’ALIMENTATION AVANT L’ENTRETIEN ET LE DEPANNAGE viii | Dome E2c Display WARNING DISCONNECT SUPPLY BEFORE SERVICING...

  • Page 9: Disposal Information

    Shipping/storing the display Keep the display in its shipping container until installation. Return the display to its original container whenever you need to store the unit, move it to another location, or return it for repair. The packaging supplied by the manufacturer protects the display while it is in transit.
  • Page 10 AMLCD panel mounted on desk stand Display controller DC power adapter Power cords Display driver and Quick reference calibration software DVI cable Also included: Composite video, S-video, and VGA cables...

  • Page 11: About The Display

    DICOM Part 14 Standard. Bundled with the display system, the Dome CXtra software enhances the functionality of the Dome E2c display with a range of value-added services, such as DICOM calibration, error reporting, and backlight saver. Network management of Dome displays running the Dome CXtra software requires the Enterprise Management Service for Dome CXtra.

  • Page 12: Display Components

    5 C-Video, composite video analog input port. Requires an RCA or phono connector. 6 DVI. DVI-I video input port. Supports DVI-D digital or VDVI-A analog video. Requires DVI connector. 7 VGA. VGA video analog inputport. Requires an HD15 D-Sub or VGA connector. 2 | Dome E2c Display...

  • Page 13: Viewing Angle

    Display Positions You can adjust the tilt, height, viewing angle, and orientation of the display to maintain an ergonomic and comfortable viewing position. Make sure that your eyes are level with the top of the display cabinet so that you look downward to read the screen contents. Select a suitable workspace for the display.

  • Page 14: Desk Stand Features

    USB ports of the display. Stand height lock Stand cable cover USB hub 4 | Dome E2c Display Move the stand lock lever to the left to adjust the height of the display. Press the PUSH button at the...

  • Page 15: Installing The Display

    Installing the Display Before you install the display controller, remove any existing graphics card and its driver from your system. Also disable any onboard graphics capability on the motherboard. Warning • In locations where 240V outlets are used, connect the Dome E2c display only to a center-tapped, 240V, single-phase supply (only for Canada and the United States).

  • Page 16: Install The Display Controller

    3 Secure the mounting bracket, and reattach the computer cover and the peripherals. Note Diagnosis requiring DICOM calibration with the Dome CXtra software can only be supported on the DVI-D interface. 6 | Dome E2c Display...
  • Page 17 Connect the Video and Power Cables Use only the power adapter (Ault MW122KA1223F52), power cord, and the video cable shipped with the Dome E2c display. To connect the cables 1 Plug one end of the DVI cable into the DVI port on the connector plate.

  • Page 18: Install The Display Driver

    4 Click Yes to the license agreement. The installation starts. 5 Follow the onscreen instructions to complete the installation. Planar recommends that you select the Express installation option. 6 When the Setup Complete message appears, select Yes, I want to restart my computer now, and click Finish.
  • Page 19 3 Set the resolution and color quality for the second display. 4 Click Apply or OK. To set brightness You can change the brightness of the Dome E2c display using the Display Properties dialog of the Windows operating system. However, when DICOM auto-calibration is running, you must control display brightness via the Dome CXtra software.

  • Page 20: Appendix

    Appendix Troubleshooting Dome E2c Specification Video Modes Video Timing Connector Ports LED Status Lights Component Removal Power Management 10 | Dome E2c Display...

  • Page 21: Troubleshooting

    Troubleshooting Problem No image appears on the screen Conflict with driver version Possible Cause Computer is not powered on. Power cord is not securely connected. Video cable connected incorrectly. A previous version of the display driver is still installed on the computer system.
  • Page 22 Dome E2c Specification In locations where 240V outlets are used, connect the Dome E2c display only to a center- tapped, 240V, single-phase supply (only for Canada and the United States). Category Characteristic Item Screen Screen size diagonal Native resolution Colors supported...

  • Page 23: Power Supply

    Power Supply CAUTION: Use only the power adapter supplied with the Dome E2c display unit; Ault MW122KA1223F52. Category Characteristic Item Power input Voltage selection requirements Voltage Current Frequency Power output Voltage requirements Current Physical Size Weight Reliability Characteristic item Specification Display MTBF >50,000 hours...

  • Page 24: Video Modes

    640x480 Apple Mac II 640x480 Apple Mac 832x624 Apple Mac 1024x768 Sun Micro 1152x900 Sun Micro 1152x900 14 | Dome E2c Display Orientation Palette Portrait True color Landscape Vertical Refresh (Hz) Bits per pixel Horizontal Scan (Khz) 31.5 31.5 31.5 37.9...

  • Page 25: Connector Ports

    Diagnosis requiring DICOM calibration with the Dome CXtra software can only be supported on the DVI-D interface. The Dome E2c display use an 8-pin DIN connector. The power input is 12V ±5% (120 W). See below for details of the DIN connector.
  • Page 26 The LED indicator on the connector plate provides information on the display status. Reset (left) and LED on connector plate LED Indication Solid green Flashing green Solid yellow Flashing yellow Dark 16 | Dome E2c Display Description Operating with signals Operating without signals Fault condition Testing/Loading OFF/No power...
  • Page 27 Display Driver Removal Follow the appropriate procedure below to remove the AX1 driver from your system. To remove the AX1 driver 1 Close all applications that are running. 2 Navigate to the Control Panel and select Add/Remove Programs. 3 Select your current graphics card drivers and select Add/Remove. Follow the wizard to remove your current display drivers.

  • Page 28: Power Management

    Screen Saver) automatically turns the backlight off during the period of inactivity. Backlight Saver and Screen Saver both extend the life of the backlight and reduce burn-in of images. Do not use the Backlight Saver and Screen Saver concurrently. 18 | Dome E2c Display...

  • Page 29: Index

    Index brightness, display viii cleaning configuration, dual setup connecting DVI cable power cord connector port contents, package desk stand DIN connector display about brightness components controller, installing install orientation positions properties, changing disposal driver installing removing dual configuration DVI cable, connecting information product technical...

  • Page 30: Regulatory Compliance

    (EMC) laws. Planar Systems, Inc. has made great efforts to support the medical device industry, in particular, medical device manufacturers and medical device system integrators. We offer state-of-the-art color displays that are compliant...
  • Page 31 Planar Systems, Inc., located in Beaverton, Oregon, USA, is the manufacturer of these displays in the meaning of the directive. As required by the MDD in Article 14, Planar Systems, Inc., not residing in the European Economic Area (EEA), has a European representative, Planar Systems, Inc.—Olarinluoma 9, P.
  • Page 32 EU Declaration of Conformity for Medical Application A Declaration of Conformity has been filed for this product. For additional copies of the Declaration of Conformity document, contact Planar Systems. The Dome EX digital flat-panel display meets the essential health and safety...
  • Page 33 U.S. FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 34 Australian C-Tick Australian Communications Authority regulating product EMC compliance. China China Compulsory Certification regulating safety and EMC. GB4943-2001 GB9254-1998 (Class A) CB17625.1-2003 Japan VCCI Voluntary Control Council for Interference by information technology equipment sold in Japan. Korea MIC Mark Ministry of Information and Communications.

  • Page 35: Standard Warranty

    +358 9 420 0200. Have the model number, serial number, and proof-of-purchase available. 2 Planar customer service staff will attempt to correct any minor issues that may be causing the problem. If we are unable to correct the problem to your satisfaction, we will issue a Return Material Authorization (RMA).

  • Page 36: Limitation Of Implied Warranties

    Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product. b) Repair or attempted repair by anyone not authorized by Planar. c) Any damage of the product due to shipment. d) Removal or installation of the product.
  • Page 37 Exclusion of Damages THE LIABILITY OF PLANAR IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. PLANAR SHALL NOT BE LIABLE FOR THE FOLLOWING: 1 DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF...
  • Page 38 America Sales Planar Systems, Inc. 1195 NW Compton Drive Beaverton, OR 97006-1992 USA (503) 748-1100 phone (503) 748-1493 fax Medical Sales Planar Systems, Inc. 400 Fifth Avenue Waltham, MA 02451-8738 USA (781) 895-1155 phone (781) 895-1133 fax medicalsales@planar.com medicalsupport@planar.com www.planar.com...
