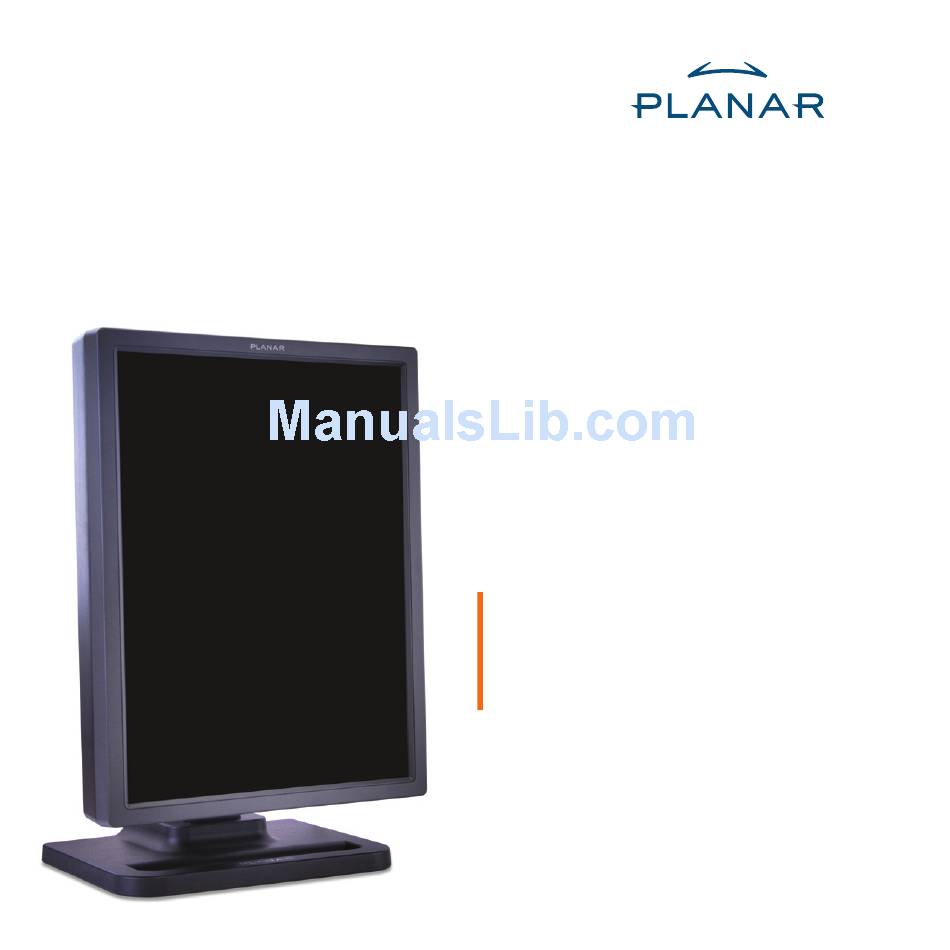

- Page 1 Dome EX Displays MX2/MX3 Display Controller Reference Guide Windows XP Windows 2000...
-
Page 2: Before You Begin
Before You Begin Check that your system meets these requirements for installation of a Dome EX display system. EX Display Controller Dome E2 Dome E3 Safety Precaution Wear an antistatic heel or wrist strap when installing the video card to avoid damage to computer components. -
Page 3: Unpacking The Display
Unpacking the Display Check the contents of your Dome EX display package for all the items shown here. Save the original packaging materials for storage and shipping. Dome EX digital fl at panel Power block DVI-to-DVI video cable Display controller Dome EX and Dome CXtra quick references Power cord... -
Page 4: Display Components
LED status lights. Provides information about the status of the display. DIN connector. Drives power to the display; 4-pin connector on the Dome E2 display, 8-pin connector on the Dome E3 display. DVI connector. Drives the data to the display. -
Page 5: Installing The Display Controller
Installing the Display Controller See safety precautions on page 2. Remove any existing graphics card and its driver from your computer system before you install the MX2 or MX3 board and driver. Also disable any onboard graphics capability on the motherboard. To install the controller 1 Turn off your computer and all peripherals. -
Page 6: Connecting The Display
Connecting the Display Use only the cable and power cord supplied with the Dome EX display. To connect the display 1 Plug one end of the DVI cable into the DVI connector port. Tighten the thumbscrews to secure the connection. 2 Plug the power cord into the power input port. -
Page 7: Installing The Display Driver
1 Right-click the desktop and select Properties > Settings. 2 Use the native resolution of the display. 3 For use of the second display, select Extend my Windows desktop onto this monitor. 4 Click OK until you return to the desktop. -
Page 8: Adjusting Display Properties
Adjust the value of the white level on the Backlight tab of the RightLight Panel Confi guration. To rotate the display 1 Click the PowerDesk icon on the taskbar. 2 Select Monitor Adjustments on the PowerDesk menu. 3 Select Adjust Orientation. 4 Select the degree of rotation. 5 Click OK. - Page 9 To change video setting per display 1 Click the PowerDesk icon on the taskbar. 2 On the PowerDesk menu, select the controller representing the display you want to change video settings on, then select Grayscale Setup category. NOTE: Grayscale mode is the installation default. 3 Select the grayscale option and the fi xed linear gray palette.
- Page 10 Display Resolutions and Palette Options Display Resolution Dome E2 1200 x 1600 1600 x 1200 1200 x 1600 1600 x 1200 Dome E3 1536 x 2048 2048 x 1536 1536 x 2048 2048 x 1536 Palette Bits per pixel Grayscale...
-
Page 11: Cleaning The Lcd Screen
Cleaning the LCD Screen Do not spray or use acetone, toluene, or harsh solvents on the display case or screen. Chemical cleansers may cause damage to the display. Use a dry, clean, lint-free cotton cloth to remove surface dust from the display screen. Do not use chemically treated dust cloths. - Page 12 Customer Support Visit www.planar.com E-mail: medicalsupport@planar.com Call (866) PLANAR1 Copyright © 2006 Planar Systems, Inc. Planar is a registered trademark of Planar Systems, Inc. Technical information in this document is subject to change without notice. 020-0491-00A Europe Sales European Representative Planar Systems, Inc.
