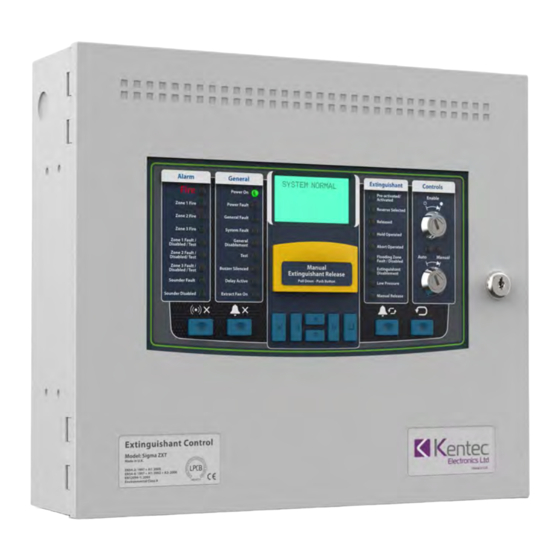

- Page 1 Extinguishant Control Panel Sigma ZXT Quick Start Guide *Man-1450EN* Man-1450EN Rev. 04 Sigma ZXT Quick Start Guide...
- Page 2 This equipment is certified as environmental class A and therefore designed for indoor use only at temperatures between -10°C and +45°C with a maximum relative humidity of 95%. The IP rating for the enclosure is IP30. Operation outside of these limits may render the equipment unsafe. Man-1450EN Rev. 04 Sigma ZXT Quick Start Guide...
-
Page 3: What's In The Box
• QR Codes • Panel at a Glance • Connection Terminals • Compliance • Terms & Conditions What’s in the box? The Sigma ZXT includes the following components and hardware. Figure A-1 Items in the box (NOT TO SCALE) Control Pre-mounted Enclosure... - Page 4 Sigma ZXT Quick Start Guide QR Codes The QR codes below provide links to the Sigma ZXT Installation and Operation Manuals. Using your Smartphone, tablet or device (where necessary) install a third party QR Code Reader and scan the code to open the documents.
- Page 5 Sigma ZXT Quick Start Guide Panel at a Glance The diagrams below provide an overview of the panel main components and features: Figure A-3 Sigma ZXT Front Fascia 9 10 11 1. Panel enclosure 9. Silence buzzer push button 2. Control Panel fascia 10.
- Page 6 Sigma ZXT Quick Start Guide Figure A-4 Sigma ZXT Standard Enclosure Internal Layout ZONE 1 ZONE 2 ZONE 3 PROG I/P FAULT FIRE RELEASED MODE HOLD ABORT HOLD ABORT MAN. MODE REL PRES. LOW PRES. DIS EXTG EXTING. RS485 AUX24...
- Page 7 Sigma ZXT Quick Start Guide Figure A-5 Sigma ZXT Large Enclosure Internal Layout ZONE 1 ZONE 2 ZONE 3 PROG I/P FAULT FIRE RELEASED MODE HOLD ABORT HOLD ABORT MAN. MODE REL PRES. LOW PRES. DIS EXTG EXTING. RS485 AUX24...
- Page 8 4. Temporarily remove enclosure from centre fixing, make lower fixings. 5. Re-hang enclosure and tighten all three fixings. The diagram below can be referred to for fixing centres/enclosure sizes. Refer to Sigma ZXT Installation Manual throughout. Important! Ensure the panel is installed on a suitable, clean, dry flat vertical surface.
-
Page 9: Connection Terminals
Sigma ZXT Quick Start Guide Connection Terminals The diagram below shows panel connection terminals. Note: Power connection is made directly to the Power Supply mains input terminals (L,N,E), located behind control fascia. Figure A-7 Connection Terminals D D D ZONE 1... - Page 10 Delay of the actioning of fire alarm devices (sounders) so that an alarm may be verified before a premise is evacu- ated. EN54-2 Section 7.11 In addition to the requirements of EN54-2, Sigma ZXT Control Panels have a voltage free relay contact for fire which operates upon a fire condition. This is to be used for local control and signalling.
-
Page 11: Rating Label
Sigma ZXT Quick Start Guide Rating Label Kentec Electronics Ltd. Dartford DA1 1JQ U.K. 2831-CPR-F4442 360d/01 EN 54-2:1997 + A1: 2006 EN 54-4:1997 + A1: 2002 + A2: 2006 SIGMA ZXT - Control and indicating equipment for fire detection and fire... -
Page 12: Terms And Conditions
Sigma ZXT Quick Start Guide Terms and Conditions Details of Kentec Electronics Ltd. Terms and Conditions including Warranties and Returns & Repair Policies can be found on our website at the following locations: Terms, Conditions & Warranty https://kentec.co.uk/terms-and-conditions/ Returns & Repairs http://www.kentec.co.uk/returns-and-repairs/...
