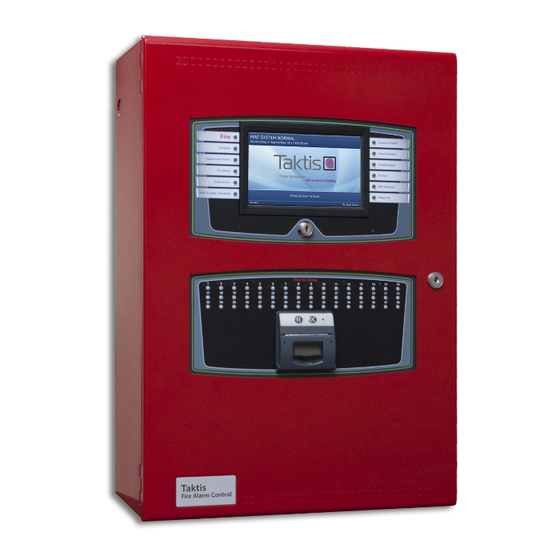

Taktis Fire Alarm Control Panel

Installation Manual

UL Version 1.04 | May 2020 | MAN-1431KE

Table of Contents

Need help?

Do you have a question about the Taktis and is the answer not in the manual?

Questions and answers

Summary of Contents for Kentec Electronics Taktis

Page 1 Taktis Fire Alarm Control Panel Installation Manual UL Version 1.04 | May 2020 | MAN-1431KE...
Page 2: Table Of Contents
Taktis Fire Alarm Control Panel Installation Manual CONTENTS Contents Glossary Compliance Information Underwriters Laboratories (UL) NFPA FM Global Technologies LLC (FM APPROVALS) Introduction Technical Support Return Material Authorization (RMA) Warranty Service Advanced Replacements Installation Preparing for Installation Mounting the Taktis Fire Alarm Control Panel...
Page 3 Taktis Fire Alarm Control Panel Installation Manual DIP Switch Settings Placement Installing the Network Module Network Connections Fiber Optic Networking Connecting Field Wiring Wiring Diagram Class A SLC Loops Class B SLC Loops Class X SLC Loops Notification Appliances Connecting Notification Appliances Connections for NAC Power Output Modes...
Page 4 Taktis Fire Alarm Control Panel Installation Manual SLC Detector Spacing SLC Device Detector Sensitivity Detector Calibration / Drift Compensation Addressing an SLC Module Hochiki Protocol Connecting SLC Devices Hochiki Protocol Installing Municipal Boxes Testing the Installation Panel Start-up Loading Configuration Testing the Power Supply...
Page 5 Taktis Fire Alarm Control Panel Installation Manual System B Panel Module (S770) Dual Loop Panel Module (S758) Notification Appliances Synchronization Configuring NAC Outputs Optional Modules and Assemblies Network Module (S723) Printer (S768) Zone LED Module (S771) 16 Channel I/O Interface Card (K1171)
Page 6 Taktis Fire Alarm Control Panel Installation Manual Panel LEDs Fire In Zone Indicators Main Back Board (S722) NAC and AUX 24V Terminals Terminals Panel Module Slots Field Terminal Assignments Panel Module Slots Board Slot C Board Slot D Board Slot E...
Page 7 Taktis Fire Alarm Control Panel Installation Manual Slot J Slot K Other Terminals LCD Main Processor Board (S721) Connectors and Ports Switches, LED Indicators, and Internal Buzzer 19 Inch Rack Mount Enclosure Installation Batteries Connecting Field Wiring Power Supply Power Supplies Features DIP Switches...
Page 8 Taktis Fire Alarm Control Panel Installation Manual Other Events Maintenance and Repair Batteries Replacing Battery Leads Replacing Standby Batteries Removing the Standby Batteries Installing the Standby Batteries Fuses Battery Lead Fuse on 5.25A Power Supply Replacing the Power Supply Fuse Removing the Power Supply Fuse...
Page 9 Taktis Fire Alarm Control Panel Installation Manual 5.25 A Power Supply 10.25 A Power Supply Battery Rechargeable Standby Battery Circuit Standby Battery Loads Cabling Cable Maximum Parameters for Network RS-485 Serial Data and Terminal Capacity SLC Loop Ratings Main Back Board NAC Outputs...
Page 10 Taktis Fire Alarm Control Panel Installation Manual Trouble Routing Output Trouble Routing Input System Information Mechanical Fascia Components Operating Environment Cabinet Housing 4 Slot Standard Enclosure 8 Slot Standard Enclosure 4 Slot Deep Enclosure 8 Slot Deep Enclosure 19" Rack Mount Appendix B: Equipment List...
Page 11 Taktis Fire Alarm Control Panel Installation Manual Appendix C: Calculations SLC Loop Cabling Example Voltage Drop Condition Voltage-drop of the twin cable Voltage at the load 14 AWG Cable 16 AWG Cable 18 AWG Cable NAC Cabling 12 AWG Cable 14 AWG Cable...
Page 12: Glossary
Taktis Fire Alarm Control Panel Installation Manual GLOSSARY SYMBOLS Indicates a ground terminal Authority Having Jurisdiction. The government body, organization, office, or individual hav- ing the power to enforce and/or interpret laws, codes, and rules. Ancillary Device A device connected to a fire alarm system not required by the fire alarm standard, but may be required by other standards, e.g.
Page 13 Taktis Fire Alarm Control Panel Installation Manual Class X A wiring classification capable of transmitting an alarm signal during a single open, short, or non-simultaneous ground fault on a conductor. DIP Switch A group of two-position electrical contacts mounted in a Dual Inline Package (DIP), typically used to set address or function information.
Page 14: Compliance Information
Underwriters Laboratories (UL) Fire Alarm Equipment Kentec Electronics Ltd The Taktis Fire Alarm Control Panel is suitable as follows: Types of signaling services are automatic fire alarm and manual fire alarm Class A, B, and/or X Signaling Line Circuits Class A and/or B for Notification Appliance Circuits Protected Premises Unit (PPU) for Local Service, Remote Station Service, Center Station Service, Proprietary Service, Auxiliary Service.
Page 15: Introduction
Taktis Fire Alarm Control Panel Installation Manual INTRODUCTION Technical Support For technical support, contact Kentec Electronics, Ltd at +44 (0)1322 222121 or techsupport@kentec.co.uk. Prior to contacting technical support, have the following information available: Product part number Purchase order or order number...
Page 16: Warranty Service
Taktis Fire Alarm Control Panel Installation Manual Attention: RMA # _____________ Kentec Electronics, Ltd Units 25-27 Fawkes Avenue Questor, Dartford Kent. DA1 1JQ United Kingdom Warranty Service Technical Support can replace or repair a defective product when the original purchase is within the warranty period defined in the sales contract.
Page 17: Installation
Taktis Fire Alarm Control Panel Installation Manual INSTALLATION This section provides instructions for connecting cables, mounting, and testing the Taktis Fire Alarm Control Panel for installation. The following is a general checklist for the installation of the panel. Detailed instructions are provided for each step.
Page 18: Preparing For Installation
3. Familiarize yourself with the panel and components. Item Description Depending on the model, the Taktis Fire Alarm Control Panel will have either a 5.25 Amp or Power Supply 10.25 Amp power supply. The Main Back Board contains slots for six circuit boards, and accepts the System A Panel...
Page 19 The 10 Conductor Printer Cable connects the printer assembly to the LCD Main Processor (optional) Board. 4. The following items are not included with the Taktis Fire Alarm Control Panel, but may be required for the installation: Two 12 VDC VRLA (Valve-Regulated Lead Acid) Standby Batteries - Required Mounting Hardware - Mounting hardware that secures the panel to the wall is not provided.
Page 20: Mounting The Taktis Fire Alarm Control Panel
Use the cabinet box as a template and mark the position of the mounting holes while ensuring that the wall is flat at the chosen location. The Taktis Fire Alarm Control Panel must be mounted in an accessible location. It must not be mounted in another enclosure or near sources of excessive heat. The Taktis Fire Alarm Control Panel is intended for indoor, dry use only.
Page 21 Taktis Fire Alarm Control Panel Installation Manual 2. Disconnect the ribbon cables from the LCD Main Processor Board, leaving the cable ends connected to the Main Back Board. 3. Remove the hinge pins of the fascia and then remove it from the cabinet box. Return the hinge pins to the hinges of the cabinet box for safekeeping.
Page 22 Taktis Fire Alarm Control Panel Installation Manual 4. Remove the hinge pins of the cabinet lid and then remove the cabinet lid from the cabinet box of the fire control panel. Return the two hinge pins to the hinges of the cabinet box for safekeeping.
Page 23: Replacing Cabinet Components
3. Connect the 14 Conductor Cable from the power supply to the Main Back Board. Installing Power Supplies Taktis Fire Alarm Control Panels can be equipped with either a 5.25 Amp or 10.25 Amp power supply. Set DIP switches on the 5.25 Amp and 10.25 Amp Power Supplies before completing the installation process. Refer to DIP Switch Settings.
Page 24 115 VAC jumper setting exists while operating the power supply at 230 VAC. WARNING! Remove jumper J1 before operating the Taktis Fire Alarm Control Panel at 230 VAC. Failure to remove jumper J1 prior to operating at 230 VAC will cause permanent damage to the 5.25 Amp power supply.
Page 25: The 10.25 Amp Power Supply
4. Connect a wire from the line-terminal (L) to the line of the power source. Connecting Standby Batteries The Taktis Fire Alarm Control Panel provides connections for two standby batteries. Refer to Calculations for determining the minimum required battery capacity for the fire alarm system. If the required battery capacity exceeds the space available in the cabinet, an appropriately-sized auxiliary UL listed battery cabinet suitable for fire alarm service will be required.
Page 26 Taktis Fire Alarm Control Panel Installation Manual 1. Place two 12 VDC, VRLA, rechargeable, standby batteries in the base of the cabinet. 2. Orient terminals of the standby batteries so that the positive ( + ) terminal of one standby battery is facing the negative ( - ) terminal of the other.
Page 27: Installing Optional Panel Modules
DIP Switch Settings Each panel module of the Taktis Fire Alarm Control Panel must contain a unique setting before being connected to the Main Back Board. The binary setting of the DIP switch sets the specific address for the panel module. The numeric order of the address setting between modules does not impact operation, but each panel module must be assigned a separate / unique address.
Page 28 Taktis Fire Alarm Control Panel Installation Manual 1. Disconnect AC power and standby batteries prior to performing the module installation. 2. Remove the retaining screw and plastic cover. 3. Remove the panel module from the protective packaging using adequate electrostatic protection.
Page 29 Taktis Fire Alarm Control Panel Installation Manual The photo above is an example of panel module placement and may not be representative of the specific module and slot placement described in this guide. Refer to the checklist above for details on placement.
Page 30: Installing The Network Module
4. Reconnect the battery and restore AC power. Network Connections Provide network connections to NETWORK IN and NETWORK OUT terminals of the Taktis Fire Alarm Control Panel's Main Back Board after installing the Network Module. The following figure illustrates the typical network connections of a 3 panel, Class X network: Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE...
Page 31: Fiber Optic Networking
Taktis Fire Alarm Control Panel Installation Manual Because network connections are supervised, if a network module is installed and there are no other devices on the network, the IN and OUT network terminals must be connected together to prevent an OPEN CIRCUIT TROUBLE indication. Bridge networking is supported for Elite and Elite RS panels. Advanced features are not available when using bridge networking.
Page 32 Taktis Fire Alarm Control Panel Installation Manual Serial Connection Built-in 120 Ohm Terminator Fiber Mode RS-485-2W Enable Point-to-Point Mode Example Wiring Diagram of a Mixed-Wire (fiber and copper) network Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual...
Page 33 Taktis Fire Alarm Control Panel Installation Manual Detailed Fiber Converter Wiring Diagram Do not insert more than one conductor per terminal. Use wire nuts or other suitable splice connectors to connect the 24V DC cables to both the AUX 24V OUT and RTN terminals.
Page 34: Connecting Field Wiring
Taktis Fire Alarm Control Panel Installation Manual Connecting Field Wiring Power-limited conductors must be installed using Types FPL, FPLR, FPLP, or equivalent cables. When connecting field wiring, separate high and low voltage wiring in the enclosure with a minimum gap of 0.25".
Page 35: Wiring Diagram
Taktis Fire Alarm Control Panel Installation Manual Wiring Diagram Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 35...
Page 36 Taktis Fire Alarm Control Panel Installation Manual Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 36...
Page 37: Class A Slc Loops
Taktis Fire Alarm Control Panel Installation Manual Class A SLC Loops 1. Connect Class A loops to the terminal strip of the Taktis Fire Alarm Control Panel. 2. When the loop is unused, the loop termination jumpers provided with the panel should be replaced with 14-22 AWG SLC cable.
Page 38: Class B Slc Loops
Refer to the Taktis Fire Alarm Control Panel Installation Manual (MAN-1431KE) for an example of how isolators may be used on a Class B circuit.
Page 39: Class X Slc Loops
14-22 AWG SLC cable. The Taktis Fire Alarm Control Panel provides a trouble signal when unused loops are not terminated. All loops are supervised. Follow NFPA guidelines for placement of isolators with Class X wiring. When using Class X wiring, SCI Short Circuit Isolators must be installed before and after each analog addressable device on the SLC loop.
Page 40: Connecting Notification Appliances
Different limitations will apply for devices with a higher or lower minimum working voltage. Refer to Specifications for cabling information. To install notification appliances on the Taktis Fire Alarm Control Panel: 1. Connect notification appliances and End-Of-Line diodes to the NAC output.
Page 41: Connections For Nac Power Output Modes
Taktis Fire Alarm Control Panel Installation Manual Refer to Equipment List for synchronization devices that are UL listed and authorized for use with the Taktis Fire Alarm Control Panel. Refer to Calculations to determine wire size requirements for your application. Connections for NAC Power Output Modes There are 3 NAC power output modes: continuous constant power, door holder, and resettable.
Page 42: Door Holder
Taktis Fire Alarm Control Panel Installation Manual Door Holder Regardless of the wiring schema, when configuring for door holder, the circuit is a regulated 24V output and meets the requirements for a Class D circuit. Resettable When the NAC is used in resettable mode, it is a special application output with a voltage range of 20.0 - 26.4V.
Page 43: Relay Contacts
OPEN CIRCUIT TROUBLE. This illustrates a Class B circuit that provides open circuit monitoring. Relay Contacts The Taktis Fire Alarm Control Panel contains five programmable relays that provide volt-free changeover. These relays include: TROUBLE RELAY Activates on any trouble and clears when all troubles are clear.
Page 44: Network
Taktis Fire Alarm Control Panel Installation Manual Dry contacts between the NC terminal and the COM terminal are closed when the output is inactive, and open when the output is active. Each relay can be configured independently through Loop Explorer 2 or the panel GUI using Access Level 3.
Page 45: Fire Routing Output 1
Taktis Fire Alarm Control Panel Installation Manual Fire Routing Output 1 Reserved for future use. Prog Input There are three programmable Inputs (PROG INPUT) and one 0V terminal. The inputs are non-supervised and are designed to be activated by voltage-free contacts. To activate, connect a PROG INPUT to the 0V terminal.
Page 46 0 volts For wiring Programmable Inputs: The interconnected equipment must be located in the same room as the Taktis Fire Alarm Control Panel. Wiring must be in conduit (or equivalently protected against mechanical injury) and connections must be made within 20 feet.
Page 47: Routing I/O Terminals
Taktis Fire Alarm Control Panel Installation Manual Routing I/O Terminals NOTE The output impedance of the Prog Routing Output is 3.3k ohms when in the NORMAL state and 680 ohms when in the ACTIVATED state. Connect these terminals to any device input that matches these impedance values.
Page 48: Installing Addressable Devices
SLC sounder bases provide the sounder base with a unique ID of detector address +127. Addressing an SLC module requires the use of an Analog Device Programmer (not included with the Taktis Fire Alarm Control Panel). Use the operating instructions when programming each device.
Page 49: Hochiki Protocol
Taktis Fire Alarm Control Panel Installation Manual Hochiki Protocol Each SLC device must be connected using S and SC terminals; S to S and SC to SC. Refer to device-specific wiring requirements when connecting each device. Devices with IN and OUT S and SC terminals should be connected IN to OUT and vice versa.
Page 50 Taktis Fire Alarm Control Panel Installation Manual Class B SLC Wiring Example - Hochiki Protocol SCIs should be located at or near the panel. Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 50...
Page 51: Installing Municipal Boxes
NFPA 72, NEC 70, the National Electrical Code and all local codes. The NAC output can provide a non-pulsing, regulated 24 VDC, 2.5A maximum output when a fire condition is reported to the Taktis Panel. The OUT leads of the EOLD (K14070) shall connect directly to the terminal block of the municipal box.
Page 52: Testing The Installation
Taktis Fire Alarm Control Panel. Panel Start-up 1. Connect the batteries and apply AC power to the Taktis Fire Alarm Control Panel. 2. Allow the panel to go through its start-up process. Black screen with Bootloader version displayed. (<1 min.) Blank screen.
Page 53: Loading Configuration
Testing the Power Supply Perform the following tests to confirm operation of the power supply: 1. Apply AC and battery power to the Taktis Fire Alarm Control Panel. 2. Check that the AC Normal LED is illuminated on the power supply.
Page 54: Testing The Panel Gui
Perform the following tests to confirm proper operation of the buzzer, panel GUI, indicator lamps, and the fire control panel system. The Fire System Normal screen displays when the Taktis Fire Alarm Control Panel is operating properly and indicates that the installation was successful. Determine that the Fire System Normal condition is visible on the panel GUI before initiating the Panel Tests.
Page 55: Panel Tests
The System Information window includes details such as Software Version, File manager, LED Controller, I/O Board Controller, Configuration Manager, and the Event Log. View the System Information to determine the operating status of the Taktis Fire Alarm Control Panel. To view system information on the Taktis Fire Alarm Control Panel: Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE...
Page 56: Event Log
Event Log View the Event Log to determine the status of initiating devices, signaling line circuits, and notification appliances. To view the Event Log of the Taktis Fire Alarm Control Panel: 1. Press the panel GUI during the Fire System Normal condition.
Page 57: Programming The Panel
Loop Explorer 2 utility. Loop Explorer 2 Many of the Taktis Fire Alarm Control Panel features and settings can be configured using the program Loop Explorer 2. Licenses can be obtained through your sales representative. The following features are configurable.
Page 58: Overview
2032 addressable points and 512 additional programmable inputs and outputs. This manual describes 2 to 16 loop models of the Taktis Fire Alarm Control Panel. In order for the product to comply with the requirements in the Standard for Control Units and Accessories for Fire Alarm Systems, UL 864 10th Edition, certain programming features or options must be limited to specific values or not used at all as indicated below.
Page 59 Taktis Fire Alarm Control Panel Installation Manual Program Feature or Option Configurable Range Range Permitted in UL 864 Access Level 2 menu. Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 59...
Page 60: Required Modules For Minimum Operation And Basic Function
Modules can be added, configured, and replaced without altering field wiring connections. This modularity allows each Taktis Fire Alarm Control Panel to be customized for a specific operation. Required modules for minimum operation of an addressable Taktis Fire Alarm Control Panel include:...
Page 61: System B Panel Module (S770)
Indicates that an output is active. System B Panel Module (S770) System B Panel Module monitors and controls essential input and output functions on the Taktis Fire Alarm Control Panel. The System B Panel Module includes the following input and output functions:...
Page 62 The System B Panel Module fits into slot B of the Main Back Board and controls the fire, trouble, and programmable relays, auxiliary 24 volt, fire routing, trouble routing, and programmable inputs and outputs. This figure illustrates System B Panel Module of the Taktis Fire Alarm Control Panel. LED Label Name...
Page 63: Dual Loop Panel Module (S758)
Taktis Fire Alarm Control Panel Installation Manual Dual Loop Panel Module (S758) The Dual Loop Panel Module monitors loop device status and provides status to the panel processor. It holds device configurations and operates in a standalone manner when catastrophic failures occur. The Dual Loop Panel Module can be connected in any available slot (C-K) on the Main Back Board to provide this operating function.
Page 64: Notification Appliances
External synchronization modules must not be used on the NAC outputs when operating in the synchronization mode. While most systems only use one device manufacturer, the Taktis panel can synchronize strobe devices from any two manufacturers simultaneously. Devices from different manufacturers cannot be combined on the same channel.
Page 65: Configuring Nac Outputs
Taktis Fire Alarm Control Panel Installation Manual Configuring NAC Outputs Settings are provided in the panel GUI and Loop Explorer 2 for controlling the NAC outputs of the Taktis Fire Alarm Control Panel. Selections are available in these utilities for providing outputs with synchronization or various forms of constant power.
Page 66: Optional Modules And Assemblies
The Taktis Network Module can be configured to operate in a "bridge mode", which enables the Taktis Fire Alarm Control Panel to operate on a network with Elite and Elite RS panels. The Elite and Elite RS network can support up to 64 fire control panels, and has other limitations, such as more limited text-field lengths, zones, C&E relationships, etc.
Page 67: Printer (S768)
When using a printer with a Taktis Fire Alarm Control Panel fitted with a Plex-Door, the paper may adhere to the door because of the static generated when removing the protective film. To combat this, wipe the surface of the door with a slightly damp, soapy cloth before the first use.
Page 68: Channel I/O Interface Card (K1171)
Use Case Examples The 16 Channel I/O Interface can be used to interface the Taktis panel to a NAC extender or Voice Evacuation system, by providing inputs to the Taktis panel for dry contact closures such as General Trouble, AC Power Trouble, or Battery Trouble from these devices.
Page 69: Restrictions
Taktis Fire Alarm Control Panel Installation Manual inputs to the Taktis panel for dry contact closures such as Fire, Supervisory, and Trouble from these panels, and various stages of release from the releasing panel. outputs from the panel to activate NAC outputs on these panels.
Page 70: Channel I/O Panel Module (S772)
Use Case Examples The 16 Channel I/O Interface can be used to interface the Taktis panel to a NAC extender or Voice Evacuation system, by providing inputs to the Taktis panel for dry contact closures such as General Trouble, AC Power Trouble, or Battery Trouble from these devices.
Page 71: Taktis Network Vision Annunciator (S787)
Taktis Network Vision Annunciator TRC00NC-10 (Red), TRC00NC-40 (Gray), TRC00NC-60 (Black) The Taktis Network Vision Annunciator is a display and control unit which duplicates the indications and primary controls of Taktis Fire Alarm Control Panels connected to the same network. The Annunciator connects via the network interface, and any number of repeaters can be connected up to the maximum number of nodes allowed by the network.
Page 72: Media Gateway™ Panel Module (S788)
Taktis Fire Alarm Control Panel Installation Manual Taktis Network Vision Annunciators can be configured to replicate fire control panel functionality or to operate as simple, display-only devices for applications where access to fire alarm controls are inappropriate. The Annunciator can be configured to display events from any combination of nodes on the network.
Page 73: Channel Nac Panel Module (S793)
Taktis Fire Alarm Control Panel Installation Manual For more information about the 8 Channel Conventional Zone Panel Module, refer to the 8 Channel Conventional Zone Panel Module Information Guide (MAN-1441KE). 4 Channel NAC Panel Module (S793) The 4 Channel NAC panel modules are typically used in applications that require more than the standard panel NAC outputs.
Page 74: Batteries
Taktis Fire Alarm Control Panel Installation Manual Batteries Batteries are used as a secondary power source for the Taktis Fire Alarm Control Panel, in the event that the primary power source (AC) fails. Required standby battery capacity is dependent on the required standby period and load of the Taktis Fire Alarm Control Panel system.
Page 75: Fascia
Panel GUI operation when users are wearing gloves. The key switch on the Taktis Fire Alarm Control Panel provides level 2 access to the panel, which Key Switch allows the user to silence alarms and reset the system. These functions can also be accessed by using a 6-digit access level 2 code.
Page 76 Indicators (Optional) The Taktis Printer is an optional feature located on the lower portion of the fascia. It is a thermal Printer (Optional) printer that never requires replacement ink and uses thermal paper rolls accessible from the fascia.
Page 77: Led Status Indicators
Fire In Zone Indicators Fire In Zone indicators are an optional feature provided on the fascia of the Taktis Fire Alarm Control Panel in single, double, or triple bank configurations. The following figure illustrates a single bank of 48 Fire In Zone...
Page 78 Taktis Fire Alarm Control Panel Installation Manual Single bank configurations contain 48 Fire In Zone indicators. Two bank configurations contain 96 Fire In Zone indicators, and three bank configurations contain 144 Fire In Zone indicators. Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual...
Page 79: Main Back Board (S722)
Minimum functions of the Taktis Fire Alarm Control Panel are provided when Slot A of the Main Back Board contains System A Panel Module, Slot B contains System B Panel Module, and Slots C, D, E, or F contain a Dual Loop Panel Module .
Page 80 Taktis Fire Alarm Control Panel Installation Manual The Main Back Board contains connector slots A through F. Operation of the Taktis Fire Alarm Control Panel requires that one Dual Loop Panel Module is connected in slots C, D, E, or F to meet minimum operating requirements.
Page 81: Nac And Aux 24V Terminals
Taktis Fire Alarm Control Panel Installation Manual NAC and AUX 24V Terminals NAC terminals 1 to 4 provide 24 VDC @ 2.5 A. In the default state, these circuits can be connected as four Class B supervised outputs. However, they can be configured as two Class A or two Class B and one Class A output.
Page 82: Terminals
Taktis Fire Alarm Control Panel Installation Manual Terminals The default designation is as shown below, however all 5 relays are user-configurable. Field Terminals Default Operation Default Setting NO, C, and NC TROUBLE RELAY Trouble NO, C, and NC FIRE RELAY Fire...
Page 83: Panel Module Slots
Taktis Fire Alarm Control Panel Installation Manual Panel Module Slots The following figure illustrates the Panel Module Slots of the Main Back Board: Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 83...
Page 84: Field Terminal Assignments
Taktis Fire Alarm Control Panel Installation Manual Field Terminal Assignments Panel module slot positions on the Main Back Board correspond to specific field terminal locations on the Main Back Board. Slot Field Terminal Location Addressable Loops 1 and 2 or 4 Channel NAC...
Page 85: Panel Module Slots
Taktis Fire Alarm Control Panel Installation Manual Panel Module Slots Board Slot C The following figure illustrates the Board Slot C terminals of loops 1 and 2: Field Terminals Board Location Possible Panel Modules Function Slot C Dual Loop Panel Module (pre-installed)
Page 86: Board Slot E
Taktis Fire Alarm Control Panel Installation Manual Possible Panel Mod- Field Terminals Board Location Function ules Dual Loop Panel Module SLC In / Out Slot D 4 Channel NAC Panel NAC Outputs Module Board Slot E The following figure illustrates the Board Slot E terminals of loops 5 and 6: Field Terminals Board Location...
Page 87: Board Slot F
Taktis Fire Alarm Control Panel Installation Manual Board Slot F The following figure illustrates the Board Slot F terminals of Loops 7 and 8: If you have, or plan to obtain, a Media Gateway Panel Module, it must be installed into Board Slot F.
Page 88: Extension Board Power Terminals
Taktis Fire Alarm Control Panel Installation Manual Extension Board Power Terminals This figure illustrates Extension Board Power Terminals of the Main Back Board. These terminals are non-power limited. Field Terminals Description ( - ) Two terminals for providing 0 VDC return-power ( - ).
Page 89: Network, Rs-485 I/O, Fire Routing Output 1, And Prog Input
Taktis Fire Alarm Control Panel Installation Manual Network, RS-485 I/O, Fire Routing Output 1, and Prog Input The following figure illustrates Network, RS-485 I/O, Fire Routing Output 1, and Prog Input of the Main Back Board: Field Terminals Description Provides Class X connections for intra-panel and NETWORK annunciator networking.
Page 90: Power Supply Terminals
Taktis Fire Alarm Control Panel Installation Manual Power Supply Terminals Power Supply Terminals of the Main Back Board are used for factory wiring purposes only. Field Terminals Description Power Limited Ground terminal connection TRBL Power trouble input. Active when connected to negative terminal ( - ).
Page 91: 0V Terminals
Taktis Fire Alarm Control Panel Installation Manual 0V Terminals This figure illustrates 0V terminals of the Main Back Board. These terminals provide general purpose 0V and are non-power limited. Power Supply Trouble Signaling Connector The following figure illustrates the Power Supply Trouble Signaling Connector of the Main Back Board.
Page 92: Supervised Input And Output Terminals
Taktis Fire Alarm Control Panel Installation Manual Supervised Input and Output Terminals Fire and Trouble routing outputs provide supervised, 24V DC voltage with reversing outputs. Refer to Main Back Board Specifications for detailed information about these terminals. Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual...
Page 93: Extension Board (S786)
Eight slot cabinet models include an extension board. This provides connections for 4 additional modules to be used with the Taktis Fire Alarm Control Panel. In this type of configuration, the extension board is installed to the right of the Main Back Board on the backplate.
Page 94 Taktis Fire Alarm Control Panel Installation Manual Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 94...
Page 95: Extension Board Features
Taktis Fire Alarm Control Panel Installation Manual Extension Board Features The following figure illustrates the Extension Board features: The extension board is connected to the Main Back Board through the Extension Board Power Terminals and a 34 Conductor ribbon cable. The DIP switches should be set as shown.
Page 96: Panel Module Slots And Terminals
Panel Module Slots and Terminals Panel module slots and field terminals of the Taktis Fire Alarm Control Panel contain corresponding lettering to identify position on the Extension Board. Slots G, H, J, and K correspond to terminals G, H, J, and K of the Extension Board.
Page 97: Slot G
Taktis Fire Alarm Control Panel Installation Manual Slot G Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 97...
Page 98: Slot H
Taktis Fire Alarm Control Panel Installation Manual Slot H Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 98...
Page 99: Slot J
Taktis Fire Alarm Control Panel Installation Manual Slot J Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 99...
Page 100: Slot K
Taktis Fire Alarm Control Panel Installation Manual Slot K Other Terminals Location Field Wiring Terminals Function RS-485 I/O Not currently used. For future use. 0V, PF, E Not currently used. For future use. Used to power the board through a connection to the Main Back...
Page 101: Lcd Main Processor Board (S721)
The LCD Main Processor Board, optional Zone LED module(s), and optional Taktis Printer are mounted on the fascia of the Taktis Fire Alarm Control Panel. The LCD Main Processor Board can operate a maximum of three Zone LED modules. One Zone LED module provides 48 LED indicators, two provides 96 LED indicators, and three Zone LED modules provide 144 LED indicators.
Page 102 Taktis Fire Alarm Control Panel Installation Manual Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 102...
Page 103: Connectors And Ports
Taktis Fire Alarm Control Panel Installation Manual Connectors and Ports The following figure illustrates connectors and ports of the LCD Main Processor Board: Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 103...
Page 104: Switches, Led Indicators, And Internal Buzzer
Taktis Fire Alarm Control Panel Installation Manual Switches, LED Indicators, and Internal Buzzer The following figure illustrates switches, LED indicators, and the internal buzzer of the LCD Main Processor Board: Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual...
Page 105: 19 Inch Rack Mount Enclosure
19 INCH RACK MOUNT ENCLOSURE The 19" Rack Mount Enclosure provides the same functionality as the other Taktis cabinets, but is made to fit in a server rack cabinet. It provides slots for required and optional panel modules, as well as for field wiring and power supply terminations.
Page 106 Taktis Fire Alarm Control Panel Installation Manual Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 106...
Page 107: Installation
Taktis Fire Alarm Control Panel Installation Manual Installation This section provides instructions for connecting cables, mounting, and testing the 19" Rack Mount Enclosure. The following is a general checklist for the installation of the enclosure. WARNING! Ensure AC mains is turned off and battery power is disconnected at the source before making any field connections.
Page 108: Batteries
Taktis Fire Alarm Control Panel Installation Manual Batteries Refer to Calculations for determining the minimum required battery capacity for the fire alarm system. WARNING! Battery terminals and leads are not power-limited. Shorts can cause a fire or an explosion. Use extreme caution while connecting standby batteries. To ensure the battery is not short-circuited, do not connect the batteries until all wiring of the battery cabinet and power supply is complete.
Page 109: Connecting Field Wiring
Taktis Fire Alarm Control Panel Installation Manual Connecting Field Wiring Power-limited conductors must be installed using Types FPL, FPLR, FPLP, or equivalent cables. Separate high and low voltage wiring in the enclosure with a minimum gap of 0.25". Do not route low-voltage cabling through the non-power-limited area.
Page 110 Taktis Fire Alarm Control Panel Installation Manual Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 110...
Page 111: Power Supply
Taktis Fire Alarm Control Panel Installation Manual Power Supply The 19" Rack Mount Enclosure is only available with the 5.25 Amp power supply. Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 111...
Page 112: Power Supplies
POWER SUPPLIES Models of the Taktis Fire Alarm Control Panel can include the 5.25 Amp or the 10.25 Amp power supply. 5.25 Amp power supplies are capable of charging batteries with capacities ranging from 7 to 60 Ah. 10.25 Amp power supplies are capable of charging batteries with capacities ranging from 12 to 100 Ah.
Page 113: Features
Taktis Fire Alarm Control Panel Installation Manual Features Features of the power supplies include: Features Description Prevents deep-discharge of the standby batteries by disconnecting the load when the standby battery-voltage drops below 19 +/- 1V DC. A deep- Deep Discharge Prevention discharge can cause permanent damage to standby batteries.
Page 114 Taktis Fire Alarm Control Panel Installation Manual The tables below describe DIP switch settings 1 through 4 of the 5.25 Amp Power Supply. For UL compliance, DIP switches should be set to the defaults, as shown. SW1&2 together define the Battery Load Test (also known as Battery Impedance Test)
Page 115: 10.25 Amp Power Supply
Taktis Fire Alarm Control Panel Installation Manual 10.25 Amp Power Supply The tables below describes DIP switch settings 1 through 4 of the 10.25 Amp Power Supply. For UL compliance, DIP Switches 1 and 2 must be set to the default, as shown.
Page 116: Special Application Mode Table
Taktis Fire Alarm Control Panel Installation Manual Disabling the Impedance Test - Set DIP switch 1 to the ON position and DIP switch 3 to the OFF position to disable the battery impedance test and trouble reporting. Special Application Mode Table...
Page 117: Events And Status
Taktis Fire Alarm Control Panel Installation Manual EVENTS AND STATUS This section describes events and the status of the panel GUI while operating the Taktis Fire Alarm Control Panel. The following events are described: Fire Trouble Supervisory Disablement Other Events These event types correspond to the tabs displayed at the top of the Panel GUI. The event tabs will numerically indicate active events on the panel;...
Page 118: Trouble
Taktis Fire Alarm Control Panel Installation Manual Silence Alarms: Press Activate Controls> Silence Alarms to silence notifications. The notifications can be reactivated by pressing the Re-Sound Alarm button. Buzzer Silence: Press Buzzer Silence to silence the panel buzzer. Reset System: Press Reset System. In the event of a CO Alarm, the following things happen: the CO Alarm indicator on the front of the panel illuminates yellow...
Page 119: Supervisory
Taktis Fire Alarm Control Panel Installation Manual Silence Alarms: Press Activate Controls> Silence Alarms to silence notification appliances. They can be reactivated by pressing the Re-Sound Alarm button. Buzzer Silence: Press Buzzer Silence to silence the panel buzzer. Reset System: Press Reset System. Supervisory...
Page 120: Other Events
Taktis Fire Alarm Control Panel Installation Manual Buzzer Silence: Press Buzzer Silence to silence the panel buzzer. Reset System: Press Reset System. Other Events Other event statuses are displayed in the Controls & Other Events tab. Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual...
Page 121: Maintenance And Repair
Taktis Fire Alarm Control Panel Installation Manual MAINTENANCE AND REPAIR This section provides procedures to maintain and repair the Taktis Fire Alarm Control Panel over the operating life of the product. Refer to Equipment List for component part numbers described in this section.
Page 122: Batteries
3. Disconnect the red lead from the positive terminal of Battery 2. 4. Remove Battery 1 and Battery 2 from the bottom of the Taktis Fire Alarm Control Panel cabinet. 5. Recycle Battery 1 and Battery 2 according to the manufacturer procedures provided in the battery packaging.
Page 123: Fuses
Taktis Fire Alarm Control Panel Installation Manual Fuses The Taktis Fire Alarm Control Panel contains fuses to protect it against overloads. During the life of the product it may be necessary to replace one or both of the fuses. Replace fuses only after addressing the cause which resulted in the fuse failure.
Page 124: Installing The Replacement Power Supply Fuse
3. Restore AC power. 4. Monitor the AC NORMAL and DC OUT ON LED indicators on the power supply of the Taktis Fire Alarm Control Panel to determine that trouble conditions are not reported following fuse replacement. Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE...
Page 125: Replacing Internal Components
Taktis Fire Alarm Control Panel Installation Manual Replacing Internal Components It may be necessary to remove and replace internal components during the operating life of the panel. The fascia contains the LCD Main Processor Board, optional Zone LED module, and optional printer. The backplate contains the Main Back Board, the power supply, and grounding terminals.
Page 126 Taktis Fire Alarm Control Panel Installation Manual Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 126...
Page 127: Appendix A: Specifications
Taktis Fire Alarm Control Panel Installation Manual APPENDIX A: SPECIFICATIONS This appendix provides electrical and environmental specifications for the Taktis Fire Alarm Control Panel. Current levels provided in the tables of this appendix are maximum ratings unless otherwise indicated. Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE...
Page 128: Operating Constraints
External loading must be selected within the limits of the Taktis Fire Alarm Control Panel to provide continuous operation. External loading is caused by individual or multiple combinations of Signaling Line Circuits, Notification Appliance Circuits, and Initiating Devices.
Page 129: Electrical
Taktis Fire Alarm Control Panel Installation Manual Electrical AC Input Ratings Terminal Description Power Supply Power 1.83 Amps Max @ 115 V, 50/60 Hz 5.25 A AC line 0 .915 Amps Max @ 230 V, 50/60 Hz 2.5 Amps Max @ 115 V, 50/60 Hz 10.25 A...
Page 130: Power Supply
Taktis Fire Alarm Control Panel Installation Manual Power Supply Fuses Power Supply Description 5.25 A AC Input, 3 A, 250 VAC, slow blow, 5 x 20 mm 10.25 A AC Input, 5 A, 250 VAC, slow blow, 5 x 20 mm 24 VDC Output Ratings...
Page 131: Ground Trouble Indication
(secondary). Standby and Alarm Current Standby and Alarm Currents of the Taktis Fire Alarm Control Panel with two loops are provided below. Two loop operation includes System A Panel Module, System B Panel Module, and the Dual Loop Panel Module. Two loop operation represents the minimum board configuration of the Taktis Fire Alarm Control Panel.
Page 132 Taktis Fire Alarm Control Panel Installation Manual The data provided above for standby and alarm current includes loads of a two loop fire control panel alone and excludes current loads from external devices or equipment. Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual...
Page 133: Battery
Standby Battery Loads Standby battery loads are generated by measuring the series battery current of the power supply following a power failure condition. Standby and alarm current of the Taktis Fire Alarm Control Panel can include all or part of the following loads:...
Page 134: Cabling
Taktis Fire Alarm Control Panel Installation Manual Cabling Specify cabling that meets or exceeds NFPA 72 and UL 864 guidelines. Cable Maximum Parameters for Network Property Ratings Resistance 100 Ω total for both conductors Core to Core Capacitance 300 nF Core to Screen Capacitance...
Page 135: Slc Loop Ratings
Taktis Fire Alarm Control Panel Installation Manual SLC Loop Ratings The following ratings represent Hochiki DCP Protocol SLC loops of the Taktis Fire Alarm Control Panel. Connection Rating LOOP ( - OUT ), ( + OUT ) 36 V DC @ 400 mA LOOP ( - IN ), ( + IN ) 36 V DC @ 400 mA Maximum Cable Capacitance: 1 µF...
Page 136: Main Back Board
Taktis Fire Alarm Control Panel Installation Manual Main Back Board NAC Outputs NAC Outputs Terminal NAC 1 ( + ), ( - ) NAC 2 ( + ), ( - ) NAC 3 ( + ), ( - ) NAC 4 ( + ), ( - ) NAC 1 and 2 can be configured to provide one Class A circuit (NAC 1&NAC 2) or two Class B circuits (NAC 1 and NAC 2).
Page 137: Special Application Nac Outputs
Taktis Fire Alarm Control Panel Installation Manual Combined currents of all four NAC outputs cannot exceed 5A Output Current System must not exceed maximum power supply output rating. 5.25A Power Supply - Regulated pulsing DC output = Max 500mA total across all...
Page 138: Aux 24V
Taktis Fire Alarm Control Panel Installation Manual AUX 24V Terminal Rating AUX 24V (1) Regulated 24 VDC @ 900 mA OUT ( + ) and ( - ) AUX 24V (1) Supervision only. Not an output. RTN ( + ) and ( - ) AUX 24V (2) Regulated 24 VDC @ 900 mA OUT ( + ) and ( - )
Page 139: Relay Ratings
Taktis Fire Alarm Control Panel Installation Manual Relay Ratings Terminals Connection Ratings Volt-free, Form C contacts 30V DC @ 1 A maximum, Resistive (NO), (C), and (NC) TROUBLE RELAY Programmable ACTIVE during complete power loss Not supervised Volt-free, Form C contacts FIRE RELAY 30V DC @ 1 A maximum, Resistive...
Page 140: Prog Inputs
Taktis Fire Alarm Control Panel Installation Manual Prog Inputs Terminals Rating Supervision: None Open Circuit Voltage: 24 VDC 1, 2, 3 Activation: Short to 0V terminal (< 100 ohms) Activation current: 3.3 mA typical Fire Routing Input Supervised input to receive confirmation signal from fire routing equipment. Reprogrammable for any input event type.
Page 141: Prog Routing Output
Taktis Fire Alarm Control Panel Installation Manual Terminals Rating End-of-Line device: 3.3K Ohm resistor (S2063) Activation device: 680 Ohm resistor Prog Routing Output Terminals Rating 24V max. ( + ), ( - ) Impedance between (+) and (-) terminals measures 3.3K ohms when inactive. Impedance between (+) and (-) terminals measures 680 ohms when active.
Page 142 Taktis Fire Alarm Control Panel Installation Manual Terminals Rating Supervision: Class B Open Circuit Voltage: 10V ( + ), ( - ) End-of-Line device: 3.3K Ohm resistor (S2063) Activation device: 680 Ohm resistor Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual...
Page 143: System Information
Taktis Fire Alarm Control Panel Installation Manual System Information Property Description Software Zones 2000 zone capacity Software Groups 5000 group capacity Event Log 10,000 event capacity, 1 second resolution. Filterable and printable. Cause and Effects 5000 Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual...
Page 144: Mechanical
Taktis Fire Alarm Control Panel Installation Manual Mechanical Fascia Components Property Description Display Full color 800 x 480 LCD with resistive touch screen and automatic backlight dimming Taktis Printer 40 column, front loading thermal (optional) Zone LED Indicators Up to 3 banks of 48 (144) (optional) Operating Environment Dry indoor use only.
Page 145: Cabinet Housing
Deep Cabinet - Up to 40 Ah (Power Sonic PS-12400) This following figures illustrate the Taktis Fire Alarm Control Panel cabinet housing options. All cabinets can be ordered with an optional second aperture to accommodate a printer or Fire In Zone LED indicators.
Page 146: Slot Standard Enclosure
Taktis Fire Alarm Control Panel Installation Manual 4 Slot Standard Enclosure Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 146...
Page 147: Slot Standard Enclosure
Taktis Fire Alarm Control Panel Installation Manual 8 Slot Standard Enclosure Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 147...
Page 148: Slot Deep Enclosure
Taktis Fire Alarm Control Panel Installation Manual 4 Slot Deep Enclosure Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 148...
Page 149: Slot Deep Enclosure
Taktis Fire Alarm Control Panel Installation Manual 8 Slot Deep Enclosure Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 149...
Page 150: 19" Rack Mount
Taktis Fire Alarm Control Panel Installation Manual 19" Rack Mount Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 150...
Page 151 Taktis Fire Alarm Control Panel Installation Manual Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 151...
Page 152 Taktis Fire Alarm Control Panel Installation Manual Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 152...
Page 153: Appendix B: Equipment List
Taktis Fire Alarm Control Panel Installation Manual APPENDIX B: EQUIPMENT LIST Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual Page 153...
Page 154: Panel Model Numbers
Taktis Fire Alarm Control Panel Installation Manual Panel Model Numbers The following is a sample illustrating how to build a model number for the Taktis Fire Alarm Control Panel Option Ranges Panel Options Valid Entries Description Taktis Fire Alarm Control Panel Product Style...
Page 155 Taktis Fire Alarm Control Panel Installation Manual Option Ranges Panel Options Valid Entries Description Red (RAL3002) Cabinet Color Gray (BS 00 A 0S) Black (RAL9005) No Printer / No Zone LEDs No Printer / No Zone LEDs, Blank 2nd Aperture Printer / No Zone LEDs Printer, Zone LEDs &...
Page 156: Replacement Parts
Taktis Fire Alarm Control Panel Installation Manual Replacement Parts The following replacement parts are provided for the Taktis Fire Alarm Control Panel. All part quantities are “one” unless otherwise indicated in parentheses. Models Description MAN-1431 Taktis Fire Alarm Control Panel - Installation Manual S406 5.25 Amp Power Supply, 115 VAC / 230 VAC Equipment List...
Page 157 Battery Lead Set with fuse holder and 10A 3AG fuse for 5.25A power supply Power Supplies are required components of the Taktis Fire Alarm Control Panel. Designated board required for base function of the Taktis Fire Alarm Control Panel. Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE...
Page 158: Accessories
Taktis Fire Alarm Control Panel Installation Manual Accessories Model Number Devices SP512A-R3 CAT5e Surge Protector, manufactured by Black Box VF1155-00 Multi-mode Fiber Converter TCF-142M-ST VF1156-00 Multi-mode Fiber Converter TCF-142M-SC VF1157-00 Single-mode Fiber Converter TCF-142S-ST VF1158-00 Single-mode Fiber Converter TCF-142S-SC Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE...
Page 159: Loop Devices
Taktis Fire Alarm Control Panel Installation Manual Loop Devices The following Hochiki-Protocol loop devices and accessories are authorized for use with the Taktis Fire Alarm Control Panel: VES Models Hochiki Models Loop Devices VF2008-00 ACA-V Multi-Criteria Heat, Photo Detector VF2012-00 ACC-V Multi-Criteria Heat, Photo Detector...
Page 160 Taktis Fire Alarm Control Panel Installation Manual VES Models Hochiki Models Loop Devices VF6022-00 FRCME-P Contact Module, Pigtails VF6001-00 FRCME-S Contact Module, Terminals VF7002-00 HSB-NSA-6 Detector Base, 6” VF5023-00 MS-KA/R Remote Test Station for Duct Detectors – Alarm LED w/ Reset Key Switch...
Page 161: Special Application Nac Outputs
Taktis Fire Alarm Control Panel Installation Manual Special Application NAC Outputs Amseco Compatible NAC Devices The following series of Amseco NAC devices are compatible for use on the special application outputs of NACs when these outputs are configured for Amseco synchronization protocol.
Page 162: Gentex Compatible Nac Devices
Taktis Fire Alarm Control Panel Installation Manual Name of Series Environment Model Description Mount Select-A-Strobe/Speaker Indoor SSC25-3075110 Speaker Strobe Wall/Ceiling Speaker/Strobe Indoor SSC70-177 Speaker Strobe Wall/Ceiling Select-A-Strobe/Speaker Indoor SSC70-3075110 Speaker Strobe Wall/Ceiling Select-A-Strobe/Speaker Indoor SFH45-153075 Speaker Strobe Wall/Ceiling Select-A-Strobe/Speaker Indoor SFH47-75110...
Page 163: System Sensor Compatible Nac Devices
Taktis Fire Alarm Control Panel Installation Manual Model Description GEC3-24WW Horn/Strobe, Wall White Multi-Candela (GEC3) GEC24 Indoor Horn Strobe, Wall GEH24-R Horn, Wall Red (GEH) GEH24-W Horn, Wall White (GEH) GEH24 Indoor Horn, Wall GEH24 Indoor Horn, Wall GEH24 Outdoor Horn, Wall...
Page 164: Wheelock Compatible Nac Devices
Taktis Fire Alarm Control Panel Installation Manual Name of Series Environment Model Series Description Mount SpectrAlert Advance Indoor Strobe Wall SpectrAlert Advance Indoor Horn Strobe, 2-Wire Ceiling SpectrAlert Advance Indoor Horn Strobe, 4-Wire Ceiling SpectrAlert Advance Indoor Strobe Ceiling SpectrAlert Advance...
Page 165 Taktis Fire Alarm Control Panel Installation Manual Model Number Series Description AHWP Audible - outdoor AMT-241575 Mutilating Strobe (NYC) - 1575 cd, Wall AMT-241575, AMT-24MCW Mutilating Strobe - 1575cd or 15,30,75,110 cd, Wall AMT-241575W-FR Audible Multitone /Strobe Red 15/75cd AMT-2475W-FR Audible Multitone /Strobe Red 75cd...
Page 166 Taktis Fire Alarm Control Panel Installation Manual Model Number Series Description CH90-2475C-FW Chime/Strobe Round White 75cd CH90-24100C-FW Chime/Strobe Round White 100cd CH90-MCCH Chime - 115,177 cd, Ceiling CH70-241575-FR Chime/Strobe Square Red 15/75cd CH70-24-R Chime Square, Red CH70-24-W Chime Square, White CH70-24MCW...
Page 167 Taktis Fire Alarm Control Panel Installation Manual Model Number Series Description E60-24MCCH-FW Speaker/Strobe Ceiling Mount 2 Watt High Multi-Candela White E60-MCC-FR Speaker/Strobe Ceiling Mount 2 Watt Multi-Candela Red E60-MCCH Speaker Strobe 115/177 cd, Ceiling E50-24MCW-FR Speaker/Strobe Wall Mount 2 Watt Multi-Candela Red...
Page 168 Taktis Fire Alarm Control Panel Installation Manual Model Number Series Description ET70-24MCW-FR Speaker/Strobe, Wall, Multi-Candela, Red (ET Series) ET70-24MCW-FW Speaker/Strobe, Wall, Multi-Candela, White (ET Series) ET70-24MCWH Speaker Strobe - 135, 185 cd, Wall ET70-24MCWH-FR Speaker/Strobe Wall Red 135/185 cd ET70-24MCWH-FW Speaker/Strobe Wall White 135/185 cd...
Page 169 Taktis Fire Alarm Control Panel Installation Manual Model Number Series Description MIZ-24S-W Mini Horn, White Multi-tone MT-241575W-FR Audible Multitone Strobe Flush Red 15/75cd MT-121575, MT-241575, MT- Multi-tone Strobe - 1575 cd or 15,30,75,110 cd, Wall 24MCW MT-2475W-FR Audible Multitone Strobe Flush Red 75cd...
Page 170 Taktis Fire Alarm Control Panel Installation Manual Model Number Series Description RSS-24150C-FW Strobe Ceiling Mount White 150cd RSS-24150CR-FW Strobe Ceiling Mount Round White 150cd RSS-24150W-FR Strobe Wall Mount Red 150cd RSS-24100CR-FR Strobe Ceiling Mount Round Red 100cd RSS-24100CR-FW Strobe Ceiling Mount Round White 100cd...
Page 171 Taktis Fire Alarm Control Panel Installation Manual Model Number Series Description RSSP-24MCW-FW Strobe Retro Multi-Candela, White RSSP-24MCWH-FR Strobe Wall Mount Red Multi cd 135/185 RSSWP-2475W-FR Strobe Wall Weatherproof, 75cd, Red S8, S8-24MCC, S8-24MCCH Speaker or Speaker Strobe - 8-inch, Ceiling SA-S90-24MCC...
Page 172: Maximum Line Impedance
16 Channel I/O Interface Module Power connections of the remote display and annunciators must be terminated at the 24V terminals of the 24V OUT or AUX 24V on the Taktis Fire Alarm Control Panel. Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual...
Page 173 The calculation of total current loading must include the sum of device loads on the circuit outputs of the Taktis Fire Alarm Control Panel. Circuits to be included in this calculation for total current loading are:...
Page 174 Taktis Fire Alarm Control Panel Installation Manual SLC Loop Cabling The Taktis Fire Alarm Control Panel requires that SLC Loops include wire gauge and lengths specified in tables of this section. The maximum allowable voltage drop of 5.5 volts is necessary on the SLC loop to maintain the minimum device operating voltage of 17 volts.
Page 175 Light shading represents cable lengths that are not permitted without the connection of isolators in the SLC circuit. Twin cables are connected to SLC loop terminals of the Taktis Fire Alarm Control Panel. Data provided in SLC tables of this section represent resistance and voltage from a single cable-conductor. Resistance and voltage levels obtained from these tables must include the secondary conductor of the twin cable during the evaluation process.
Page 176 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Resistance Length in feet Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A @ 0.5 A 1300 3.2825 0.32825 0.6565 0.98475 1.313 1.64125 1400 3.535 0.3535 0.707 1.0605 1.414...
Page 177 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Resistance Length in feet Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A @ 0.5 A 4400 11.11 1.111 2.222 3.333 4.444 5.555 4500 11.3625 1.13625 2.2725 3.40875 4.545...
Page 178 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance in feet Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A @ 0.5 A 1.6064 0.16064 0.32128 0.48192 0.64256 0.8032 2.008 0.2008 0.4016 0.6024 0.8032 1.004 2.4096...
Page 179 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance in feet Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A @ 0.5 A 3500 14.056 1.4056 2.8112 4.2168 5.6224 7.028 3600 14.4576 1.44576 2.89152 4.33728 5.78304...
Page 180 Taktis Fire Alarm Control Panel Installation Manual 18 AWG Cable Voltage Drop Length Resistance in feet Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A @ 0.5 A 0.6385 0.06385 0.1277 0.19155 0.2554 0.31925 1.277 0.1277 0.2554 0.3831...
Page 181 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance in feet Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A @ 0.5 A 3100 19.7935 1.97935 3.9587 5.93805 7.9174 9.89675 3200 20.432 2.0432 4.0864 6.1296 8.1728...
Page 182 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance in feet Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A @ 0.5 A 6200 39.587 3.9587 7.9174 11.8761 15.8348 19.7935 6300 40.2255 4.02255 8.0451 12.06765 16.0902...
Page 183 Shading of the tables identify cable length and load combinations that are not permitted for NAC devices. Twin cables are connected to NAC terminals of the Taktis Fire Alarm Control Panel. Data provided in the tables of this section represent resistance and voltage from a single cable-conductor. Resistance and voltage levels obtained from these tables must include the secondary conductor of the twin cable during the evaluation process.
Page 184 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance @ 0.75 @ 2.00 Ω (in feet) @ 0.25 A @ 0.5 A @ 1.0 A @ 1.25 A @ 1.50 A @ 1.75 A @ 2.25 A @ 2.50 A 0.71804...
Page 185 Taktis Fire Alarm Control Panel Installation Manual 14 AWG Cable Voltage Drop Length Resistance @ 2.00 Ω @ 0.25 A @ 0.5 A @ 0.75 A @ 1.0 A @ 1.25 A @ 1.50 A @ 1.75 A @ 2.25 A @ 2.50 A (in feet) 0.063125...
Page 186 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance @ 2.00 Ω @ 0.25 A @ 0.5 A @ 0.75 A @ 1.0 A @ 1.25 A @ 1.50 A @ 1.75 A @ 2.25 A @ 2.50 A (in feet) 1450 3.66125...
Page 187 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance @ 0.25 @ 0.75 @ 1.25 @ 1.50 @ 1.75 @ 2.00 @ 2.25 Ω @ 0.5 A @ 1.0 A @ 2.50 A (in feet) 1000 4.016 1.004 2.008 3.012 4.016...
Page 188 The Taktis Fire Alarm Control Panel requires that AUX 24V circuits include wire gauge and lengths specified in tables of this section. Twin cables are connected to AUX 24V terminals of the Taktis Fire Alarm Control Panel. Data provided in AUX 24V tables of this section represent resistance and voltage from a single cable-conductor. Resistance and voltage levels obtained from these tables must include the secondary conductor of the twin cable during the evaluation process.
Page 189 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance (in feet) Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A 1300 2.07464 0.20804 0.414928 0.622392 0.829856 1400 2.23424 0.224048 0.446848 0.670272 0.893696 1500 2.39384 0.240056 0.478768 0.718152...
Page 190 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance (in feet) Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A 4300 6.86264 0.68828 1.372528 2.058792 2.745056 4400 7.02224 0.704288 1.404448 2.106672 2.808896 4500 7.18184 0.720296 1.436368 2.154552...
Page 191 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance (in feet) Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A 0.7575 0.07575 0.1515 0.22725 0.303 1.01 0.101 0.202 0.303 0.404 1.2625 0.12625 0.2525 0.37875 0.505 1.515 0.1515...
Page 192 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance (in feet) Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A 3300 8.3325 0.83325 1.6665 2.49975 3.333 3400 8.585 0.8585 1.717 2.5755 3.434 3500 8.8375 0.88375 1.7675 2.65125...
Page 193 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance (in feet) Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A 6300 15.9075 1.59075 3.1815 4.77225 6.363 6400 16.16 1.616 3.232 4.848 6.464 6500 16.4125 1.64125 3.2825 4.92375...
Page 194 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance (in feet) Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A 2300 9.2368 0.92368 1.84736 2.77104 3.69472 2400 9.6384 0.96384 1.92768 2.89152 3.85536 2500 10.04 1.004 2.008 3.012...
Page 195 Taktis Fire Alarm Control Panel Installation Manual Voltage Drop Length Resistance (in feet) Ω @ 0.1 A @ 0.2 A @ 0.3 A @ 0.4 A 5300 21.2848 2.12848 4.25696 6.38544 8.51392 5400 21.6864 2.16864 4.33728 6.50592 8.67456 5500 22.088 2.2088 4.4176 6.6264...
Page 196 Taktis Fire Alarm Control Panel Installation Manual Determining the Total Load Current The following example demonstrates the process for determining the total load current of the Taktis Fire Alarm Control Panel: 1. Identify the current draw of each device on the circuit connection.
Page 197 Taktis Fire Alarm Control Panel Installation Manual Determining the Standby Battery Capacity This section provides guidelines for determining the standby battery rating. For power supply applications that do not include fire alarm equipment, alarm current is the dynamic current present during operation of the power supply.
Page 198 Taktis Fire Alarm Control Panel Installation Manual 14. Determine the minimum required amp hour capacity of the standby battery by multiplying the combined Amp hours with the 1.2 de-rating factor. 15. Select a battery with a capacity rating equal or greater than the minimum required amp hour capacity determined from this calculation.
Page 199 Taktis Fire Alarm Control Panel Installation Manual Standby Alarm Category Instruction Current Current Amp Hours Standby Battery Amp Hour Capacity Multiply the combined amp hours with the de-rating factor of 1.2 Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual...
Page 200 Taktis Fire Alarm Control Panel Installation Manual Supervising Station Requirements for Combination Systems Due to system constraints, the use of a supervising station is required when the Taktis panel is used for providing Carbon Monoxide detection. Kentec Electronics Ltd UL Version 1.04 | May 2020 | MAN-1431KE Taktis Fire Alarm Control Panel Installation Manual...
Page 201 Taktis Fire Alarm Control Panel Installation Manual Class B 38, 60, 81, 136 INDEX Class X 30, 66, 89 Communication Modules 154 0V 45, 60, 91, 100 Current Limits 173 10.25 18, 112, 129, 154, 173 DC Out On 26, 116...
Page 202 Taktis Fire Alarm Control Panel Installation Manual Prog Routing Output 47, 62, 141 IDC 86, 96, 156 SLC 14, 37, 58, 86, 96, 135, 173 Slot C 80 J1 24 Slot D 85 Slot E 86 Keyswitch 160 Slot F 87 Standby Batteries 17, 108, 113, 122, 129, 173 Lamp &...

Kentec Electronics Taktis Installation Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kentec Electronics Taktis

Summary of Contents for Kentec Electronics Taktis

Table of Contents
