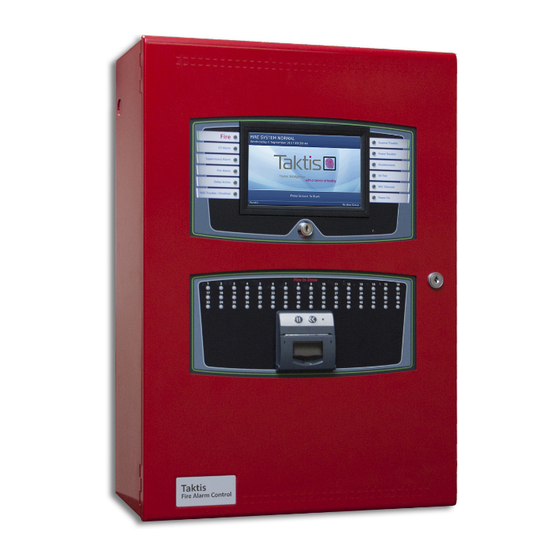

Kentec Electronics Taktis Operation Manual
Fire alarm control panel
Hide thumbs
Also See for Taktis:
- Operating instructions manual (17 pages) ,
- Quick start manual (17 pages) ,
- Installation manual (202 pages)
Subscribe to Our Youtube Channel
Related Manuals for Kentec Electronics Taktis
Summary of Contents for Kentec Electronics Taktis

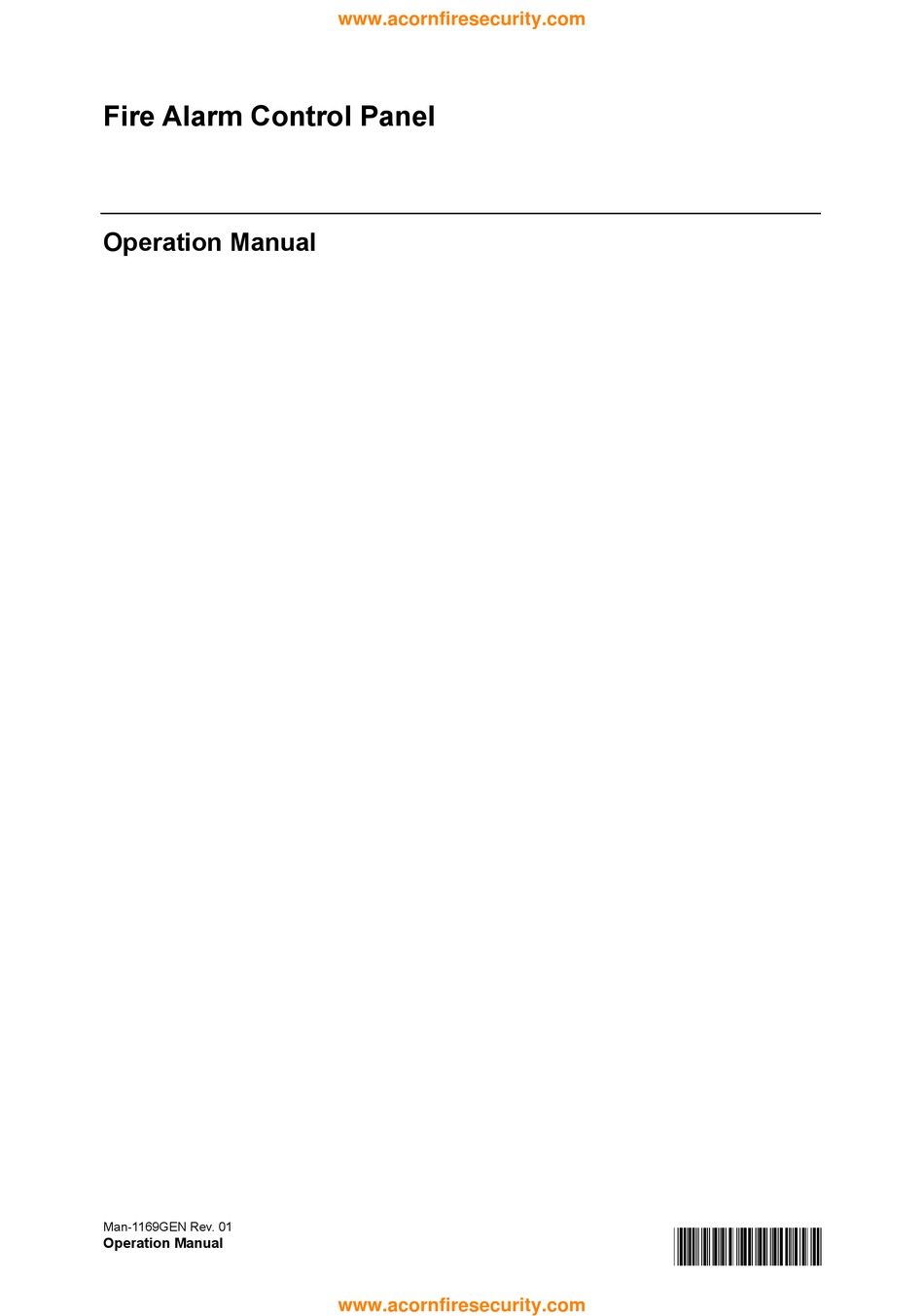

- Page 1 www.acornfiresecurity.com Fire Alarm Control Panel Operation Manual Man-1169GEN Rev. 01 *Man-1169* Operation Manual www.acornfiresecurity.com...
-
Page 2: Table Of Contents
www.acornfiresecurity.com Contents i Section 1 Controlling the System 1 Left Indicators..............................1 Right Indicators ............................. 2 User Access Levels............................2 No User Group .............................. 2 Access Level 2 .............................. 2 Indications & Controls ........................... 3 Key Level 2 ..............................3 Controls................................. -
Page 3: Controlling The System
www.acornfiresecurity.com Controlling the System 1 Section 1 Controlling the System The system has an indicator panel either side of the touch screen display to advise the user of the status of the sys- tem, a touch screen display to give the user detailed information and Zone indicators (if fitted) below the main dis- play. -
Page 4: Right Indicators
www.acornfiresecurity.com Controlling the System 1 Right Indicators Indicator Colour Description Fire Routing On This red indicator will illuminate (constant) when a Fire condition has been signalled to others (Configuration option). Fire Routing Yellow This yellow indicator will flash when there is a fault on the monitored circuit to the Fault / Disabled Fire Routing equipment. -
Page 5: Indications & Controls
www.acornfiresecurity.com Controlling the System 1 Indications & Controls Once the user has logged in through the touch screen display, the text in the bottom right of the display changes from “No User Group” to “Access Level 2” Key Level 2 Level 2 can also be gained through the Front Panel Keyswitch. -
Page 6: Controlling A Fire Condition
www.acornfiresecurity.com Controlling a Fire Condition 2 Section 2 Controlling a Fire Condition Access Level 2 / Key Level 2 The FACP is operating in access level 2 when ei- ther Access level 2 or Key Level 2 is visible on the bottom-right of the touch screen display. - Page 7 www.acornfiresecurity.com Controlling a Fire Condition 2 Press the “Reset System” button on the touch screen display. After the ‘Reset’ has completed the system will return the user back to the ‘Fire System Normal’ screen. The system should not be left logged-in, press the touch screen display to get back into the system and then press the “Logout”...
- Page 8 www.acornfiresecurity.com Controlling a Fire Condition 2 Man-1169GEN Rev.01 Operation Manual www.acornfiresecurity.com...
-
Page 9: Navigating The User Controls
www.acornfiresecurity.com Navigating the User Controls 3 Section 3 Navigating the User Controls To access User Controls press the press “User Controls” button on the top right of the touch screen display. this will show a range of buttons that allow the user to perform a number of functions. The buttons shown will depend upon the configuration. -
Page 10: Disable /Re-Enable Zones
www.acornfiresecurity.com Navigating the User Controls 3 Disable /Re-Enable Zones Perform this operation to disable / enable zones on the FACP. To disable zones on the FACP; Press “Disable Zones” button on the Fire system Normal window. Press the empty box adjacent to the Disabled Zone(s) on the Fire System Normal window. Press “Details View”... -
Page 11: Disable / Re-Enable All Sounders
www.acornfiresecurity.com Navigating the User Controls 3 To Disable by Loop: 17. Press “Loop X” button. Where X is the required loop number from1 (up to) 16. 18. The number of options displayed will depend upon the different device types fitted to the loop, the sys- tem will provide options to select by device types fitted or by the “All”... -
Page 12: Disable / Re-Enable All Outputs
www.acornfiresecurity.com Navigating the User Controls 3 Disable / Re-Enable All Outputs Perform this operation to disable / enable all outputs on the FACP. All Outputs on the FACP can be disabled (enabled) as a complete group. Disable / Re-Enable All Plant Outputs Perform this operation to disable / enable all plant outputs on the FACP. -
Page 13: View Event Log
www.acornfiresecurity.com Navigating the User Controls 3 33. Press the “X Zones in Test” button on the top navigation bar (where X is the number of zones in test). 34. Test all required zones. 35. Press “More Details” button to see additional information. 36. -
Page 14: View Devices
www.acornfiresecurity.com Navigating the User Controls 3 View Devices Perform this operation to view the status of any loop device. The user can find the device they wish to view by Loop (1-16) or Zone, then by device type (multiple devices types can be selected) or all the devices on the loop or Zone. -
Page 15: Notifying The Emergency Contact
www.acornfiresecurity.com Notifying the Emergency Contact 4 Section 4 Notifying the Emergency Contact Contact Form Name Company Primary Telephone Secondary Telephone Mobile Phone Address Man-1169GEN Rev.01 Operation Manual www.acornfiresecurity.com...
