Configuration
4. Configuration
4.1. Anybus Configuration Manager
The data exchange between the interfaces in the Anybus X-gateway is configured using the Windows-based
configuration tool Anybus Configuration Manager, which can be downloaded from www.anybus.com/support.

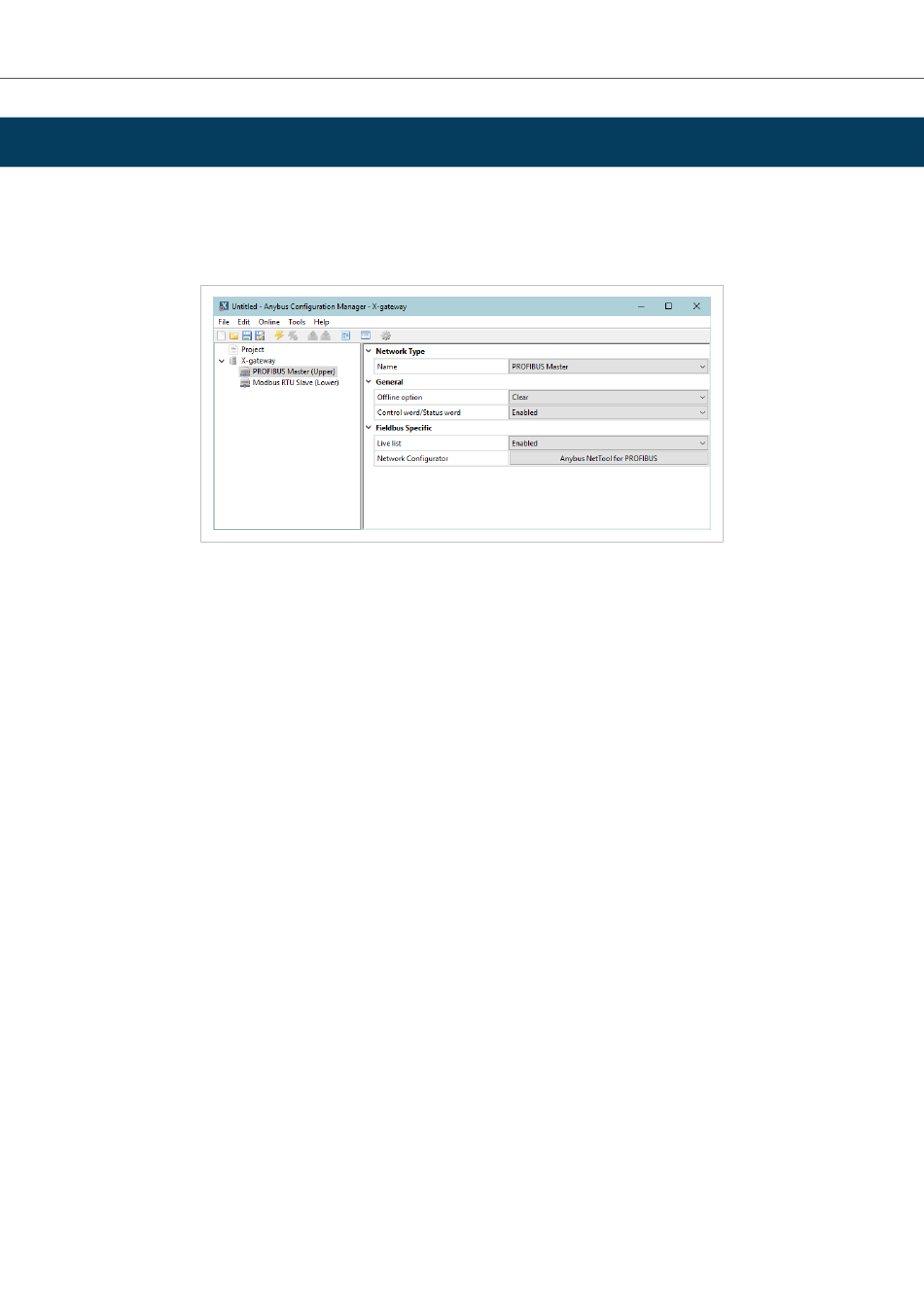

Figure 4. Anybus Configuration Manager
General Settings
Offline option
Control word/Status word
Fieldbus Specific Settings
Live list
Network Configurator
4.2. Live List
The Live List holds bit coded status information for PROFIBUS slaves 0-63.
A set bit indicates that the corresponding slave is in data transfer, a cleared bit indicates that the slave is not
exchanging data.
Note that the master exchanges data with slaves 64 ... 125 even though the slaves are not represented in the Live
List.
SCM-1202-104 Version 1.1
The action to perform if the network goes offline. The gateway can either
freeze (keep the current value) or clear (set to zero) the data from the
offline network.
Enables/disables representation of the Control/Status word.
Enables/disables the Live List.
If Anybus NetTool for PROFIBUS is installed it can be launched by clicking here.
®
™
Anybus
X-gateway
PROFIBUS Master Interface
Page 7 of 10
