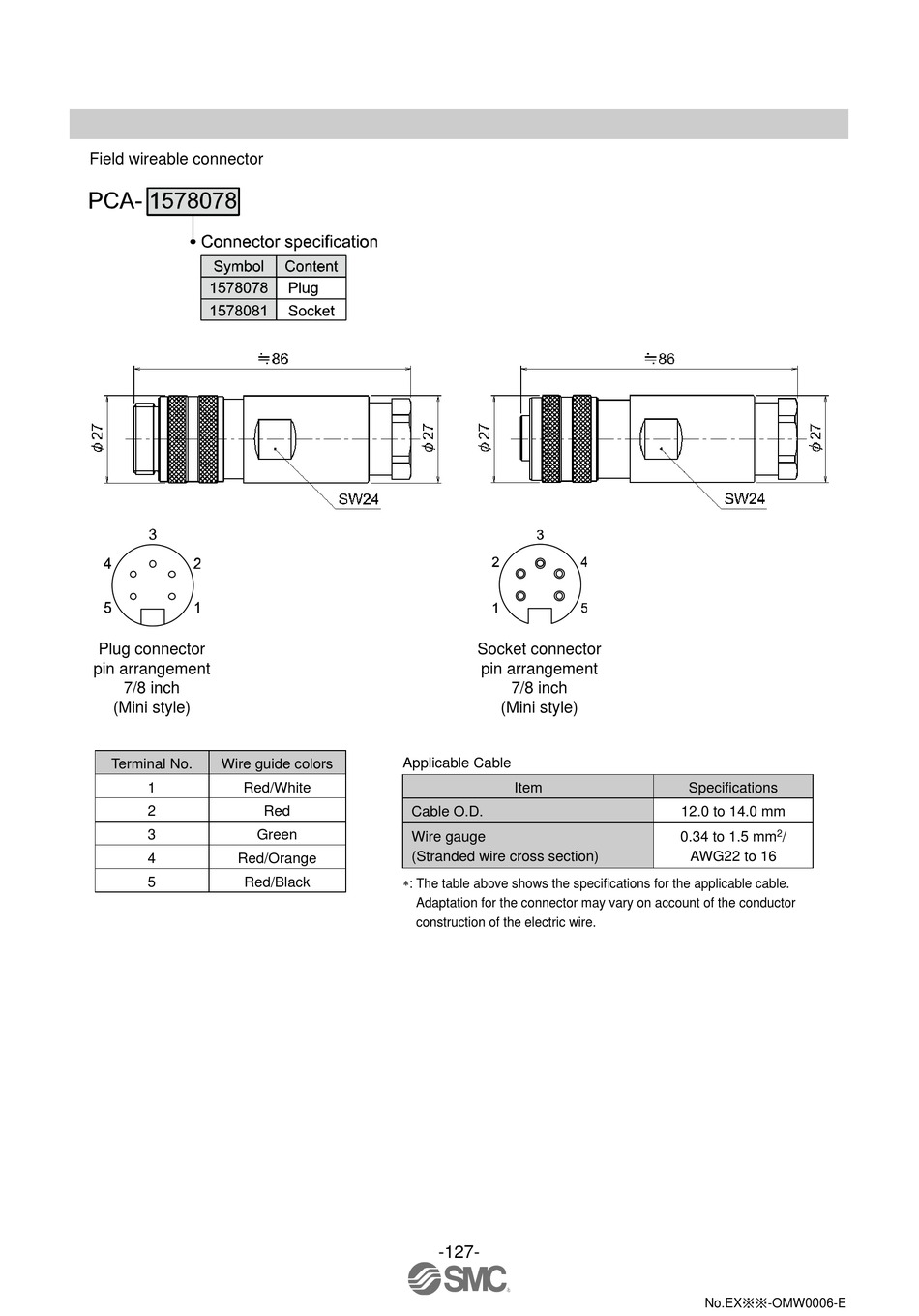

Field wireable connector
Plug connector
pin arrangement
7/8 inch
(Mini style)
Terminal No. Wire guide colors
1 Red/White
2
3 Green
4 Red/Orange
5 Red/Black
Applicable Cable
Red Cable O.D.
Wire gauge
(Stranded wire cross section)
: The table above shows the specifications for the applicable cable.
Adaptation for the connector may vary on account of the conductor
construction of the electric wire.
Socket connector
pin arrangement
7/8 inch
(Mini style)
Item
-127-
Specifications
12.0 to 14.0 mm
2
0.34 to 1.5 mm /
AWG22 to 16
