HighPoint SSD6540M Quick Installation Manual

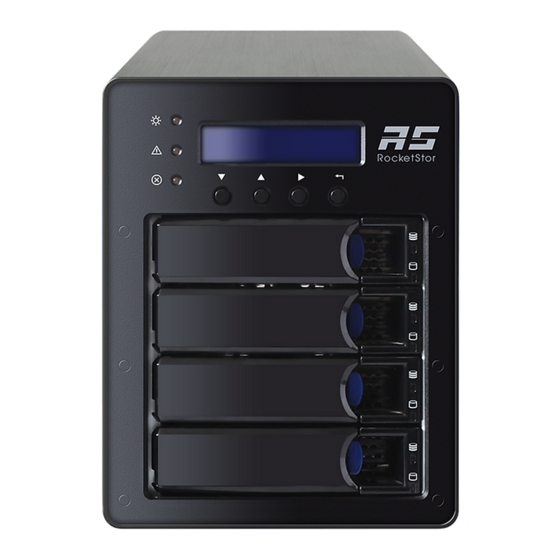

4-bay m.2 nvme raid enclosure
Hide thumbs Also See for SSD6540M:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

SSD6540M
4-Bay M.2 NVMe RAID Enclosure
Quick Installation Guide
V1.05
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSD6540M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HighPoint SSD6540M

Summary of Contents for HighPoint SSD6540M

  • Page 1 SSD6540M 4-Bay M.2 NVMe RAID Enclosure Quick Installation Guide V1.05...
  • Page 2 PCIe 3.0 x16 slot. In addition, M.2 SSD’s hosted by the SSD6540M can be installed into any M.2 capable SSD7100 series RAID controller; your array and data...

  • Page 3: Kit Contents

    1x PCIe 3.0 x16 RAID Controller  4x Drive Trays  4x M.2 Drive to U.2 Host Adapter  2x HD mini-SAS cable (1 meter)  1x UL Power Cord  1x Quick Installation Guide  SSD6540M Hardware Controller Card Back Port: SFF-8644...
  • Page 4 Panel Layout-Front View Disk Present LED: Solid Blue Disk Active LED: Flash Blue Disk Fail LED: Solid Red Enclosure Power LED: Solid Blue Temperature Warning LED: Solid Yellow Fan/Temperature Fail LED: Solid Red...
  • Page 5 Panel Layout-Rear View M.2 Drive to U.2 Host Adapter and Tray...

  • Page 6: System Requirements

    10.13.6 ~ macOS 13.x • Enclosure Setup Place the SSD6540M enclosure on a level surface and remove each disk trays. Unscrew and remove the ‘M.2 to U.2 Adapter’ from the disk tray. Insert the NVMe M.2 SSD into ‘M.2 to U.2 Adapter’.
  • Page 7 Carefully insert the ‘M.2 to U.2 Adapter’ into the disk tray and secure it with the provided mounting screws. Connect the SSD6540M enclosure to the Controller Card using the HD mini-SAS cable. The channel of the RAID Controller is displayed as follows: Install the Controller card into a motherboard PCIe slot (PCIe 3.0...
  • Page 8 Connect the SSD6540M enclosure to a power source. With the power cord connected to the power supply and mini-SAS cable connected to the Controller Card and enclosure, press the power button on the rear panel to turn on the SSD6540M.

  • Page 9: Customer Support

    Customer Support If you encounter any problems while utilizing the SSD6540M, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department or check our FAQ for more information. Web Support: https://www.highpoint-tech.com/support-and-services...
