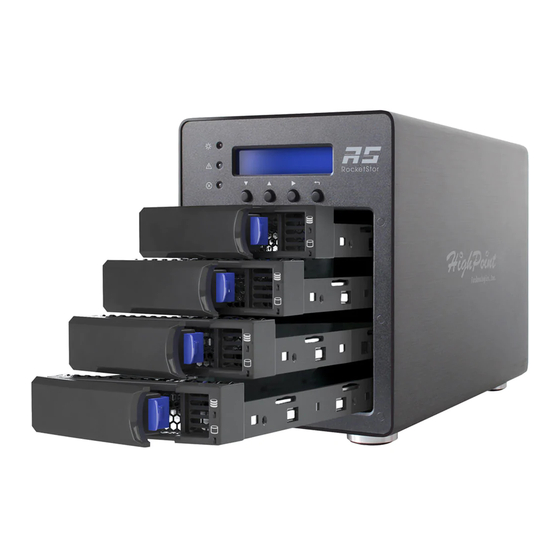

HighPoint SSD6540M Quick Installation Manual
4-bay m.2 nvme raid enclosure
Hide thumbs
Also See for SSD6540M:
- User manual (36 pages) ,
- Quick installation manual (9 pages) ,
- Installation manual (28 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HighPoint SSD6540M
Summary of Contents for HighPoint SSD6540M
- Page 1 SSD6540M 4-Bay M.2 NVMe RAID Enclosure Quick Installation Guide V1.03...
- Page 2 PCIe 3.0 x16 slot. In addition, M.2 SSD’s hosted by the SSD6540M can be installed into any M.2 capable SSD7100 series RAID controller; your array...
-
Page 3: Kit Contents
1x PCIe 3.0 x16 RAID Controller 4x Drive Trays 4x M.2 to U.2 Adapters 2x HD mini-SAS cables (1 meter) 1x UL Power Cord 1x Quick Installation Guide SSD6540M Hardware Controller Card Back Port: SFF-8644... - Page 4 Panel Layout-Front View Disk Present LED: Solid Blue Disk Active LED: Flash Blue Disk Fail LED: Solid Red Enclosure Power LED: Solid Blue Temperature Warning LED: Solid Yellow Fan/Temperature Fail LED: Solid Red...
- Page 5 Panel Layout-Rear View M.2 to U.2 Adapter and Tray M.2 to U.2 Adapter...
-
Page 6: System Requirements
Linux Kernel 3.10 or later Enclosure Setup Place the SSD6540M enclosure on a level surface and remove each disk tray. Unscrew and remove the ‘M.2 to U.2 Adapter’ from the disk tray. Insert the NVMe M.2 SSD into ‘M.2 to U.2 Adapter’... - Page 7 Connect the SSD6540M enclosure to the Controller Card using the HD mini-SAS cable. Install the Controller card into a motherboard PCIe slot (PCIe 3.0 x16 is required for maximum performance). Connect the SSD6540M enclosure to a power source. With the power cord connected to the power supply and...
- Page 8 Resources A variety of manuals, guides and FAQ’s are available for the SSD6540M NVMe RAID enclosure. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. Software Download: Driver, WebGUI, & Installation Guides https://highpoint-tech.com/USA_new/series-ssd6540m-download.htm...
- Page 9 Customer Support If you encounter any problems while utilizing the SSD6540M, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: http://www.highpoint-tech.com/websupport/ HighPoint Technologies, Inc. websites: http://www.highpoint-tech.com...
