- Page 1 SSD6444M 4-Bay U.2/U.3/M.2 NVMe RAID Enclosure Quick Installation Guide V1.00...
-
Page 2: System Requirements

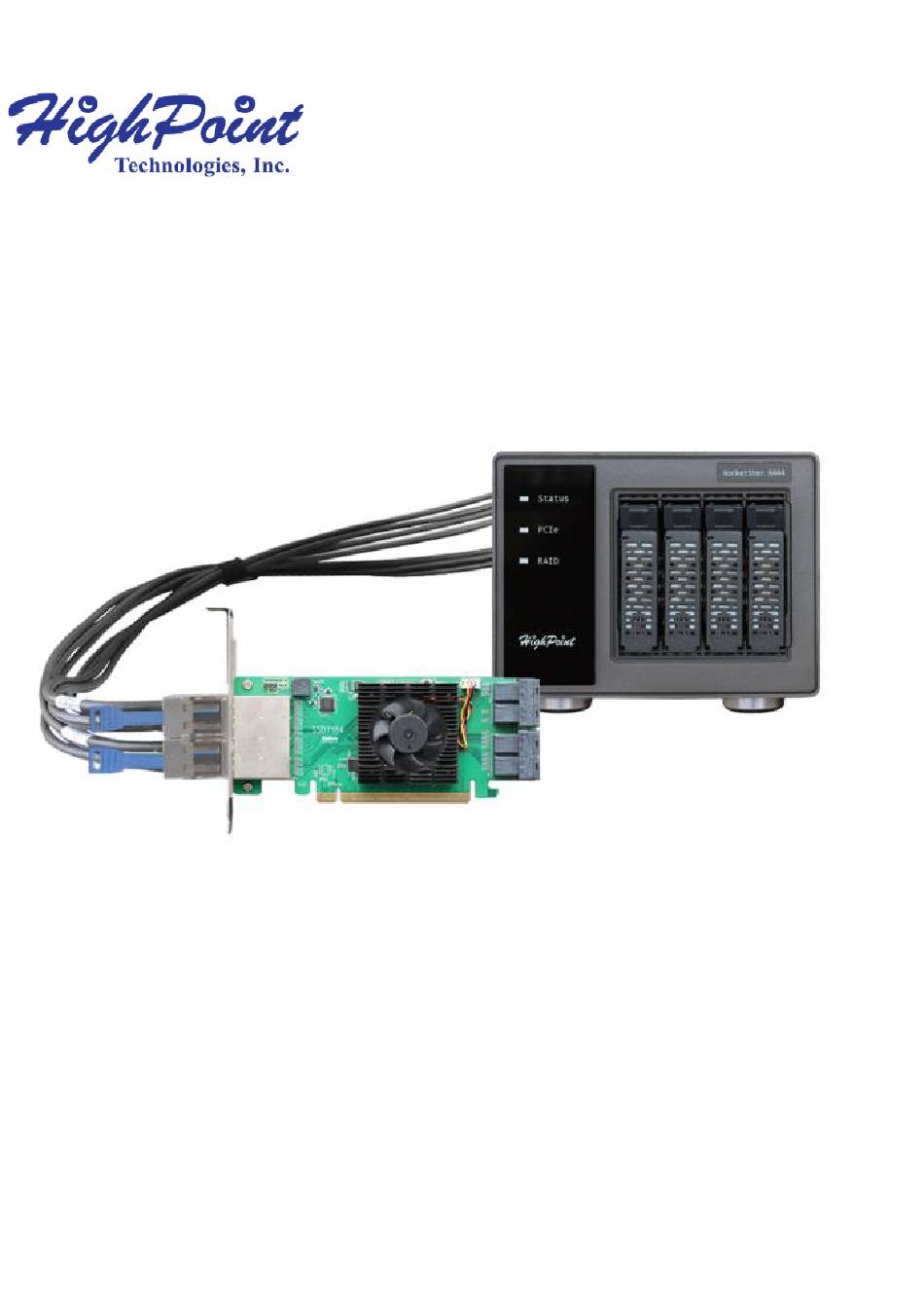

SSD6444M Overview The SSD6444M is a compact, high-performance NVMe storage solution for PC and Mac platforms. Each of the 4 drive bays features dedicated PCIe 3.0 x4 bus bandwidth to ensure each NVMe SSD operates at peak performance. Any PC or Mac platform with a free, dedicated PCIe 3.0 /4.0 x16 slot can now experience the true performance capabilities of... -
Page 3: Kit Contents
• 4x U.2 to M.2 Trays • 1x UL Power Cord • 20x 2.5" SSD mounting screws • 1x Quick Installation Guide • 1x Low Profile Bracket SSD6444M Hardware Controller card NVMe HBA SFF-8644 Connector PCIe 3.0 x16 Host Interface... - Page 4 Enclosure Panel Layout-Front View Status LED Tray LED HighPoint logo LED HighPoint logo LED Solid Blue：Power on Status LED Solid Blue：Normal status Solid Red：The temperature exceeds the Critical Threshold Flash Red：The fan speed is lower than the Critical Threshold Flash Yellow：The temperature exceeds the Warning Threshold or the...
- Page 5 Enclosure Panel Layout-Rear View Ethernet Mute Button SFF-8644 Connector OOB Port Power Switch Kensington Lock Slot AC Power IN Kensington Lock Slot: Optional slot for Kensington Lock Power Switch: Enclosure power switch Mute Button: Mute the internal enclosure alarm buzzer Ethernet：Can be used monitor the SSD6444 via an internet connection 4x SFF-8644 Connector: SFF-8644 cable connector for the NVMe...
- Page 6 OOB Port (out-of-band): Implements the virtual serial port function, through which you can obtain the network IP address AC Power IN: Connects to the AC power cord Disk Tray For 2.5 inch device U.2 to M.2 Tray...
- Page 7 SSD6444M Hardware Installation Insert the NVMe M.2 SSD into the ‘M.2 to U.2 Adapter’. Note1: Please make sure the M.2 connectors (“golden fingers”) are clean before installation. Dust/debris or fingerprints may lead to connection/stability issues. Note2: Make sure the SSDs are carefully, but securely installed into each M.2 port.
- Page 8 Place the Enclosure on a level surface and load each disk tray. SFF-8644 to SFF-8644 cable connects to the SFF-8644 connector on the left side of the NVMe HBA. The other end of the SFF-8644 to SFF-8644 connects to the Enclosure’s SFF-8644 connector as illustrated below (a to a, and b to b), the Enclosure connects to M.2 NVMe, and connect to AC power.
- Page 9 Channel/ Port assignment: 1 2 3 4...
- Page 10 ’s Connect the SSD6444M into the PCIe 3.0/4.0 x16 slot of the motherboard; Make sure the NVMe SSDs are installed prior to powering on and Note: using the enclosure! Optional Certified Cable & Controller Accessories Device Cables SFF-8644 to SFF-8644 cable...
- Page 11 Resources A variety of manuals, guides and FAQs are available for the SSD6444M RAID controller. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. Software Download: https://www.highpoint-tech.com/nvme-2/ssd6444m Certified Accessories: https://www.highpoint-tech.com/nvme-accessories FAQ & Troubleshooting:...
-
Page 12: Customer Support
Customer Support If you encounter any problems while utilizing the SSD6444M, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department or check our FAQ for more information. Web Support: https://www.highpoint-tech.com/support-and-services...
