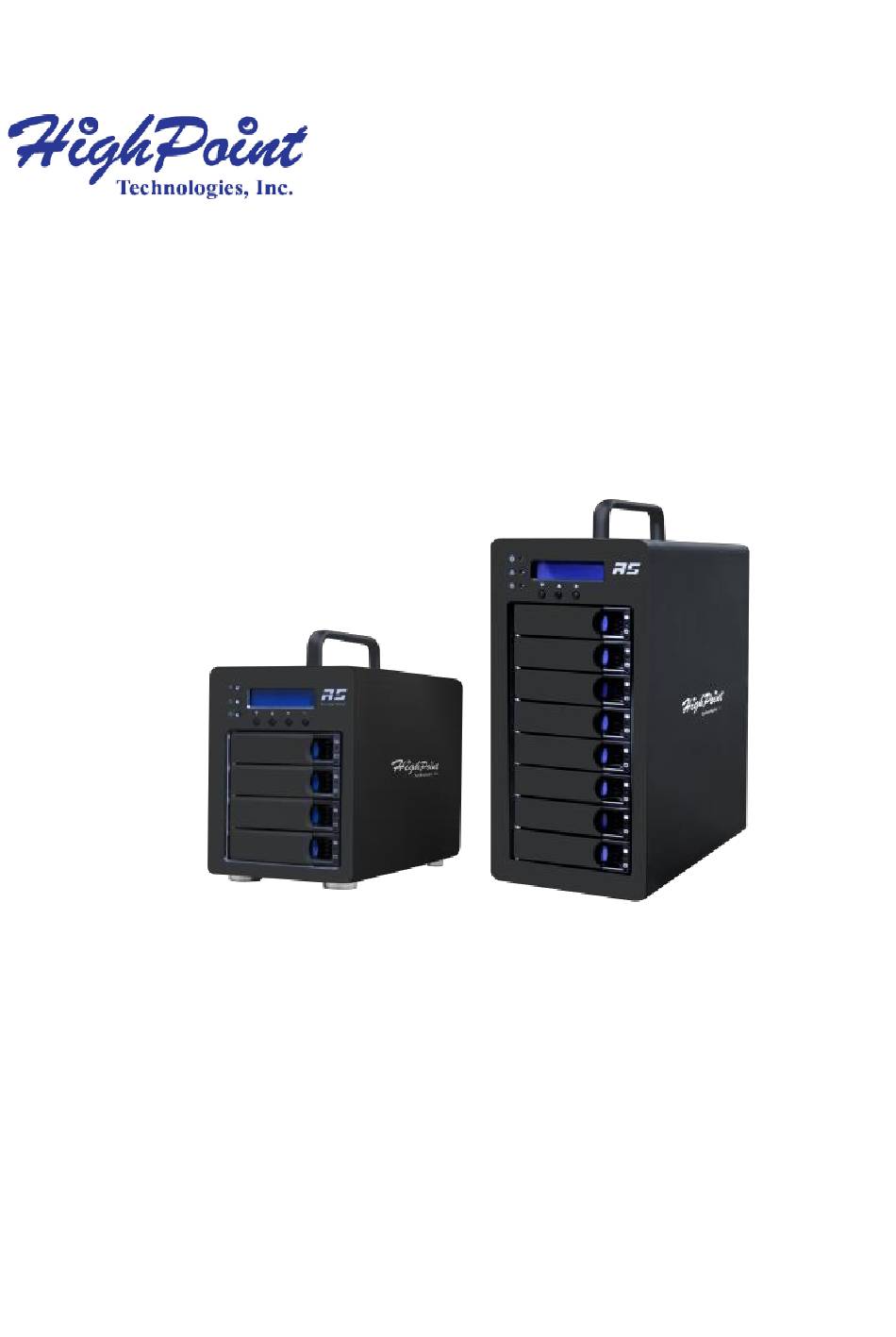

- Page 1 RocketStor 6434S/6438S 4-bay / 8-bay SAS/SATA Hot-Swappable Tower Enclosure Quick Installation Guide V1.00...
- Page 2 RocketStor 6434S/6438S Overview The RocketStor 6434S and 6438S are stylish, high-quality storage tower enclosures that feature external 12Gb/s Mini-SAS ports and removable hot-swap bays which support any 2.5" or 3.5" SAS/SATA Drive or SSD of your choice. The enclosure features built in LEDs and an audible alarm that quickly notify administrators in the case of hardware failure or environmental warning such as power loss or overheating.
- Page 3 40x 2.5" SSD mounting screws • 1x UL Power Cord • 1x Quick Installation Guide RocketStor 6434S Kit Contents • 1x RocketStor 6434S Tower Enclosure • 4x Drive Trays • 20x 3.5" HDD mounting screws • 20x 2.5" SSD mounting screws •...
- Page 4 RocketStor 6434S/6438S Hardware Front View RS6438S RS6434S...
- Page 5 RocketStor 6434S/6438S Panel Layout Take RocketStor 6438S as an example Power LED LED display Warning LED Navigation keys Fail LED Disk Active LED Disk Present LED Disk Present LED: Solid Blue Disk Active LED: Flash Blue Power LED: Solid Blue (Normal Status) Warning LED: Flash Yellow.
- Page 6 Power Switch Kensington Lock Slot Power supply cooling exhaust vent AC Power Input Mute Button Body cooling exhaust vent 2x SFF-8644 Mini-SAS connector Power Switch: Enclosure power switch AC Power Input: Connecting AC power cord Mute Button: Mute the internal enclosure alarm buzzer 2x SFF-8644 Mini-SAS Connector: SFF-8644 cable connector for HBA connection Kensington Lock Slot: Use a computer lock through the keyhole to...
- Page 7 Disk Tray For 2.5-inch disk For 3.5-inch disk...
-
Page 8: Required Accessories
Required Accessories The certified cable is available directly from HighPoint and our authorized resellers. For more information, please contact our Sales Department (sales@highpoint-tech.com). 1. RocketStor 6434S/6438S is used in conjunction with the RocketRAID 3742A. We only recommend you use official HighPoint RAID HBAs, like the RocketRAID 3742A, as they have been certified to work with our enclosures. - Page 9 Optional Certified Cable & Controller Accessories Device Cables SFF-8644 to SFF-8644 cable 8644-HSAS-110 Length: 1M SFF-8644 to SFF-8088 12Gb/s 8644-8088-1M1 SAS cable Length: 1M RAID controller (External – for use with the RR3742A) With 8x Internal & 8x External channels Thunderbolt™...
- Page 10 Thunderbolt™ 3 40Gb/s Ports, RocketStor 6661A Support Mac & PC platform...
- Page 11 A variety of manuals, guides and FAQs are available for RocketStor 6434S/6438S. In addition, we recommend visiting the Software Downloads webpage for the management interfaces, and installation guides. Software Download: Installation Guide, HDD & SSD Compatibility Lists: https://www.highpoint-tech.com/rs6430ts-overview Certified Accessories: https://www.highpoint-tech.com/rr-accessories https://www.highpoint-tech.com/rr3700-overview FAQ & Troubleshooting: https://www.highpoint-tech.com/support-and-services...
-
Page 12: Customer Support
If you encounter any problems while utilizing the RocketStor 6434S/6438S, or have any questions about HighPoint Technologies, Inc. products & solutions, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com © Copyright 2022 HighPoint Technologies, Inc. All rights reserved.
