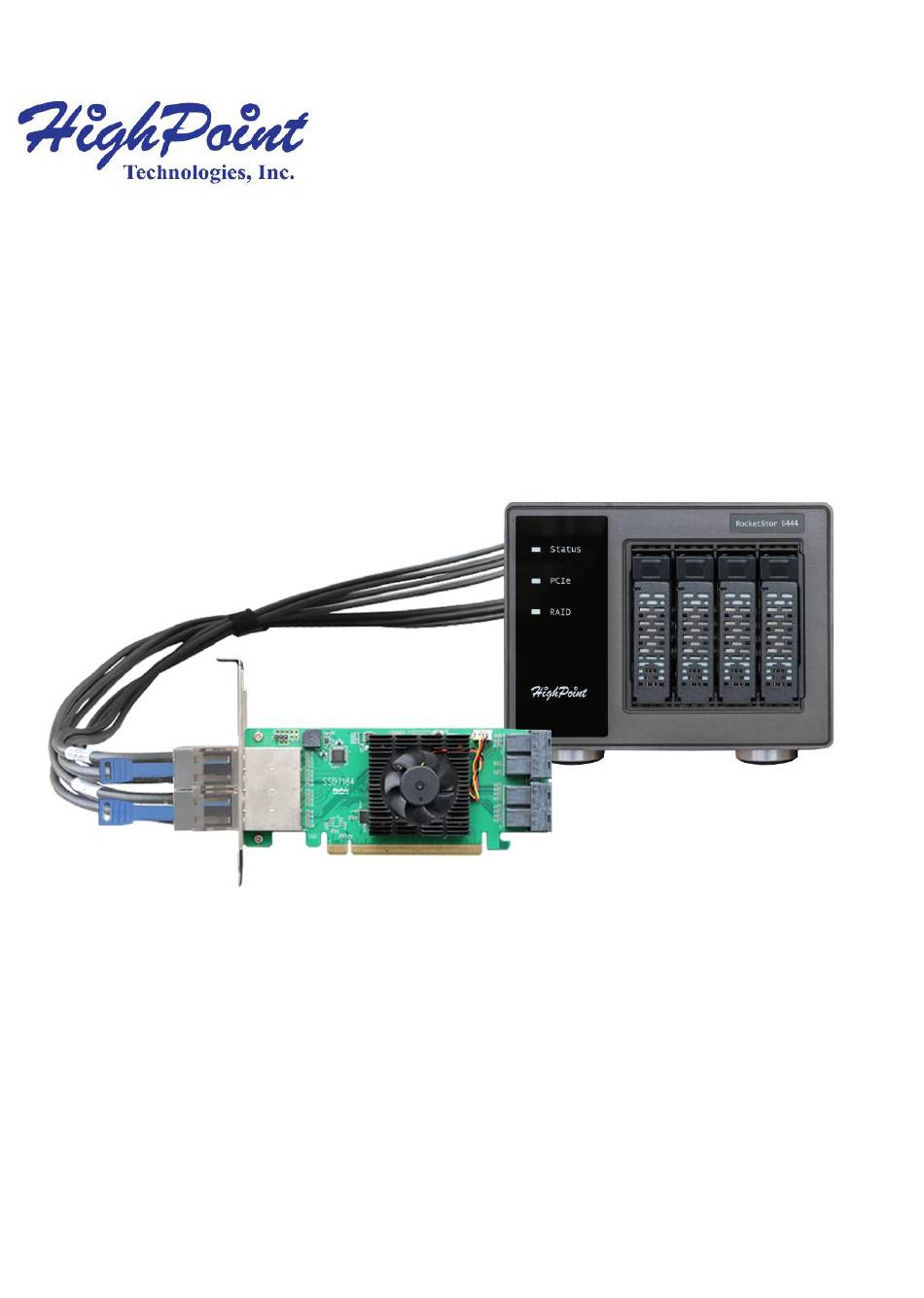

- Page 1 SSD6444A 4-Bay U.2 NVMe RAID Enclosure Quick Installation Guide V1.00...
- Page 2 SSD6444A Overview The SSD6444A is a compact, high-performance NVMe RAID storage solution for PC and Mac platforms. Each 4 drive bays features dedicated PCIe 3.0 x4 bus bandwidth to ensure each NVMe SSD operates at peak performance. Any PC or Mac platform with a free, dedicated PCIe 3.0/4.0 x16 slot can now experience the true...
-
Page 3: Kit Contents
1x PCIe 3.0 x16 RAID Controller 2x Mini-SAS 8644-8644-220 cables 1x UL Power Cord 20x 2.5" SSD mounting screws 1x Low Profile Bracket 1x Quick Installation Guide SSD6444A Hardware Controller card PCIe 3.0 x16 Host Interface SFF-8644 Connector... - Page 4 Enclosure Panel Layout-Front View Status LED Tray LED HighPoint logo LED Status LED Solid Blue: The fan speed and enclosure temperature are normal. Solid Red: The enclosure temperature has exceeded the critical threshold. Flash Red: The fan speed has dropped below the critical threshold.
- Page 5 No light: The disk is undetected, or the disk adapter (U.2 to M.2) LED is not responding. Solid Blue: The disk is detected. Flash Blue: The disk is doing I/O. Solid Red: The disk has failed. Enclosure Panel Layout-Rear View Ethernet Mute Button SFF-8644 Connector...
- Page 6 Power Switch: Enclosure power switch Mute Button: Mute the internal enclosure alarm buzzer Ethernet: Can be used to monitor the SSD6444A via an internet connection 4x SFF-8644 Connector: SFF-8644 cable connector for the controller card connection ...
- Page 7 SSD6444A Hardware Installation The SFF-8644 to SFF-8644 cable connects to the SFF-8644 connector on the left side of the controller card. The other end of the SFF-8644 to SFF-8644 connects to the Enclosure SFF-8644 connector as illustrated below (a to a, and b to b).
- Page 8 Channel/ Port assignment: 1 2 3 4 Connect the SSD6444A’s controller card to the motherboard's PCIe 3.0/4.0 x16 slot. Note: Make sure the NVMe SSDs are installed before powering on and using the enclosure!
-
Page 9: Customer Support
Resources Various manuals, guides, and FAQs are available for the SSD6444A. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. Software Download: https://www.highpoint-tech.com/nvme1/ssd6444 FAQ & Troubleshooting: https://www.highpoint-tech.com/support-and-services Customer Support If you encounter any problems while utilizing the...
