eXact PipeCut 360 system Operating Instructions Manual

Hide thumbs Also See for PipeCut 360 system:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Operating Instructions
EN
5-16
patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PipeCut 360 system and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for eXact PipeCut 360 system

Summary of Contents for eXact PipeCut 360 system

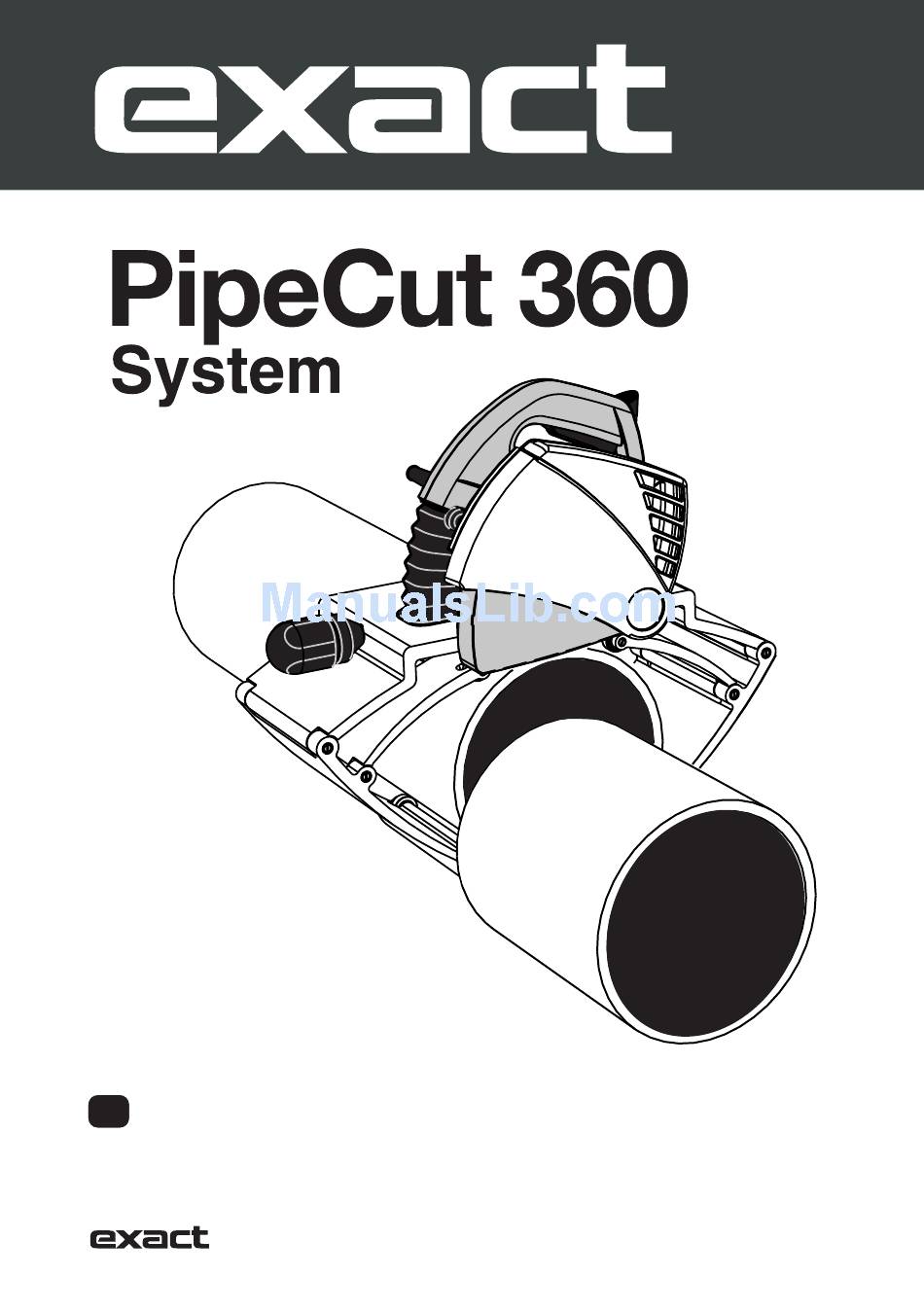

  • Page 1 Operating Instructions 5-16 patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113...
  • Page 2 Exact PipeCut 200 System Blade information for Exact PipeCut saws TCT (tungsten carbide tip) saw blades are for cutting steel, copper, aluminium and all kind of plastics. TCT blades can be sharpened. Cermet (ceramic alloy tip) saw blades are for cutting stainless steel, acid proof materials, steel, copper, aluminium and all kind of plastics.

  • Page 4: Declaration Of Conformity

    EN60745 according to the provisions of the directives 2004/108/EC, 2006/42/EC. For more information, please contact Exact Tools at the following address. The technical file is available at the address underneath.

  • Page 5: Table Of Contents

    Contents e n g l i s h Contents Technical data Package contents Safety Safety instructions Operation Functional description Product features Before operating the tool Connection to the mains power supply Precise setting of the cutting point Setting the pipe on supports Attaching the pipe saw to the pipe Piercing the pipe wall Sawing around a pipe...

  • Page 6: Technical Data

    Also store this instruction book somewhere accessible to everyone using the pipe saw. In addition to these instructions, always follow the official work, health and safety regulations. The Exact PipeCut is meant for professional use only.

  • Page 7: Package Contents

    Package contents: Please check the package contains the following items : 1. Pipecutting System case 2. Exact PipeCut 200 pipe saw 3. Cutting holder and supporting holders x2 4. Operating instructions 5. Hex socket key 5 mm and 2 mm fitted to the machine 6.

  • Page 8: Safety

    Safety e n g l i s h General power tool safety or under the influence of drugs, alcohol or medication. A moment of inattention while warnings operating power tools may result in serious personal injury. WARNING: Read all safety warnings and b) Use personal protective equipment.
  • Page 9 Safety e n g l i s h d) Store idle power tools out of the reach of g) When blade is binding, or when interrupting children and do not allow persons unfamiliar a cut for any reason, release the trigger and operate the power tool.

  • Page 10: Functional Description

    Safety e n g l i s h Functional Description s) Secure the workpiece. A workpiece supported by pipe holders is held more secure than by Read all safety warnings and all hand. instructions. Failure to follow the warnings t) Always wait until the machine has come to and instructions may result in electric a complete stop before placing it down.

  • Page 11: Before Operating The Tool

    Operation e n g l i s h Exact PipeCut 360 Fig C pipecutting system operating instructions Before operating the tool Ensure that the motor unit is in the upright position. The yellow mark of the UNLOCK button is visible.

  • Page 12: Attaching The Pipe Saw To The Pipe

    Operation e n g l i s h Attaching the pipe saw to the pipe Fig E Open the pipe saw's gripper unit enough to suit the diameter of the pipe by rotating the adjustment handle located at the rear of the saw (Fig. E/1). Position the pipe saw on top of the pipe so that the edge of the lower blade guard is at the cutting mark.

  • Page 13: Overload Protection

    Operation e n g l i s h Fig J Select the sawing speed as per the material and the thickness of the wall. Too high speed can damage the blade, overload the pipe saw and give a poor sawing result. When the pipe is cut off, push the UNLOCK button forward until the yellow mark is visible and the locking is released (Fig L/1).

  • Page 14: Installing And Changing The Saw Blade

    Operation, maintenance e n g l i s h The wheel can be adjusted in 9 positions; mid position and 4 steps to left and right. To adjust the wheel, loosen the locking screw (Fig N/1) and turn the Fig N wheel center clockwise or counterclockwise to the desired position (Fig N/2), and lock the wheel again (Fig N/3).
  • Page 15 Guarantee Blade guard When you have sawn plastic pipes and then intend If the Exact PipeCut 360 pipe saw becomes unusable to start sawing metal pipes always clean the inside due to material or manufacturing faults within 24 of the blade guards. Hot particles derived from...
  • Page 16 Tips e n g l i s h Tips for using Exact PipeCut Factors that affect the lifetime of the saw blade: saws • material of the pipe • correct blade type for material being cut • correct motor speed setting (model 170E) Diamond blade should only be used for cutting cast •...
