Danfoss iC7 Series Installation Manual page 8

In-bottom/Out-top Cooling Kit for FA09-FA10
Installation Guide
275 (10.8)
208 (8.2)
203 (8.0)
64 (2.5)
45 (1.8)
0.0

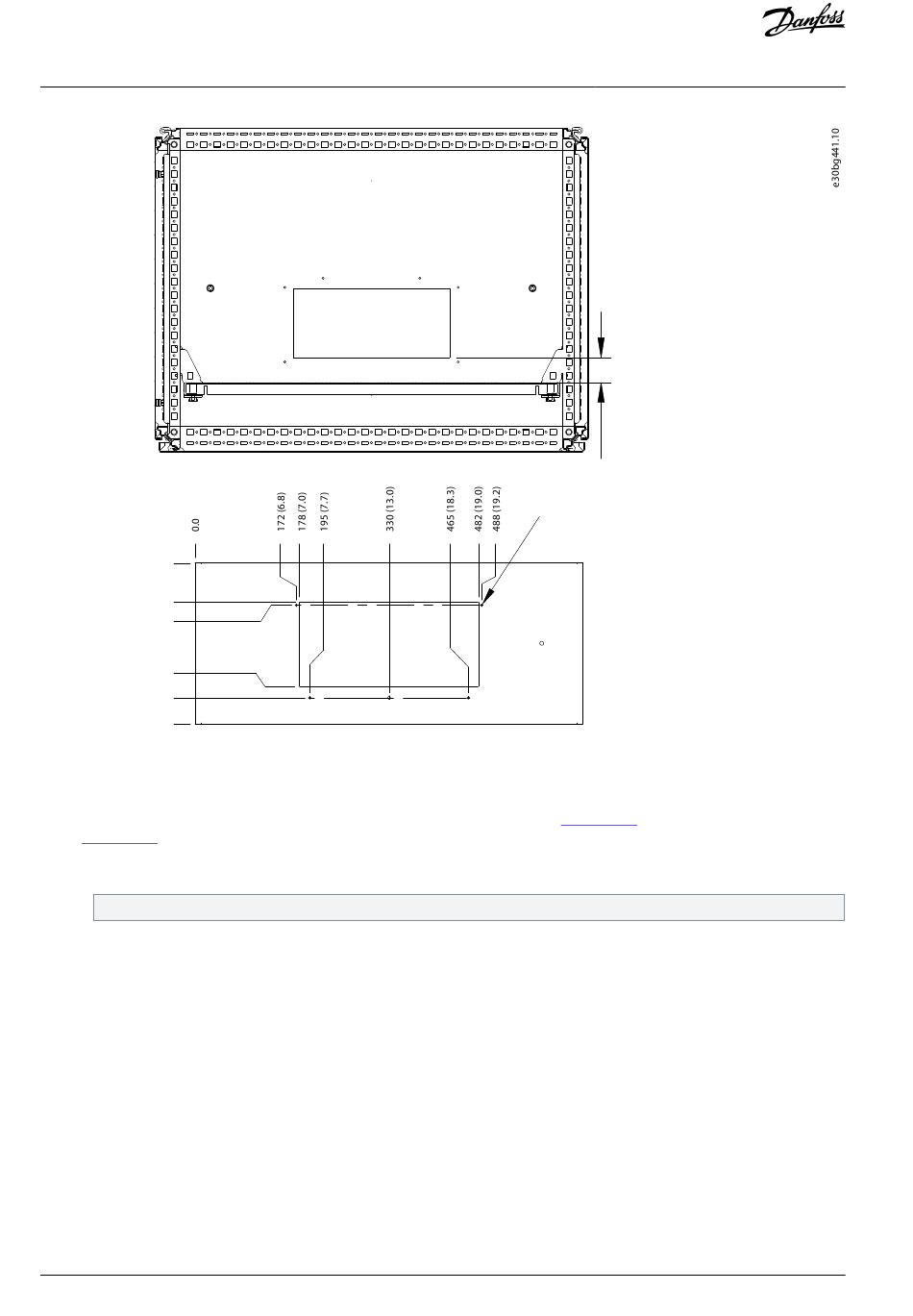

Illustration 6: FA10 Base Plate Template
2.5 Preparing the Mounting Plate
To create holes in the mounting plate, use the following steps. Use the dimensions in
and in Illustration 8 for FA10 frequency converters.
Procedure
1.
Drill 4 holes in the mounting plate using the dimensions in the template.
The mounting holes must match the holes in the frequency converter.
8 | Danfoss A/S © 2022.03
46 (1.8)
5x Ø 4 (0.2)
Illustration 7 for FA09 frequency converters,
AN371942791357en-000101 / 136R0254
Installation
