Danfoss iC7 Series Installation Manual page 14

In-bottom/Out-top Cooling Kit for FA09-FA10
Installation Guide
5. Extend the duct upward and fasten with 6 M5 hex nuts, securing it to the duct support plate.
1
2
3
4

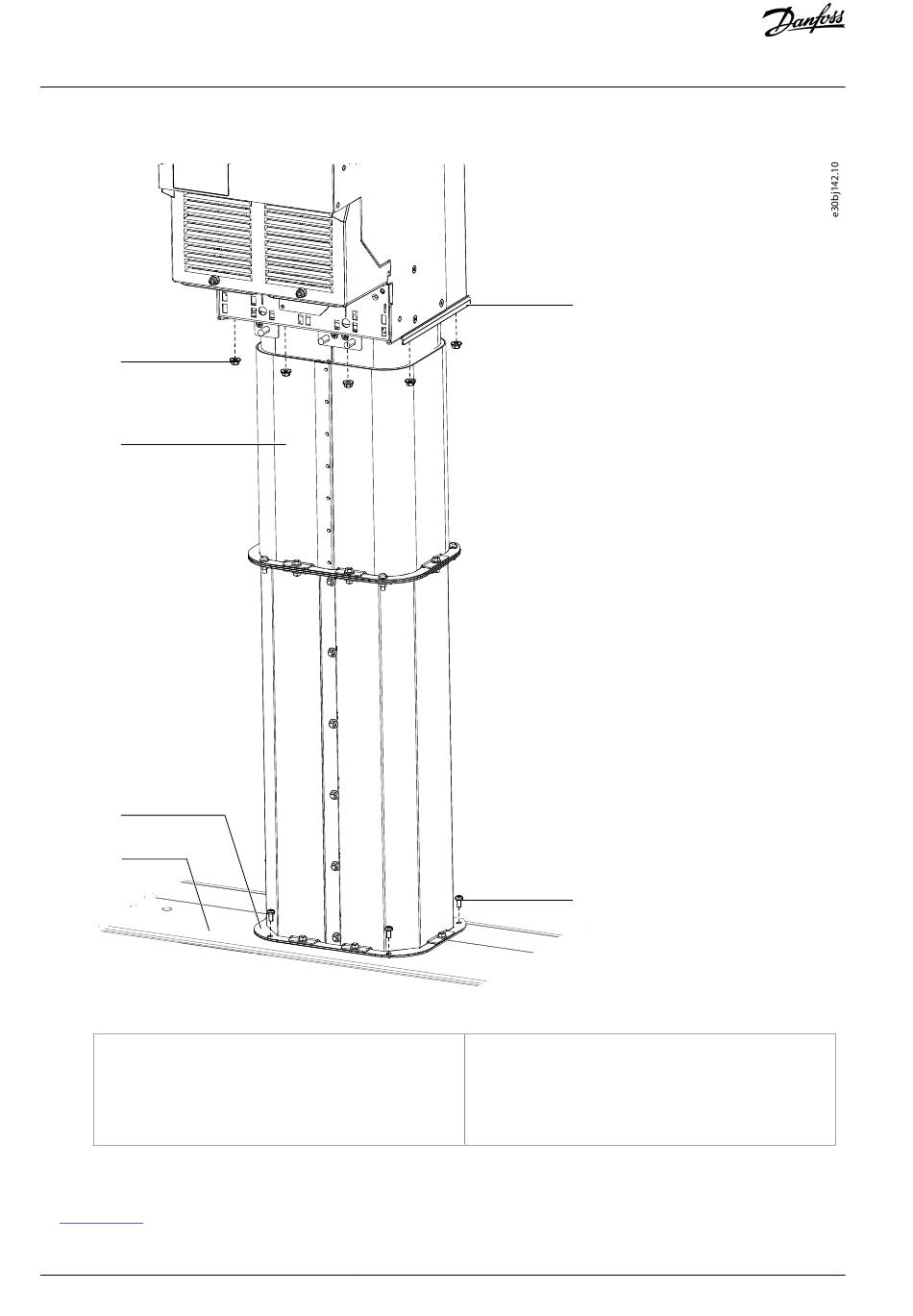

Illustration 12: Installation of the Bottom Duct
1 M5 hex nut
2 Bottom telescopic duct
3 M5x16 screw
2.10 Installing the Top Duct
Attach the top telescopic duct between the top of the frequency converter and the cabinet using the following steps. Refer
to .Illustration 13 (The top plate of the cabinet is removed from the illustration for visibility of parts).
Procedure
14 | Danfoss A/S © 2022.03
5
6
4 Base plate
5 Duct support plate
6 Lower flange of duct
AN371942791357en-000101 / 136R0254
Installation
