1.4 ELECTRICAL & DATA CONNECTION

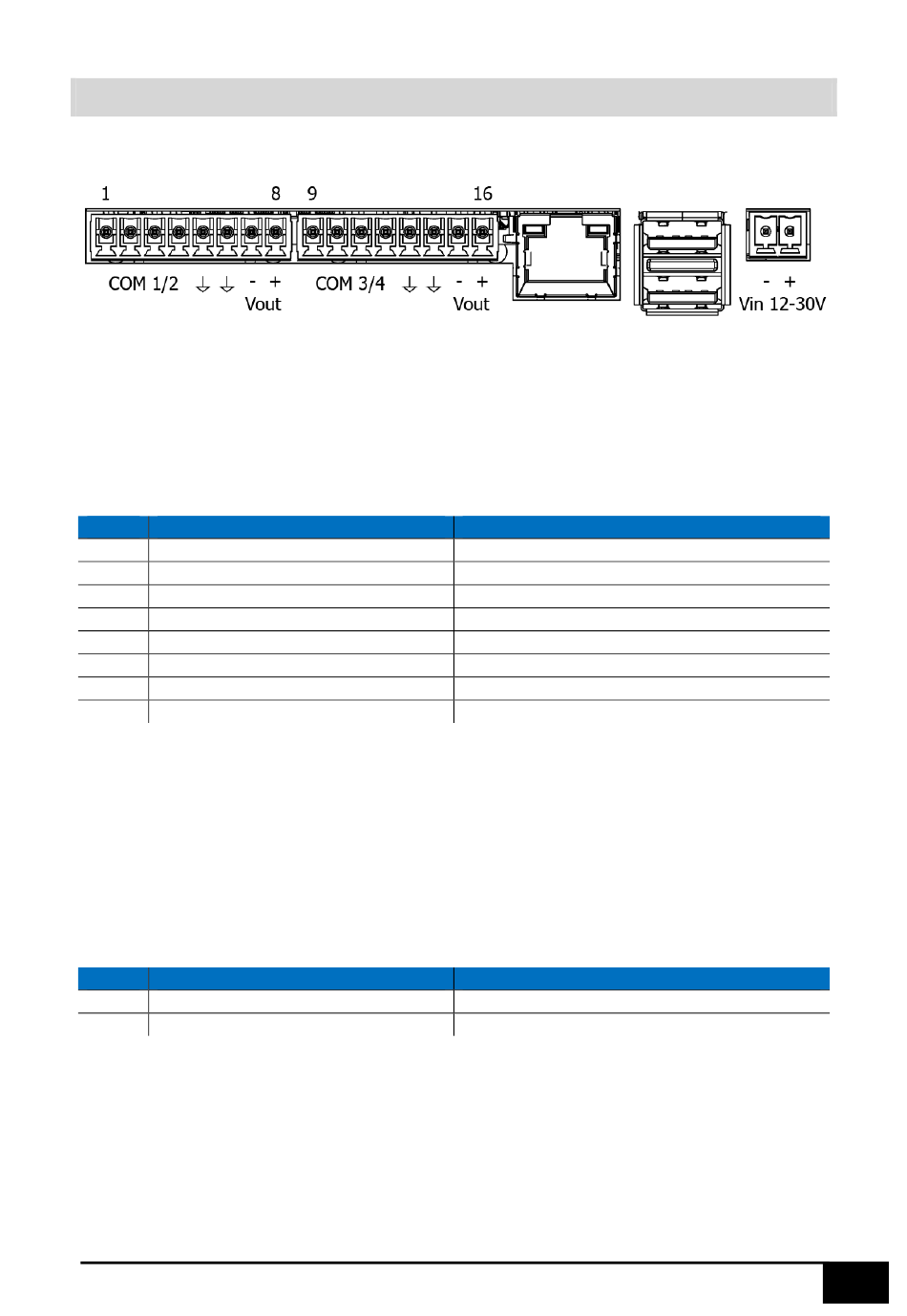

The underside of the display has several connectors.
2 x 8 pin data connection, phoenix style terminal blocks
1 x RJ45 Ethernet
1 x USB for external devices
1 x USB acting as a service port
1 x 2 pin DC power, terminal block
Starting from left
8 Pin terminal connectors
Pin Terminal function
1 & 9 Serial
2 & 10 Serial
3 & 11 Serial
4 & 12 Serial
5 & 13 Signal Ground
6 & 14 Signal Ground
7 & 15 VDC - Output
8 & 16 VDC+ Output
RJ45 connector
The RJ45 connector is a 10/100mbit type used for system remote access and ethernet
communication with the Panel Display. The RJ45 can be set to static mode or to DHCP
USB Connector
The top USB connector can be used to connect external devices for expansion, as for example USB to
serial ports.
The bottom USB connector is used as a service port and for software updates
2 Pin terminal connector
Pin Terminal function
7 & 15 VDC - Input
8 & 16 VDC+ Input
Refer to the tables in the Connecting a device section below for the position of the power and data
wire connections for each communication protocol operating mode, RS232, RS422 and RS485.
SMC-1310 User Guide revision 1.1
Details
Setting dependable, see below tables
Setting dependable, see below tables
Setting dependable, see below tables
Setting dependable, see below tables
Power output 12...24 VDC for instrument
Power output 12...24 VDC for instrument
Details
Power Input 12...24 VDC
Power Input 12...24 VDC
