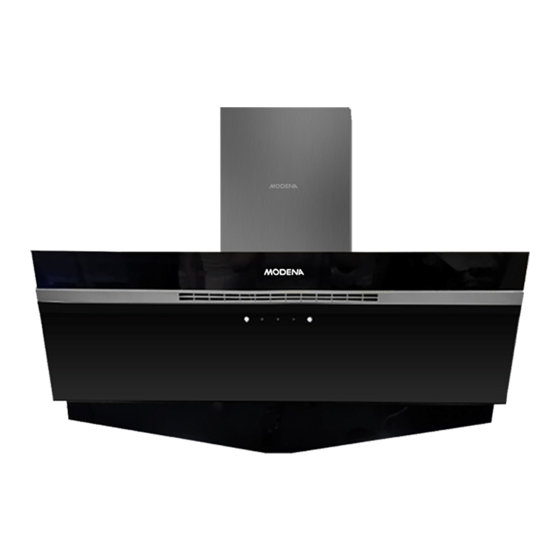

Modena CX 9761 User Manual Book
  1. Manuals
  2. Brands
  3. Modena Manuals
  4. Ventilation Hood
  5. CX 9761
  6. User manual book

Modena CX 9761 User Manual Book

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User
Manual Book
Hood
CX 9761

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CX 9761 and is the answer not in the manual?

Questions and answers

Related Manuals for Modena CX 9761

Summary of Contents for Modena CX 9761

  • Page 1 User Manual Book Hood CX 9761...

  • Page 2: Table Of Contents

    Contents Part 1: Important Safety Information Electrical Shock Hazards Part 2: Name Of Parts Part 3: Installation Installation Precaution Installation Diagram Part 4: How To Use Part 5: Maintenance Cleaning The Cabinet Cleaning The Filter Aluminum Filter Carbon Filter Changing The Light Bulb Part 6: Problem And Solution Part 7: Precaution Part 8: Specification...

  • Page 3: Part 1: Important Safety Information

    If there is damage to the power cord, the replacement must be performed by qualified personnel or contact the MODENA Service Center for replacement process. • The room should have good ventilation during the use of exhaust hood on gas stoves or other fuels.

  • Page 4: Electrical Shock Hazards

    Electrical Shock Hazards • Connect the unit only to a grounded power socket correctly. If you are in doubt, ask advice from an experienced technician who is suitably qualified. • The failure to follow these instructions may cause electric shock, fire, or other hazards that are fatal.

  • Page 5: Part 2: Name Of Parts

    PART 2: NAME OF PARTS 1. Control Panel 2. Glass 3. Stripe 4. Main chimney 5. Upper chimney 6. Charcoal filter...

  • Page 6: Part 3: Installation

    PART 3: INSTALLATION Determine the location: According to the product model, refer to the installation diagram, and mark the corresponding position on the wall. The installation position shown in the figure in installation diagram. 2. Install the hanging plate: in the horizontal position with the marked height, drill a hole with a diameter of ∅10mm and a depth of about 50mm in the corresponding position on the wall according to the corresponding illustration or the hole position of the hanging plate...

  • Page 7: Installation Precaution

    Installation Precaution • Only professionally trained and qualified installers can install this range hood. • If your kitchen is being decorated, then do not expose the cooker hood to avoid corrosion and tarnishing of the cooker hood surface. • When handling and installing the range hood, please do not carry the glass and the front panel by hand, otherwise the glass may break or loosen.

  • Page 8: Installation Diagram

    Installation Diagram Hanging Panel Air Outlet Screw Gasket Outlet Base...

  • Page 9: Part 4: How To Use

    PART 4: HOW TO USE Cooling Fast speed Low/middle Light On/off function speed After the power is turned on, all the indicator lights are displayed. After about 1 seconds, the indicator lights are off, then the system enters the somatosensory standby state. On / off key: When this key is touched in the off state, entering the standby state and waiting for other key operations.
  • Page 10 controlled independently, it can be turned off by manual shutdown) 5. Cooling function key: In any state, touch this key to turn on the Cooling function. 6. Gesture Motion Sensor: Wave your hand from left to right to turn on the cooker hood. The cooker hood will start to operate with high fan speed and LED light will turn on.

  • Page 11: Part 5: Maintenance

    PART 5: MAINTENANCE MODENA exhaust hood specifically designed for a long term use so that it does not require complicated maintenance. However, there are some things that are recommended to take care of your exhaust hood so that the quality is maintained.

  • Page 12: Carbon Filter

    Carbon Filter Carbon filter must be replaced with a new one at least once every 4 months or when the carbon filter is no longer capable to absorb the cooking odor. • Remove the aluminum filter first. • Remove the carbon filter by pulling the hook (for square- shaped filter) or rotating it (for round –...

  • Page 13: Part 6: Problem And Solution

    PART 6: PROBLEM AND SOLUTION Problem Possible Cause Recommended Action Poor contact between plug Repair or replace and socket The light is not on and Power line is open Replace the power cord the motor does not rotate Fuse blown Replace the fuse Wait until the power is recovered No power...
  • Page 14 Impeller damaged or missing Replace impeller balance weight Installation height is too high Adjust to the suitable height Reduce air convection or Kitchen air convection is too moderately open doors and tight or tight windows Suction power is weak Air duct is too long and turns Install as required too much Too much wind outdoors...

  • Page 15: Part 7: Precaution

    If you smell burnt / burnt smell from the hood, immediately turn ● off the hood and contact the MODENA Service Center. Perform a routine service on your stove every 3 (three) months, ●...

  • Page 16: Part 8: Specification

    PART 8: SPECIFICATION Model CX 9761 Chimney - Wall Type Cabinet Material tempered glass Diamond black Front Panel Color 1 Turbo Motor 2 LED Lamp Fan Speed Ionizer (Germinator) Aluminum Filter + Carbon Filter Type Filter Touch Botton Control Panel 220 –...
  • Page 18 05/21...
