LOGIQ 7/LOGIQ 7 Pro Quick Guide

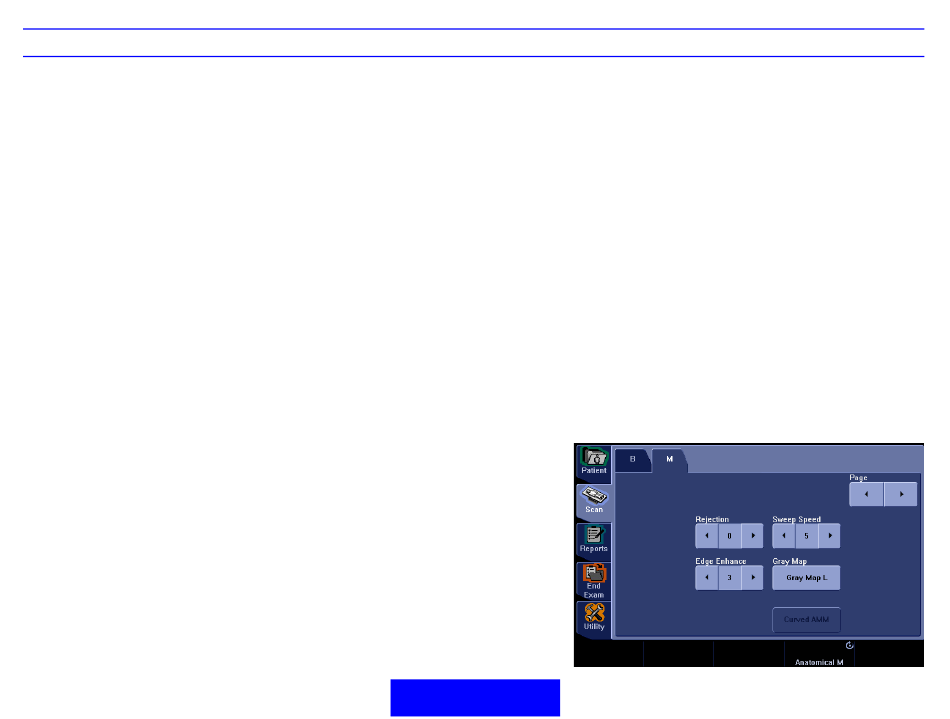

B/M-Mode Image Optimize (continued)
Anatomical M-Mode
Allows you to rotate or move the M line in order to image
difficult-to-reach anatomy.
Curved Anatomical M-Mode (CAMM)
Displays a distance/time plot from a free-drawn cursor
line.
Sweep Speed
Changes the speed at which the timeline is swept.
Full Timeline
Expands display to full timeline display.
Display Format
Changes the horizontal/vertical display layout between B-
Mode and M-Mode.
B-Flow (Option)
Provides a more intuitive representation of non-
quantitative hemodynamics in vascular structures.
Sensitivity/PRI: Adjusts the sample rate for the flow
signal.
Background On/Off: Background On views the
anatomy roadmap; Background Off views flow
information only.
Direction 5307393-100 Rev. 1
B/M-Mode Control Panel Controls
Auto Optimize
Automatic Tissue Optimization optimizes the image
based upon a specified Region of Interest (ROI) or
anatomy within the display.
Zoom
Magnifies a zoom region of interest, which is magnified to
approximately the size of a full-sized image. An un-
zoomed reference image is displayed adjacent to the
zoom window. The system adjusts all imaging parameters
accordingly. Press to activate/deactivate; rotate to
increase/decrease zoom factor. Use the Trackball to
position the Zoom ROI.
Reverse
Flips the image left/right. The GE symbol flips
accordingly.
Multi Image
Press L to activate Multi Image; press R/L to toggle
between live image.
B/M Mode Scanning Hints
Auto Optimize. Improves imaging
performance while reducing optimization
time.
Coded Harmonics. Enhances near field
resolution for improved small parts and
OB/GYN imaging as well as far field
penetration.
B/M Mode
Image Optimize
Frequency. Changes system parameters to best
optimize for a particular patient type.
Maps. There is an inter-dependency between gray maps,
gain, and dynamic range. If you change a map, revisit
gain and dynamic range settings.
Dynamic Range. Affects the amount of gray scale
information displayed.
Edge Enhance. Better delineates the amount of border
sharpness.
Frame Average. Smooths the image by averaging
frames. Affects the amount of speckle reduction.
8
