LOGIQ 7/LOGIQ 7 Pro Quick Guide

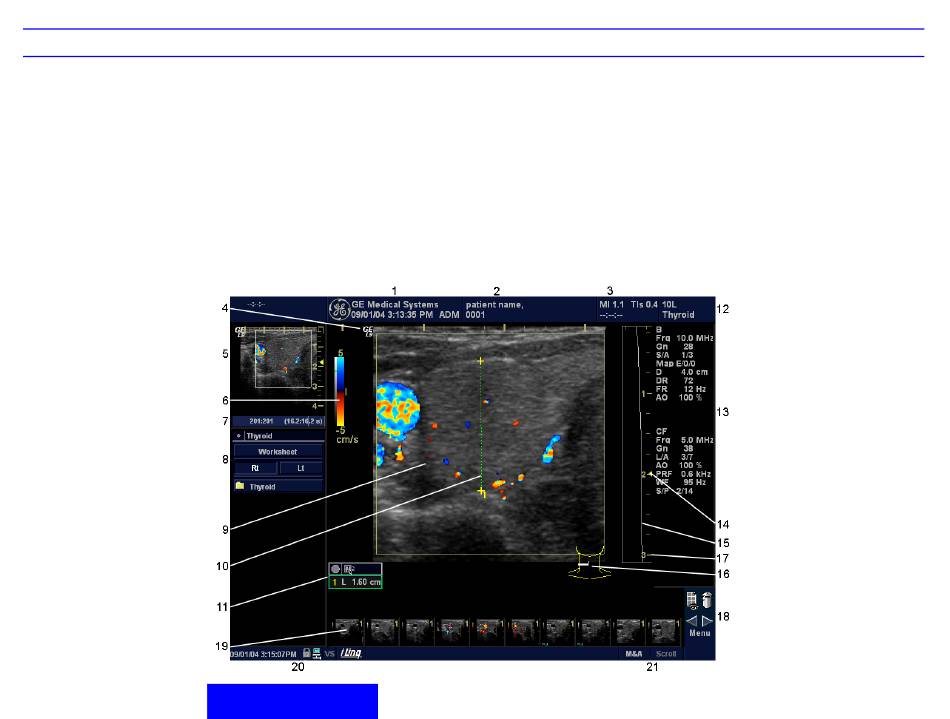

LOGIQ 7/LOGIQ 7 Pro Monitor Display Tour
1. Institution/Hospital Name, Date, Time, Operator
Identification.
2. Patient Name, Patient Identification.
3. Acoustic Output Readout
4. GE Symbol (Probe Orientation Marker). The symbol
is reversed on flipped images.
5. Image Preview, zoom reference box.
6. Gray/Color Bar.
7. Cine Gauge. CINE frame/Total # of CINE frames (28/
51), Frame time/total loop time.
8. Measurement Summary Window.
9. Image.
Direction 5307393-100 Rev. 1
10. Measurement.
11. Measurement Results Window.
12. Probe Identifier. Exam Study.
13. Imaging Parameters by Mode.
14. Focal Zone.
15. TGC.
16. Body Pattern.
17. Depth Scale.
18. Image Management Menu: Active Images, Delete,
Previous/Next Image and Menu.
19. Image Clipboard.
Control Panel/
Touch Panel Tour
20. Current date/time, Caps Lock (lit when on), network
connection indicator (PC=connected, PC with X=not
connected, Human Face (VoiceScan), System
Messages display.
21. Trackball Functionality Status: Scroll,
M&A (Measurement and Analysis), Position, Size,
Scan Area Width and Tilt.
