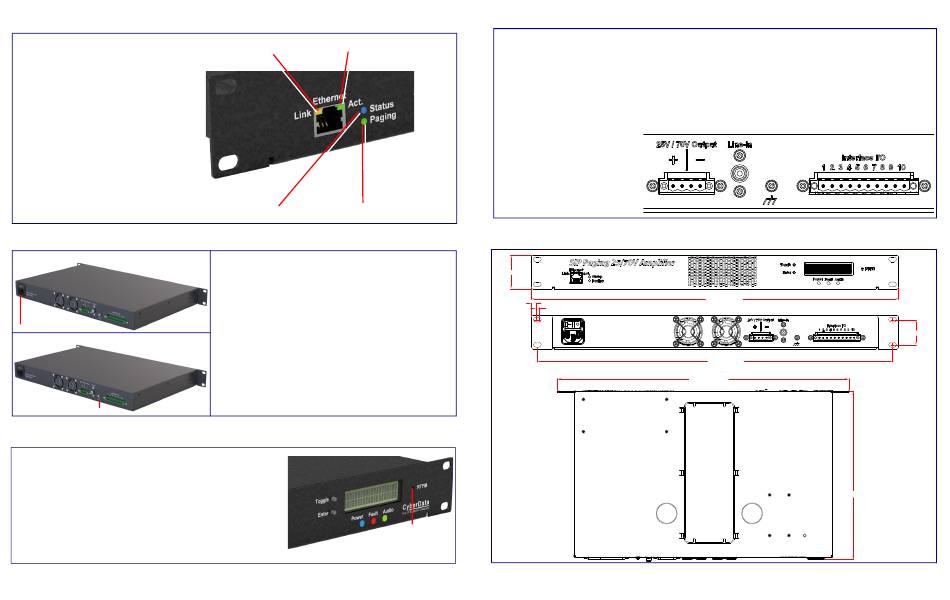

Verifying Operations and Settings
When you apply power, turn ON the Power switch
and connect the Ethernet to a live network:
The square,
YELLOW
Link LED above the
Ethernet port indicates that the network
connection has been established at 100Mbit
speed.
The square,
GREEN
Network Activity LED
above the Ethernet port will blink to indicate
network activity.
The round
GREEN/BLUE
Status LED is BLUE,
indicating power is ON. Once the device is
initialized, the LED will blink
GREEN
at one
second intervals.
The round
GREEN
Paging LED comes on after
the device is booted and initialized. This LED
blinks when a page is in progress. You can
disable Beep on Initialization on the Device
Configuration page.
Setting Up the SIP Paging 25V/70V Amplifier
Power Supply
100-240V AC Power Input
Chassis Ground
Chassis ground
RTFM Switch
To restore the factory default settings:
1. Use a paper clip to press the RTFM button, bringing up the RTFM screen.
2. Use the toggle button to select Speak IP Address or Restore Defaults, and
then Enter to activate.
3. Selecting Restore Defaults will bring up the confirmations screen, where
selecting Enter will restore defaults.
4. The device will announce, "restoring default configuration" and "rebooting."
© 2023, CyberData Corporation, ALL RIGHTS RESERVED
Link
Network Activity
(YELLOW
LED)
(GREEN
LED)
Status
Paging
(GREEN/BLUE
LED)
(GREEN
LED)
To set up the device, connect the device to your network:
Power Supply
Connect the Amplifier to a standard 100-240VAC,
50/60Hz external power supply
Chassis Ground
If required, connect the earth grounding wire to the
Chassis Ground. See the figure on the left.
RTFM Switch
931994A
Quick Reference
Connections
25V/70V Output
Two connections to hook analog speakers up to the amp. The connections accept up to a 12 AWG wire.
Line in
Line level input for background music applications. The expected input level is 2Vpp (2 volts peak to peak voltage).
Interface I/O
1
Fault Sense Input (Common)
2
Fault Sense Input (Sense)
3-4
Reserved
5
Audio Ground Reference
6
Relay Contact - Common
7
Relay Contact - Normally Open
8
Line Level Output (+)
9
Line Level Output (-)
10
Reserved
Dimensions
1.750 [44.45]
0.238 [6.03]
0.150 [3.81]
Quick Reference
Front View
19.000 [482.60]
Rear View
18.375 [466.72]
Dimensions are in Inches [Millimeters]
19.000 [482.60]
Bottom View
10.992 [279.20]
931994A
© 2023, CyberData Corporation, ALL RIGHTS RESERVED
1.300 [33.02]
